Acer Incorporated Acer AT350 F2 | SPECpower_ssj2008 = 2,824 overall ssj_ops/watt | ||||
Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | May 25, 2012 |
Hardware Availability: | May-2012 | Software Availability: | Dec-2011 | Publication: | Aug 8, 2012 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

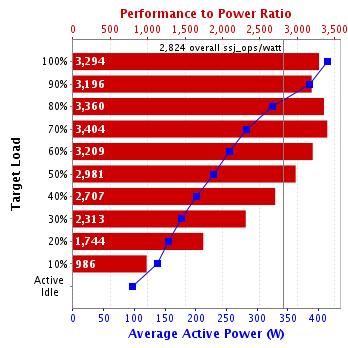

Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 99.8% | 1,365,171 | 414 | 3,294 |
90% | 90.1% | 1,232,312 | 386 | 3,196 |
80% | 79.9% | 1,091,894 | 325 | 3,360 |
70% | 70.3% | 960,656 | 282 | 3,404 |
60% | 59.9% | 819,228 | 255 | 3,209 |
50% | 50.0% | 683,232 | 229 | 2,981 |
40% | 40.0% | 546,751 | 202 | 2,707 |
30% | 29.9% | 408,779 | 177 | 2,313 |
20% | 19.9% | 272,589 | 156 | 1,744 |
10% | 10.0% | 136,349 | 138 | 986 |
Active Idle | 0 | 96.6 | 0 | |
∑ssj_ops / ∑power = | 2,824 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Acer Incorporated |
Model: | Acer AT350 F2 |
Form Factor: | Tower |
CPU Name: | Intel Xeon E5-2665 |
CPU Characteristics: | 8 core, 2.4GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.1GHz) |
CPU Frequency (MHz): | 2400 |
CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
Hardware Threads: | 32 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 15 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 128 |
# and size of DIMM: | 16 x 8192 MB |
Memory Details: | 8GB 2Rx4 PC3L-10600E; Slots 1A,2A,1B,2B,1C,2C,1D,2D and 1E,2E,1F,2F,1G,2G,1H,2H are populated |
Power Supply Quantity and Rating (W): | 1 x 920 |
Power Supply Details: | Acer P/N SC.9201S.002 |
Disk Drive: | 2 x 300GB 15K RPM SAS 3.5" HDD (P/N KH.30007.007) |
Disk Controller: | LSI MegaRAID SAS 9260-8i |
# and type of Network Interface Cards (NICs) Installed: | 4 x Intel I350 Gigabit Ethernet controller |
NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | No |
Software | |
---|---|
Power Management: | Power save enabled in OS |
Operating System (OS): | Windows Server 2008, Enterprise Edition |
OS Version: | R2 SP1 |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_26 |
JVM Command-line Options: | -server -showversion -Xmx2048m -Xms2048m -Xmn1706m -XX:ParallelGCThreads=4 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy |
JVM Affinity: | start /affinity [0000000F, 000000F0, 00000F00, 0000F000, 000F0000, 00F00000, 0F000000, F0000000] |
JVM Instances: | 8 |
JVM Initial Heap (MB): | 2048 |
JVM Maximum Heap (MB): | 2048 |
JVM Address Bits: | 64 |
Boot Firmware Version: | D19 |
Management Firmware Version: | 0.12 |
Workload Version: | SSJ 1.2.9 |
Director Location: | Controller |
Other Software: | None |
Hardware | |
---|---|
Hardware Vendor: | Acer Incorporated |
Model: | Gateway GR160 F1 |
CPU Description: | Intel L5520 |
Memory amount (GB): | 3 |
Software | |
---|---|
Operating System (OS): | Windows Server 2003 R2, Enterprise Edition SP2 |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle JRockit(R) (build R27.5.0-110_o-99226-1.6.0_03-20080528-1505-windows-ia32, compiled mode) |
CCS Version: | 1.2.5 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91H534921 |
Connectivity: | RS232 |
Input Connection: | Default |
Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
Accredited by: | ETC, Taiwan |
Calibration Label: | 12-05-BAC-113-01 |
Date of Calibration: | 10-May-2012 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.1-1271fb18-20110728 |
Setup Description: | None |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.0.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT airflow intake |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 414 | 20.8 |
90% | 386 | 21.6 |
80% | 325 | 21.4 |
70% | 282 | 21.2 |
60% | 255 | 21.0 |
50% | 229 | 20.8 |
40% | 202 | 20.8 |
30% | 177 | 20.8 |
20% | 156 | 21.3 |
10% | 138 | 22.2 |
Active Idle | 96.6 | 22.1 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
220V / 60 Hz / 1 phase / 2 wires | 20.8 | 32 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,360,832 | ||
Calibration 2 | 1,367,298 | ||
Calibration 3 | 1,367,196 | ||
ssj_ops@calibrated=1,367,247 | |||
100% | 99.8% | 1,367,247 | 1,365,171 |
90% | 90.1% | 1,230,522 | 1,232,312 |
80% | 79.9% | 1,093,798 | 1,091,894 |
70% | 70.3% | 957,073 | 960,656 |
60% | 59.9% | 820,348 | 819,228 |
50% | 50.0% | 683,624 | 683,232 |
40% | 40.0% | 546,899 | 546,751 |
30% | 29.9% | 410,174 | 408,779 |
20% | 19.9% | 273,449 | 272,589 |
10% | 10.0% | 136,725 | 136,349 |
Active Idle | 0 | 0 |
