Acer Incorporated Acer AT350 F2 SPECpower_ssj2008 = 2,330 overall ssj_ops/watt
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: May 24, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: Aug 8, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 323 23.2
Calibration 2 322 22.1
Calibration 3 322 21.4
100% 323 21.6
90% 305 22.9
80% 272 23.2
70% 237 22.4
60% 219 22.1
50% 199 22.6
40% 181 23.6
30% 163 23.2
20% 147 22.3
10% 133 22.0
Active Idle 96.0 22.1

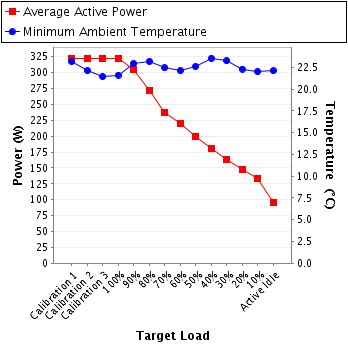

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91H534921
Connectivity: RS232
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory, R.O.C.)
Accredited by: ETC, Taiwan
Calibration Label: 12-05-BAC-113-01
Date of Calibration: 10-May-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.0.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 1.51 2.0 0.978 323 0.3%
Calibration 2 216 300.0 1.53 2.0 0.980 322 0.3%
Calibration 3 216 300.0 1.52 2.0 0.980 322 0.3%
100% 216 300.0 1.53 2.0 0.979 323 0.3%
90% 216 300.0 1.45 2.0 0.978 305 0.3%
80% 216 300.0 1.29 2.0 0.975 272 0.4%
70% 216 300.0 1.13 2.0 0.970 237 0.4%
60% 216 300.0 1.05 2.0 0.966 219 0.4%
50% 216 300.0 0.960 2.0 0.961 199 0.5%
40% 215 300.0 0.877 2.0 0.958 181 0.5%
30% 215 300.0 0.793 1.0 0.953 163 0.3%
20% 215 300.0 0.721 1.0 0.948 147 0.4%
10% 215 300.0 0.657 1.0 0.940 133 0.4%
Active Idle 215 300.0 0.488 1.0 0.915 96.0 0.5%

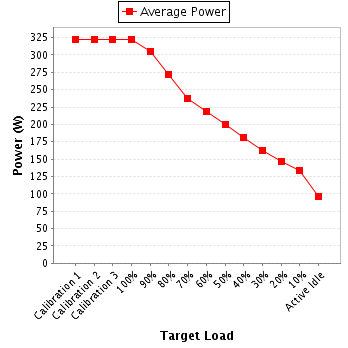

Power details for pwr1
