Huawei Technologies Co., Ltd BH640 V2 SPECpower_ssj2008 = 5,120 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Aug 5, 2012
Hardware Availability: Jul-2012 Software Availability: Dec-2011 Publication: Aug 8, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 1,250 22.4
Calibration 2 1,265 22.3
Calibration 3 1,255 22.3
100% 1,253 22.2
90% 1,070 22.2
80% 908 22.1
70% 788 22.1
60% 693 22.1
50% 622 22.1
40% 577 22.0
30% 529 21.9
20% 478 21.9
10% 425 21.9
Active Idle 283 21.9

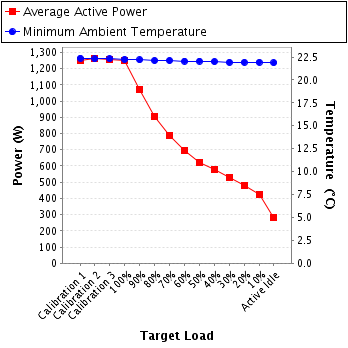

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K630156
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: 2GB12006186-0010
Date of Calibration: 30-Jul-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: The Temperature@lert-TM-STD30 used a 2 meters USB extension cable to connect to the controller. The Temperature@lert probe was placed in front of the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 64 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 227 300.0 6.00 10.0 0.919 1,250 0.4%
Calibration 2 226 300.0 6.08 10.0 0.922 1,265 0.4%
Calibration 3 226 300.0 6.04 10.0 0.921 1,255 0.4%
100% 226 300.0 6.02 10.0 0.921 1,253 0.4%
90% 227 300.0 5.26 5.0 0.898 1,070 0.3%
80% 227 300.0 4.60 5.0 0.868 908 0.4%
70% 228 300.0 4.12 5.0 0.839 788 0.4%
60% 228 300.0 3.75 5.0 0.809 693 0.5%
50% 229 300.0 3.48 5.0 0.782 622 0.5%
40% 228 300.0 3.32 5.0 0.762 577 0.5%
30% 228 300.0 3.14 5.0 0.738 529 0.6%
20% 228 300.0 2.95 5.0 0.709 478 0.6%
10% 228 300.0 2.75 5.0 0.676 425 0.7%
Active Idle 229 300.0 2.17 2.0 0.570 283 0.6%
Power details for pwr1
