SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Hitachi, Ltd. HA8000/TS20BM | SPECpower_ssj2008 = 3,987 overall ssj_ops/watt | ||||
| Test Sponsor: | Hitachi, Ltd. | SPEC License #: | 35 | Test Method: | Single Node |
| Tested By: | Hitachi, Ltd. | Test Location: | Hadano, Kanagawa, Japan | Test Date: | Jun 26, 2012 |
| Hardware Availability: | Jun-2012 | Software Availability: | Dec-2011 | Publication: | Aug 22, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

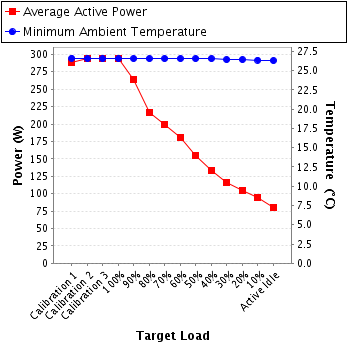

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 289 | 26.6 |
| Calibration 2 | 294 | 26.6 |
| Calibration 3 | 295 | 26.6 |
| 100% | 294 | 26.6 |
| 90% | 264 | 26.6 |
| 80% | 216 | 26.6 |
| 70% | 200 | 26.6 |
| 60% | 180 | 26.6 |
| 50% | 155 | 26.6 |
| 40% | 133 | 26.6 |
| 30% | 116 | 26.4 |
| 20% | 104 | 26.4 |
| 10% | 94.0 | 26.4 |
| Active Idle | 80.6 | 26.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric Corporation |
| Model: | WT210 |
| Serial Number: | 91K717967 |
| Connectivity: | RS-232C |
| Input Connection: | Default |
| Metrology Institute: | AIST (National Institute of Advanced Industrial Science and Technology) |
| Accredited by: | Yokogawa Meters & Instruments Corporation |
| Calibration Label: | S2012-06-50931 |
| Date of Calibration: | 12-Jun-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 40 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 99.0 | 150.0 | 2.93 | 5.0 | 0.996 | 289 | 0.4% |
| Calibration 2 | 99.0 | 150.0 | 2.98 | 5.0 | 0.996 | 294 | 0.4% |
| Calibration 3 | 99.0 | 150.0 | 2.99 | 5.0 | 0.996 | 295 | 0.4% |
| 100% | 99.0 | 150.0 | 2.98 | 5.0 | 0.996 | 294 | 0.4% |
| 90% | 99.1 | 150.0 | 2.69 | 5.0 | 0.994 | 264 | 0.5% |
| 80% | 99.3 | 150.0 | 2.19 | 5.0 | 0.994 | 216 | 0.5% |
| 70% | 99.3 | 150.0 | 2.03 | 5.0 | 0.993 | 200 | 0.5% |
| 60% | 99.4 | 150.0 | 1.83 | 2.0 | 0.989 | 180 | 0.3% |
| 50% | 99.5 | 150.0 | 1.58 | 2.0 | 0.986 | 155 | 0.4% |
| 40% | 99.6 | 150.0 | 1.36 | 2.0 | 0.984 | 133 | 0.4% |
| 30% | 99.6 | 150.0 | 1.19 | 2.0 | 0.981 | 116 | 0.4% |
| 20% | 99.7 | 150.0 | 1.07 | 2.0 | 0.977 | 104 | 0.5% |
| 10% | 99.7 | 150.0 | 0.969 | 1.0 | 0.973 | 94.0 | 0.4% |
| Active Idle | 99.7 | 150.0 | 0.836 | 1.0 | 0.966 | 80.6 | 0.4% |
