Hitachi, Ltd. HA8000/TS20BM ssj_ops@100% = 1,329,468
ssj_ops@100% per JVM = 166,184
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jun 26, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,329,345
Calibration 2     1,332,075
Calibration 3     1,336,987
ssj_ops@calibrated=1,334,531
100% 99.6% 1,334,531 1,329,468
90% 89.8% 1,201,078 1,197,875
80% 79.9% 1,067,625 1,066,253
70% 70.0% 934,172 933,955
60% 60.0% 800,719 801,327
50% 50.1% 667,266 668,638
40% 40.0% 533,813 533,601
30% 30.0% 400,359 400,005
20% 20.0% 266,906 266,443
10% 9.9% 133,453 131,870
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/TS20BM
Form Factor: Tower
CPU Name: Intel Xeon E5-2470
CPU Characteristics: 8 core, 2.3GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.10 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 4 x 8192 MB
Memory Details: 8GB 2Rx2 PC3L-10600R ECC CL9; slots CPU1_DIMM1,2 and CPU2_DIMM1,2 populated
Power Supply Quantity and Rating (W): 1 x 700
Power Supply Details: DELTA DPS-700NB_A
Disk Drive: 1 x 80GB SSD SATA(Hitachi P/N:GQ-UH7080NUM)
Disk Controller: LSI SAS 2208 (add-on card)
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom BCM5718 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -Xmx2g -Xms2g -Xmn1700m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start / affinity [NODE0 : f,f0,f00,f000,NODE1 : f,f0,f00,f000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: M2.1.04
Management Firmware Version: 09.15
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-E7V5EUHEPDE.001 164,670
WIN-E7V5EUHEPDE.002 167,334
WIN-E7V5EUHEPDE.003 167,819
WIN-E7V5EUHEPDE.004 167,184
WIN-E7V5EUHEPDE.005 164,924
WIN-E7V5EUHEPDE.006 165,734
WIN-E7V5EUHEPDE.007 164,789
WIN-E7V5EUHEPDE.008 167,014
ssj_ops@100% 1,329,468
ssj_ops@100% per JVM 166,184

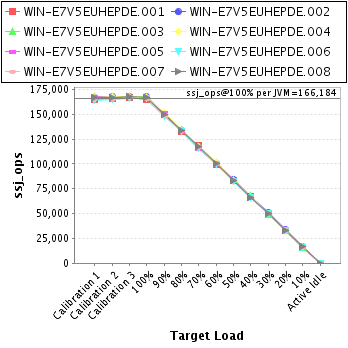

Graph of per-instance results

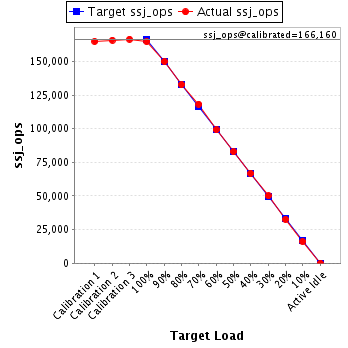

JVM 'WIN-E7V5EUHEPDE.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     164,913
Calibration 2     165,812
Calibration 3     166,508
ssj_ops@calibrated=166,160
100% 99.1% 166,160 164,670
90% 90.2% 149,544 149,872
80% 79.8% 132,928 132,638
70% 71.2% 116,312 118,254
60% 59.7% 99,696 99,218
50% 49.9% 83,080 82,893
40% 40.2% 66,464 66,747
30% 30.1% 49,848 50,048
20% 19.6% 33,232 32,623
10% 9.7% 16,616 16,170
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-E7V5EUHEPDE.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,512
Calibration 2     167,843
Calibration 3     167,797
ssj_ops@calibrated=167,820
100% 99.7% 167,820 167,334
90% 89.3% 151,038 149,835
80% 79.5% 134,256 133,423
70% 69.2% 117,474 116,099
60% 59.7% 100,692 100,162
50% 50.3% 83,910 84,360
40% 39.8% 67,128 66,762
30% 30.5% 50,346 51,112
20% 20.1% 33,564 33,813
10% 9.8% 16,782 16,530
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-E7V5EUHEPDE.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,523
Calibration 2     168,077
Calibration 3     168,076
ssj_ops@calibrated=168,076
100% 99.8% 168,076 167,819
90% 89.3% 151,269 150,048
80% 80.1% 134,461 134,568
70% 69.8% 117,653 117,368
60% 60.5% 100,846 101,643
50% 50.1% 84,038 84,260
40% 40.4% 67,230 67,827
30% 29.4% 50,423 49,424
20% 19.9% 33,615 33,440
10% 9.7% 16,808 16,309
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-E7V5EUHEPDE.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,039
Calibration 2     167,768
Calibration 3     167,805
ssj_ops@calibrated=167,786
100% 99.6% 167,786 167,184
90% 90.3% 151,008 151,566
80% 79.5% 134,229 133,389
70% 70.1% 117,450 117,606
60% 60.5% 100,672 101,558
50% 49.9% 83,893 83,744
40% 39.9% 67,114 66,930
30% 29.9% 50,336 50,183
20% 19.9% 33,557 33,400
10% 10.1% 16,779 16,965
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-E7V5EUHEPDE.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,383
Calibration 2     166,283
Calibration 3     166,622
ssj_ops@calibrated=166,452
100% 99.1% 166,452 164,924
90% 90.6% 149,807 150,798
80% 79.6% 133,162 132,507
70% 69.4% 116,517 115,441
60% 59.8% 99,871 99,481
50% 50.6% 83,226 84,170
40% 39.9% 66,581 66,377
30% 29.9% 49,936 49,706
20% 20.2% 33,290 33,592
10% 10.1% 16,645 16,820
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-E7V5EUHEPDE.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,936
Calibration 2     164,433
Calibration 3     165,934
ssj_ops@calibrated=165,184
100% 100.3% 165,184 165,734
90% 89.7% 148,665 148,118
80% 80.5% 132,147 133,015
70% 69.8% 115,629 115,354
60% 59.9% 99,110 98,986
50% 50.0% 82,592 82,658
40% 40.1% 66,073 66,261
30% 30.1% 49,555 49,663
20% 19.9% 33,037 32,895
10% 9.8% 16,518 16,141
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-E7V5EUHEPDE.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,642
Calibration 2     165,218
Calibration 3     166,879
ssj_ops@calibrated=166,048
100% 99.2% 166,048 164,789
90% 89.0% 149,444 147,838
80% 80.4% 132,839 133,462
70% 70.2% 116,234 116,596
60% 60.1% 99,629 99,790
50% 50.4% 83,024 83,707
40% 40.3% 66,419 66,962
30% 30.2% 49,815 50,204
20% 20.1% 33,210 33,403
10% 9.7% 16,605 16,099
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-E7V5EUHEPDE.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,396
Calibration 2     166,642
Calibration 3     167,369
ssj_ops@calibrated=167,005
100% 100.0% 167,005 167,014
90% 89.7% 150,305 149,800
80% 79.8% 133,604 133,250
70% 70.2% 116,904 117,237
60% 60.2% 100,203 100,489
50% 49.6% 83,503 82,847
40% 39.4% 66,802 65,735
30% 29.7% 50,102 49,666
20% 19.9% 33,401 33,277
10% 10.1% 16,701 16,836
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
