Fujitsu PRIMERGY TX200 S7 (Intel Xeon E5-2470) SPECpower_ssj2008 = 5,177 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Jul 25, 2012
Hardware Availability: Sep-2012 Software Availability: Dec-2011 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 249 21.9
Calibration 2 251 21.7
Calibration 3 251 21.6
100% 252 21.6
90% 219 21.6
80% 183 21.6
70% 153 21.6
60% 131 21.6
50% 114 21.5
40% 102 21.6
30% 92.0 21.6
20% 81.8 21.6
10% 71.3 21.6
Active Idle 51.4 21.6
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 11080967
Date of Calibration: 03-Aug-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 231 250.0 1.09 2.5 0.990 249 0.1%
Calibration 2 232 250.0 1.09 2.5 0.990 251 0.1%
Calibration 3 231 250.0 1.10 2.5 0.990 251 0.1%
100% 232 250.0 1.10 2.5 0.990 252 0.1%
90% 232 250.0 0.963 2.5 0.985 219 0.2%
80% 232 250.0 0.810 2.5 0.981 183 0.2%
70% 232 250.0 0.672 2.5 0.980 153 0.2%
60% 232 250.0 0.578 1.2 0.977 131 0.1%
50% 231 250.0 0.506 1.2 0.975 114 0.1%
40% 232 250.0 0.455 1.2 0.971 102 0.2%
30% 232 250.0 0.410 1.2 0.966 92.0 0.2%
20% 232 250.0 0.367 1.2 0.960 81.8 0.2%
10% 231 250.0 0.324 1.2 0.951 71.3 0.2%
Active Idle 230 250.0 0.243 1.2 0.919 51.4 0.3%

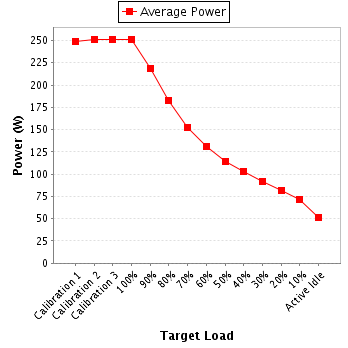

Power details for pwr1
