Huawei Technologies Co., Ltd RH2285 V2 SPECpower_ssj2008 = 5,203 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Aug 18, 2012
Hardware Availability: Aug-2012 Software Availability: Dec-2011 Publication: Sep 5, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 251 23.8
Calibration 2 254 23.9
Calibration 3 254 23.9
100% 254 23.9
90% 221 23.9
80% 181 23.9
70% 154 23.9
60% 133 23.9
50% 114 23.9
40% 103 23.9
30% 94.5 23.9
20% 84.8 23.9
10% 74.7 23.9
Active Idle 53.9 23.9

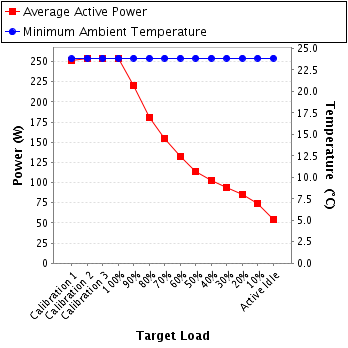

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91K630156
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: "2GB12006186-0010"
Date of Calibration: 30-Jul-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 225 300.0 1.14 2.0 0.985 251 0.4%
Calibration 2 225 300.0 1.15 2.0 0.985 254 0.4%
Calibration 3 225 300.0 1.14 2.0 0.985 254 0.4%
100% 225 300.0 1.15 2.0 0.985 254 0.4%
90% 225 300.0 1.01 1.0 0.978 221 0.3%
80% 225 300.0 0.825 1.0 0.974 181 0.3%
70% 225 300.0 0.695 1.0 0.986 154 0.3%
60% 226 300.0 0.599 1.0 0.982 133 0.4%
50% 226 300.0 0.516 1.0 0.976 114 0.4%
40% 227 300.0 0.469 0.5 0.970 103 0.3%
30% 227 300.0 0.432 0.5 0.965 94.5 0.3%
20% 227 300.0 0.391 0.5 0.957 84.8 0.3%
10% 227 300.0 0.348 0.5 0.945 74.7 0.4%
Active Idle 228 300.0 0.263 0.5 0.900 53.9 0.5%

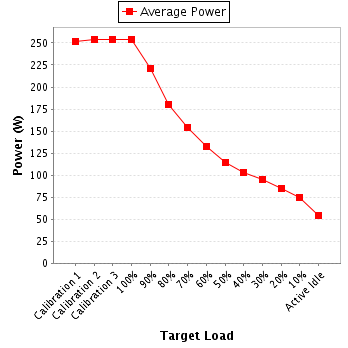

Power details for pwr1
