Fujitsu PRIMERGY TX200 S7 (Intel Xeon E5-2470) SPECpower_ssj2008 = 5,689 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Aug 31, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Sep 19, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.0% 1,516,025 252 6,017
90% 89.9% 1,363,127 221 6,173
80% 80.1% 1,214,468 188 6,456
70% 69.9% 1,060,316 156 6,806
60% 59.8% 906,891 133 6,834
50% 49.9% 756,454 116 6,545
40% 39.8% 604,164 103 5,849
30% 30.0% 454,989 92.5 4,919
20% 20.0% 302,814 82.1 3,689
10% 10.0% 151,766 71.0 2,137
Active Idle 0 50.7 0
∑ssj_ops / ∑power = 5,689

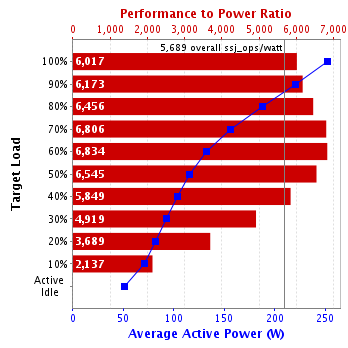

Graph of results
System Under Test
Set: 'TX200 S7'
Set Identifier: TX200 S7
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY TX200 S7 (Intel Xeon E5-2470)
Form Factor: Tower
CPU Name: Intel Xeon E5-2470
CPU Characteristics: 8-Core, 2.30GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.10 GHz)
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4 GB 2Rx8 PC3L-12800E-11, ECC; slots 1A, 1B, 1C, 1D, 1E, 1F populated
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: Fujitsu Technology Solutions S26113-E575-E10
Disk Drive: 1 x 250GB, HDD, 2.5" SATA, S26361-F3708-E250
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel 82574L Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: Version 6.1.7601 Service Pack 1 Build 7601
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /NODE [0,1] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: R1.7.0
Management Firmware Version: 6.53A
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX100 S3
CPU Description: Pentium D 950
Memory amount (GB): 2
Software
Operating System (OS): Windows Server 2003 Enterprise Edition + SP1
JVM Vendor: Oracle Corporation
JVM Version: Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 12084181
Date of Calibration: 06-Aug-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 252 20.6
90% 221 20.6
80% 188 20.6
70% 156 20.7
60% 133 20.7
50% 116 20.7
40% 103 20.6
30% 92.5 20.6
20% 82.1 20.6
10% 71.0 20.5
Active Idle 50.7 20.5
Line Standard Minimum Temperature (°C) Elevation (m)
230V / 50 Hz / 1 phase / 2 wires 20.5 117
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,444,279
Calibration 2     1,514,541
Calibration 3     1,518,862
ssj_ops@calibrated=1,516,701
100% 100.0% 1,516,701 1,516,025
90% 89.9% 1,365,031 1,363,127
80% 80.1% 1,213,361 1,214,468
70% 69.9% 1,061,691 1,060,316
60% 59.8% 910,021 906,891
50% 49.9% 758,351 756,454
40% 39.8% 606,681 604,164
30% 30.0% 455,010 454,989
20% 20.0% 303,340 302,814
10% 10.0% 151,670 151,766
Active Idle   0 0
Graph of results
