Fujitsu PRIMERGY RX500 S7 (Intel Xeon E5-4640) SPECpower_ssj2008 = 5,350 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Sep 3, 2012
Hardware Availability: Sep-2012 Software Availability: Jun-2012 Publication: Sep 19, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 413 22.1
Calibration 2 420 22.1
Calibration 3 422 22.2
100% 420 22.2
90% 378 22.2
80% 327 22.2
70% 285 22.2
60% 253 22.2
50% 229 22.2
40% 209 22.2
30% 191 22.2
20% 170 22.2
10% 147 22.2
Active Idle 97.1 22.1

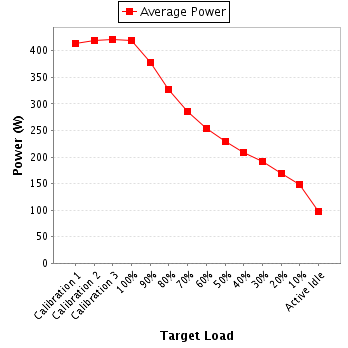

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Kalibrierdienst Stenger
Calibration Label: 12084181
Date of Calibration: 06-Aug-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 230 250.0 1.82 5.0 0.990 413 0.2%
Calibration 2 230 250.0 1.85 5.0 0.990 420 0.2%
Calibration 3 230 250.0 1.86 5.0 0.990 422 0.2%
100% 230 250.0 1.85 5.0 0.990 420 0.2%
90% 230 250.0 1.67 5.0 0.986 378 0.2%
80% 230 250.0 1.45 5.0 0.982 327 0.2%
70% 230 250.0 1.27 5.0 0.976 285 0.2%
60% 230 250.0 1.13 5.0 0.971 253 0.3%
50% 231 250.0 1.02 5.0 0.974 229 0.3%
40% 231 250.0 0.932 5.0 0.972 209 0.3%
30% 231 250.0 0.851 1.2 0.969 191 0.1%
20% 232 250.0 0.762 1.2 0.963 170 0.1%
10% 232 250.0 0.666 1.2 0.952 147 0.1%
Active Idle 233 250.0 0.462 1.2 0.904 97.1 0.2%
Power details for pwr1
