Dell Inc. PowerEdge R520 (Intel Xeon E5-2470, 2.30 GHz) ssj_ops@100% = 1,496,064
ssj_ops@100% per JVM = 93,504
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 2, 2012
Hardware Availability: Jun-2012 Software Availability: Jun-2012 Publication: Oct 17, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,436,962
Calibration 2     1,509,665
Calibration 3     1,509,521
ssj_ops@calibrated=1,509,593
100% 99.1% 1,509,593 1,496,064
90% 89.8% 1,358,634 1,354,870
80% 79.8% 1,207,674 1,204,865
70% 70.1% 1,056,715 1,057,520
60% 59.9% 905,756 904,142
50% 50.0% 754,796 754,760
40% 40.1% 603,837 606,017
30% 30.0% 452,878 453,109
20% 20.0% 301,919 302,374
10% 10.0% 150,959 151,435
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R520
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R520 (Intel Xeon E5-2470, 2.30 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-2470 (Intel Turbo Boost Technology up to 3.10 GHz )
CPU Characteristics: 8 core, 2.30GHz, 20MB L3 Cache
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC; Slots A1-3,B1-3 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Dell P/N XYXMG
Disk Drive: 1 x 100GB SATA SSD, Dell P/N DYW42
Disk Controller: PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Broadcom 5720
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver plan in OS
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1024m -Xms1024m -Xmn800m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [3,C,30,C00,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.2.4
Management Firmware Version: 1.20.20 (Build 24)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-FF9U195UFVP.001 92,847
WIN-FF9U195UFVP.002 93,581
WIN-FF9U195UFVP.003 93,618
WIN-FF9U195UFVP.004 93,617
WIN-FF9U195UFVP.005 92,992
WIN-FF9U195UFVP.006 91,576
WIN-FF9U195UFVP.007 92,849
WIN-FF9U195UFVP.008 94,951
WIN-FF9U195UFVP.009 93,453
WIN-FF9U195UFVP.010 93,648
WIN-FF9U195UFVP.011 93,831
WIN-FF9U195UFVP.012 95,031
WIN-FF9U195UFVP.013 94,399
WIN-FF9U195UFVP.014 93,923
WIN-FF9U195UFVP.015 93,117
WIN-FF9U195UFVP.016 92,631
ssj_ops@100% 1,496,064
ssj_ops@100% per JVM 93,504
Graph of per-instance results
JVM 'WIN-FF9U195UFVP.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,712
Calibration 2     94,146
Calibration 3     94,312
ssj_ops@calibrated=94,229
100% 98.5% 94,229 92,847
90% 89.3% 84,806 84,115
80% 79.3% 75,383 74,704
70% 69.4% 65,960 65,410
60% 60.7% 56,537 57,157
50% 50.4% 47,115 47,529
40% 40.2% 37,692 37,902
30% 30.5% 28,269 28,694
20% 20.0% 18,846 18,882
10% 9.9% 9,423 9,324
Active Idle   0 0

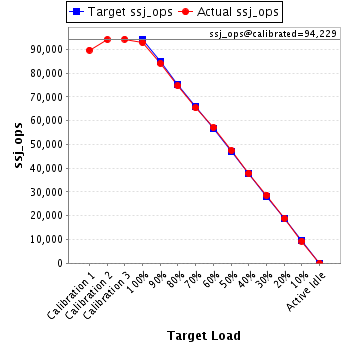

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,291
Calibration 2     94,944
Calibration 3     94,508
ssj_ops@calibrated=94,726
100% 98.8% 94,726 93,581
90% 89.3% 85,253 84,636
80% 80.2% 75,781 75,938
70% 71.3% 66,308 67,532
60% 60.7% 56,835 57,483
50% 50.4% 47,363 47,777
40% 40.7% 37,890 38,575
30% 28.9% 28,418 27,362
20% 20.3% 18,945 19,242
10% 9.9% 9,473 9,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,097
Calibration 2     95,199
Calibration 3     94,445
ssj_ops@calibrated=94,822
100% 98.7% 94,822 93,618
90% 90.5% 85,340 85,808
80% 80.7% 75,858 76,513
70% 69.8% 66,375 66,226
60% 59.9% 56,893 56,831
50% 49.5% 47,411 46,962
40% 40.5% 37,929 38,428
30% 30.1% 28,447 28,540
20% 20.4% 18,964 19,315
10% 10.1% 9,482 9,545
Active Idle   0 0

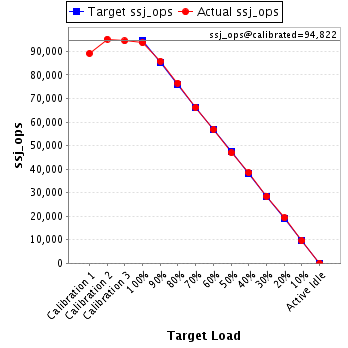

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,025
Calibration 2     95,157
Calibration 3     94,640
ssj_ops@calibrated=94,898
100% 98.6% 94,898 93,617
90% 89.9% 85,408 85,348
80% 80.5% 75,919 76,383
70% 69.8% 66,429 66,194
60% 60.0% 56,939 56,982
50% 50.9% 47,449 48,283
40% 39.8% 37,959 37,728
30% 30.7% 28,469 29,151
20% 19.6% 18,980 18,619
10% 10.1% 9,490 9,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,763
Calibration 2     93,670
Calibration 3     94,184
ssj_ops@calibrated=93,927
100% 99.0% 93,927 92,992
90% 89.4% 84,534 83,988
80% 78.9% 75,142 74,086
70% 69.9% 65,749 65,667
60% 60.5% 56,356 56,856
50% 49.3% 46,964 46,313
40% 40.0% 37,571 37,587
30% 30.1% 28,178 28,291
20% 20.2% 18,785 18,930
10% 10.1% 9,393 9,516
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,746
Calibration 2     92,939
Calibration 3     92,273
ssj_ops@calibrated=92,606
100% 98.9% 92,606 91,576
90% 89.3% 83,346 82,693
80% 79.2% 74,085 73,386
70% 70.9% 64,824 65,662
60% 60.9% 55,564 56,412
50% 50.3% 46,303 46,564
40% 40.1% 37,043 37,118
30% 29.8% 27,782 27,619
20% 20.0% 18,521 18,479
10% 10.2% 9,261 9,471
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,827
Calibration 2     93,667
Calibration 3     93,421
ssj_ops@calibrated=93,544
100% 99.3% 93,544 92,849
90% 90.7% 84,190 84,814
80% 79.7% 74,835 74,557
70% 70.3% 65,481 65,787
60% 60.5% 56,126 56,634
50% 49.7% 46,772 46,470
40% 41.1% 37,418 38,431
30% 29.9% 28,063 27,983
20% 19.5% 18,709 18,280
10% 10.1% 9,354 9,412
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,746
Calibration 2     95,694
Calibration 3     95,851
ssj_ops@calibrated=95,772
100% 99.1% 95,772 94,951
90% 90.5% 86,195 86,689
80% 80.1% 76,618 76,690
70% 70.3% 67,041 67,337
60% 59.1% 57,463 56,556
50% 50.0% 47,886 47,912
40% 39.8% 38,309 38,094
30% 29.8% 28,732 28,555
20% 19.9% 19,154 19,024
10% 10.1% 9,577 9,679
Active Idle   0 0

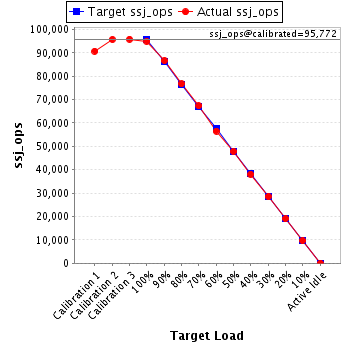

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,974
Calibration 2     93,836
Calibration 3     94,156
ssj_ops@calibrated=93,996
100% 99.4% 93,996 93,453
90% 90.0% 84,597 84,600
80% 80.2% 75,197 75,338
70% 70.2% 65,797 65,982
60% 59.4% 56,398 55,846
50% 50.8% 46,998 47,767
40% 39.7% 37,598 37,350
30% 29.9% 28,199 28,108
20% 20.1% 18,799 18,917
10% 9.7% 9,400 9,120
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,746
Calibration 2     94,800
Calibration 3     94,872
ssj_ops@calibrated=94,836
100% 98.7% 94,836 93,648
90% 89.1% 85,352 84,483
80% 79.7% 75,869 75,605
70% 70.2% 66,385 66,590
60% 60.9% 56,901 57,780
50% 49.6% 47,418 47,060
40% 40.5% 37,934 38,408
30% 29.7% 28,451 28,132
20% 20.1% 18,967 19,070
10% 10.2% 9,484 9,645
Active Idle   0 0

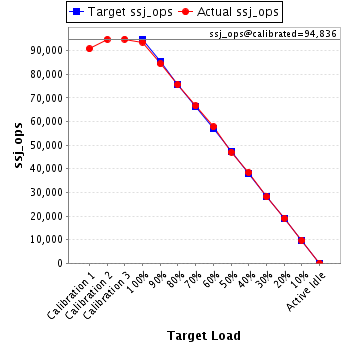

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,166
Calibration 2     94,664
Calibration 3     94,660
ssj_ops@calibrated=94,662
100% 99.1% 94,662 93,831
90% 89.6% 85,196 84,834
80% 80.3% 75,730 76,049
70% 69.5% 66,263 65,794
60% 59.1% 56,797 55,960
50% 49.3% 47,331 46,681
40% 40.0% 37,865 37,868
30% 30.4% 28,399 28,816
20% 19.6% 18,932 18,555
10% 9.9% 9,466 9,409
Active Idle   0 0

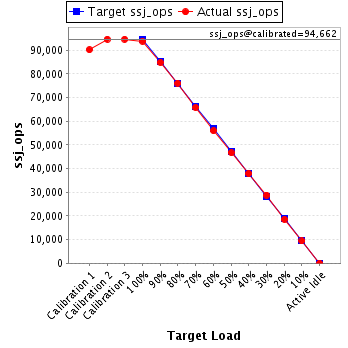

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,389
Calibration 2     95,633
Calibration 3     95,305
ssj_ops@calibrated=95,469
100% 99.5% 95,469 95,031
90% 89.6% 85,922 85,512
80% 79.8% 76,375 76,228
70% 70.7% 66,828 67,494
60% 58.5% 57,282 55,844
50% 49.8% 47,735 47,557
40% 39.6% 38,188 37,791
30% 30.0% 28,641 28,619
20% 20.3% 19,094 19,419
10% 10.3% 9,547 9,857
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,979
Calibration 2     94,514
Calibration 3     94,758
ssj_ops@calibrated=94,636
100% 99.8% 94,636 94,399
90% 89.0% 85,172 84,267
80% 80.2% 75,709 75,909
70% 69.6% 66,245 65,830
60% 60.1% 56,782 56,831
50% 50.3% 47,318 47,578
40% 39.8% 37,854 37,656
30% 30.1% 28,391 28,453
20% 20.0% 18,927 18,928
10% 10.1% 9,464 9,525
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,902
Calibration 2     94,437
Calibration 3     94,598
ssj_ops@calibrated=94,518
100% 99.4% 94,518 93,923
90% 89.5% 85,066 84,634
80% 80.1% 75,614 75,666
70% 69.7% 66,162 65,919
60% 59.7% 56,711 56,461
50% 49.7% 47,259 46,977
40% 39.8% 37,807 37,621
30% 30.0% 28,355 28,379
20% 20.4% 18,904 19,288
10% 9.9% 9,452 9,345
Active Idle   0 0

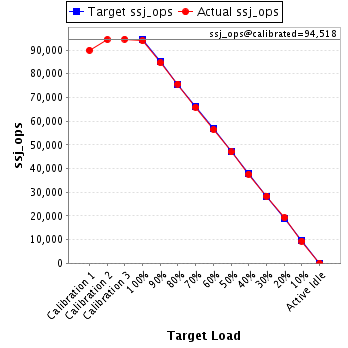

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,093
Calibration 2     93,492
Calibration 3     93,884
ssj_ops@calibrated=93,688
100% 99.4% 93,688 93,117
90% 90.2% 84,319 84,461
80% 79.3% 74,950 74,284
70% 70.3% 65,582 65,879
60% 59.3% 56,213 55,598
50% 50.1% 46,844 46,909
40% 40.2% 37,475 37,663
30% 30.4% 28,106 28,495
20% 19.7% 18,738 18,480
10% 10.0% 9,369 9,324
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-FF9U195UFVP.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,504
Calibration 2     92,872
Calibration 3     93,655
ssj_ops@calibrated=93,264
100% 99.3% 93,264 92,631
90% 90.1% 83,937 83,988
80% 78.8% 74,611 73,528
70% 68.9% 65,285 64,218
60% 58.9% 55,958 54,911
50% 49.8% 46,632 46,421
40% 40.5% 37,305 37,796
30% 29.9% 27,979 27,912
20% 20.3% 18,653 18,945
10% 10.0% 9,326 9,320
Active Idle   0 0

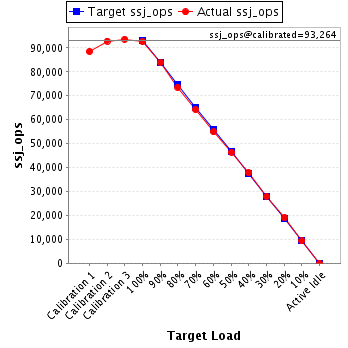

Graph of results
See the JVM Instance Performance Report for additional details.
