Cisco Systems, Inc. UCS C220 M3 SPECpower_ssj2008 = 4,904 overall ssj_ops/watt
Test Sponsor: Cisco Systems, Inc. SPEC License #: 3184 Test Method: Single Node
Tested By: Principled Technologies, Inc. Test Location: Durham, NC, USA Test Date: Oct 3, 2012
Hardware Availability: Mar-2012 Software Availability: Aug-2012 Publication: Oct 17, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.3% 1,443,280 261 5,537
90% 89.3% 1,310,409 233 5,619
80% 79.7% 1,170,404 204 5,724
70% 69.9% 1,025,951 177 5,801
60% 60.0% 880,394 153 5,768
50% 50.1% 734,623 136 5,416
40% 40.1% 588,584 120 4,897
30% 29.9% 438,980 109 4,030
20% 20.0% 294,230 98.5 2,987
10% 10.0% 146,499 87.6 1,673
Active Idle 0 59.5 0
∑ssj_ops / ∑power = 4,904

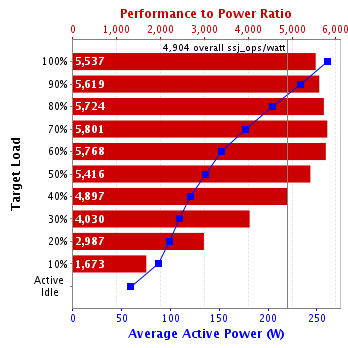

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: UCS C220 M3 Rack Server
Hardware
Hardware Vendor: Cisco Systems, Inc.
Model: UCS C220 M3
Form Factor: 1U
CPU Name: Intel Xeon E5-2660
CPU Characteristics: 8 Core, 2.20 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC; Slots A1-C1,E1-G1 populated.
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: Cisco P/N UCSC-PSU-450W
Disk Drive: 1 x 100GB Std Height 15mm SATA SSD, Cisco P/N UCS-SD100G0KA2-E
Disk Controller: Integrated Storage Controller Unit (SCU)
# and type of Network Interface Cards (NICs) Installed: 2 x 1 GbE Intel i350 PCIe-based Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise Edition
OS Version: SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1600m -Xms1600m -Xmn1300m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /high /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: 1.4.6a.0
Management Firmware Version: 1.4(5b)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Intel Corporation
Model: Intel Server Board S5000PSL
CPU Description: Intel Xeon E5345
Memory amount (GB): 8
Software
Operating System (OS): Windows Server 2008 R2 Enterprise Edition SP1
JVM Vendor: IBM
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91GB51135
Connectivity: RS232
Input Connection: Default
Metrology Institute: NIST
Accredited by: Tektronix
Calibration Label: 07-1684
Date of Calibration: 06-Dec-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Connected to SUT Power Supply Unit (PSU) 1
Temperature Sensor temp1
Hardware Vendor: Digi International
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.30.2.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
Used USB-to-Serial converter, Model Sabrent SBT-USC1M (driver version 2.0.2.1), to connect power analyzer to the controller
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 261 20.9
90% 233 20.6
80% 204 21.2
70% 177 20.5
60% 153 20.6
50% 136 20.4
40% 120 20.4
30% 109 20.6
20% 98.5 20.3
10% 87.6 20.9
Active Idle 59.5 20.3
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 20.3 26
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,437,830
Calibration 2     1,465,946
Calibration 3     1,469,589
ssj_ops@calibrated=1,467,768
100% 98.3% 1,467,768 1,443,280
90% 89.3% 1,320,991 1,310,409
80% 79.7% 1,174,214 1,170,404
70% 69.9% 1,027,437 1,025,951
60% 60.0% 880,661 880,394
50% 50.1% 733,884 734,623
40% 40.1% 587,107 588,584
30% 29.9% 440,330 438,980
20% 20.0% 293,554 294,230
10% 10.0% 146,777 146,499
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
