SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Huawei Technologies Co., Ltd RH2285 V2 | SPECpower_ssj2008 = 5,717 overall ssj_ops/watt | ||||
| Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Single Node |
| Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Oct 10, 2012 |
| Hardware Availability: | Aug-2012 | Software Availability: | Jun-2012 | Publication: | Oct 31, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

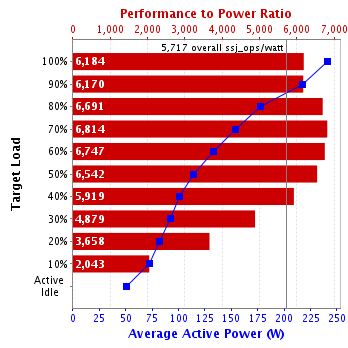

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.8% | 1,489,644 | 241 | 6,184 |
| 90% | 90.0% | 1,343,079 | 218 | 6,170 |
| 80% | 79.7% | 1,189,720 | 178 | 6,691 |
| 70% | 70.1% | 1,046,249 | 154 | 6,814 |
| 60% | 60.1% | 896,675 | 133 | 6,747 |
| 50% | 49.9% | 744,533 | 114 | 6,542 |
| 40% | 40.2% | 599,043 | 101 | 5,919 |
| 30% | 30.1% | 448,735 | 92.0 | 4,879 |
| 20% | 20.1% | 299,449 | 81.9 | 3,658 |
| 10% | 9.9% | 148,106 | 72.5 | 2,043 |
| Active Idle | 0 | 51.0 | 0 | |
| ∑ssj_ops / ∑power = | 5,717 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Huawei Technologies Co., Ltd |
| Model: | RH2285 V2 |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon E5-2470 |
| CPU Characteristics: | 8-Core, 2.30 GHz, 20 MB L3 Cache (Turbo Boost Technology up to 3.10 GHz) |
| CPU Frequency (MHz): | 2300 |
| CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
| Hardware Threads: | 32 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 24 |
| # and size of DIMM: | 6 x 4 GB |
| Memory Details: | 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1 B1,C1, D1, E1,F1,populated |
| Power Supply Quantity and Rating (W): | 1 x 460 |
| Power Supply Details: | Huawei P/N PW98080438 |
| Disk Drive: | 1 x 160GB SSD 2.5" SATA Huawei P/N 02310KSX |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Dual-port Intel 82580 Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition |
| OS Version: | R2 SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xmx1500m -Xms1500m -Xmn1100m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 |
| JVM Affinity: | start /affinity [0x0F,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | V036 |
| Management Firmware Version: | 3.60 |
| Workload Version: | SSJ 1.2.9 |
| Director Location: | Controller |
| Other Software: | IBM WebSphere Application Server V7.0 for Windows on x86-64bit |
| Hardware | |
|---|---|
| Hardware Vendor: | Huawei Technologies Co., Ltd |
| Model: | Tecal RH2280 Rack Server |
| CPU Description: | Intel Xeon 5205 |
| Memory amount (GB): | 6 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2003 SP2 |
| JVM Vendor: | Oracle |
| JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30 |
| CCS Version: | 1.2.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91K630156 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | "2GB12006186-0010" |
| Date of Calibration: | 30-Jul-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | none |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | TM-STD30 |
| Driver Version: | 3.1.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm. |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 241 | 23.0 |
| 90% | 218 | 22.9 |
| 80% | 178 | 22.9 |
| 70% | 154 | 22.8 |
| 60% | 133 | 22.8 |
| 50% | 114 | 22.8 |
| 40% | 101 | 22.8 |
| 30% | 92.0 | 22.8 |
| 20% | 81.9 | 22.7 |
| 10% | 72.5 | 22.6 |
| Active Idle | 51.0 | 22.6 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 50 Hz / 1 phase / 2 wires | 22.6 | 101 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,325,184 | ||
| Calibration 2 | 1,491,665 | ||
| Calibration 3 | 1,492,217 | ||
| ssj_ops@calibrated=1,491,941 | |||
| 100% | 99.8% | 1,491,941 | 1,489,644 |
| 90% | 90.0% | 1,342,747 | 1,343,079 |
| 80% | 79.7% | 1,193,553 | 1,189,720 |
| 70% | 70.1% | 1,044,359 | 1,046,249 |
| 60% | 60.1% | 895,165 | 896,675 |
| 50% | 49.9% | 745,971 | 744,533 |
| 40% | 40.2% | 596,776 | 599,043 |
| 30% | 30.1% | 447,582 | 448,735 |
| 20% | 20.1% | 298,388 | 299,449 |
| 10% | 9.9% | 149,194 | 148,106 |
| Active Idle | 0 | 0 | |
