Huawei Technologies Co., Ltd RH2288 V2 SPECpower_ssj2008 = 4,786 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Oct 12, 2012
Hardware Availability: Aug-2012 Software Availability: Jun-2012 Publication: Oct 31, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 235 23.1
Calibration 2 236 23.0
Calibration 3 236 22.9
100% 236 22.8
90% 225 22.7
80% 211 22.6
70% 194 22.5
60% 174 22.5
50% 151 22.4
40% 127 22.3
30% 107 22.3
20% 90.2 22.2
10% 76.1 22.2
Active Idle 66.8 22.2

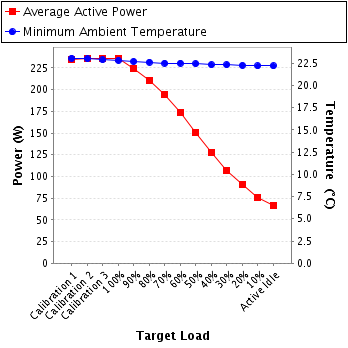

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91K630156
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: "2GB12006186-0010"
Date of Calibration: 30-Jul-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 221 300.0 1.09 2.0 0.975 235 0.4%
Calibration 2 221 300.0 1.09 2.0 0.975 236 0.4%
Calibration 3 221 300.0 1.10 2.0 0.975 236 0.4%
100% 222 300.0 1.09 2.0 0.975 236 0.4%
90% 220 300.0 1.05 2.0 0.973 225 0.4%
80% 221 300.0 0.987 2.0 0.969 211 0.4%
70% 221 300.0 0.915 1.0 0.961 194 0.3%
60% 222 300.0 0.821 1.0 0.953 174 0.3%
50% 222 300.0 0.717 1.0 0.949 151 0.4%
40% 222 300.0 0.608 1.0 0.943 127 0.4%
30% 223 300.0 0.512 1.0 0.938 107 0.5%
20% 223 300.0 0.437 1.0 0.928 90.2 0.5%
10% 223 300.0 0.375 1.0 0.912 76.1 0.6%
Active Idle 223 300.0 0.334 0.5 0.898 66.8 0.4%

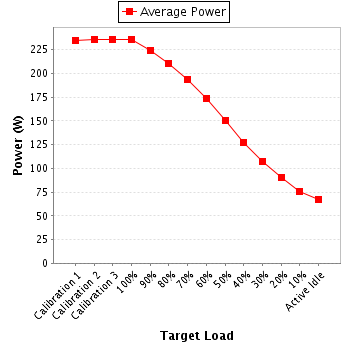

Power details for pwr1
