SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Huawei Technologies Co., Ltd RH2288 V2 | SPECpower_ssj2008 = 5,453 overall ssj_ops/watt | ||||
| Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Single Node |
| Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Oct 13, 2012 |
| Hardware Availability: | Aug-2012 | Software Availability: | Jun-2012 | Publication: | Oct 31, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

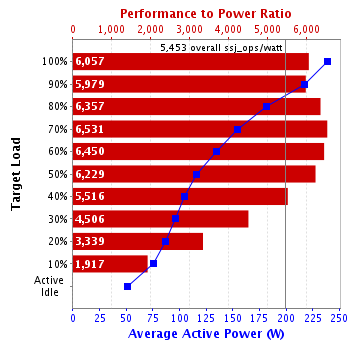

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 100.0% | 1,445,741 | 239 | 6,057 |
| 90% | 89.8% | 1,299,178 | 217 | 5,979 |
| 80% | 80.0% | 1,156,638 | 182 | 6,357 |
| 70% | 69.9% | 1,010,701 | 155 | 6,531 |
| 60% | 59.9% | 866,974 | 134 | 6,450 |
| 50% | 50.0% | 723,736 | 116 | 6,229 |
| 40% | 40.1% | 579,900 | 105 | 5,516 |
| 30% | 30.0% | 434,347 | 96.4 | 4,506 |
| 20% | 20.0% | 288,645 | 86.4 | 3,339 |
| 10% | 10.0% | 144,142 | 75.2 | 1,917 |
| Active Idle | 0 | 51.5 | 0 | |
| ∑ssj_ops / ∑power = | 5,453 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Huawei Technologies Co., Ltd |
| Model: | RH2288 V2 |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon E5-2660 |
| CPU Characteristics: | 8-Core, 2.20 GHz, 20 MB L3 Cache (Intel Turbo Boost Technology up to 3.00 GHz) |
| CPU Frequency (MHz): | 2200 |
| CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
| Hardware Threads: | 32 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 24 |
| # and size of DIMM: | 6 x 4 GB |
| Memory Details: | 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1 B1,C1, D1, E1,F1,populated |
| Power Supply Quantity and Rating (W): | 1 x 460 |
| Power Supply Details: | Huawei P/N PW98080438 |
| Disk Drive: | 1 x 160GB SSD 2.5" SATA Huawei P/N 02310KSX |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Dual-port Intel 82580 Gigabit Ethernet controller |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Power Saver enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise x64 Edition |
| OS Version: | R2 SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xmx1500m -Xms1500m -Xmn1100m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 |
| JVM Affinity: | start /affinity [0x0F,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | V030 |
| Management Firmware Version: | 3.02 |
| Workload Version: | SSJ 1.2.9 |
| Director Location: | Controller |
| Other Software: | IBM WebSphere Application Server V7.0 for Windows on x86-64bit |
| Hardware | |
|---|---|
| Hardware Vendor: | Huawei Technologies Co., Ltd |
| Model: | Tecal RH2280 Rack Server |
| CPU Description: | Intel Xeon 5205 |
| Memory amount (GB): | 6 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2003 SP2 |
| JVM Vendor: | Oracle |
| JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30 |
| CCS Version: | 1.2.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91K630156 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | Calibration and Testing Center of CEPREI |
| Calibration Label: | "2GB12006186-0010" |
| Date of Calibration: | 30-Jul-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | none |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Temperature@lert |
| Model: | TM-STD30 |
| Driver Version: | 3.1.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm. |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 239 | 22.9 |
| 90% | 217 | 22.9 |
| 80% | 182 | 22.9 |
| 70% | 155 | 23.0 |
| 60% | 134 | 23.0 |
| 50% | 116 | 23.0 |
| 40% | 105 | 23.1 |
| 30% | 96.4 | 23.1 |
| 20% | 86.4 | 23.1 |
| 10% | 75.2 | 23.1 |
| Active Idle | 51.5 | 23.1 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 220V / 50 Hz / 1 phase / 2 wires | 22.9 | 101 |

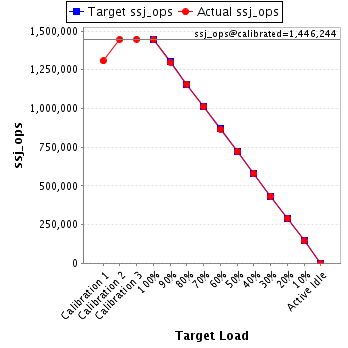

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,306,639 | ||
| Calibration 2 | 1,445,087 | ||
| Calibration 3 | 1,447,401 | ||
| ssj_ops@calibrated=1,446,244 | |||
| 100% | 100.0% | 1,446,244 | 1,445,741 |
| 90% | 89.8% | 1,301,620 | 1,299,178 |
| 80% | 80.0% | 1,156,995 | 1,156,638 |
| 70% | 69.9% | 1,012,371 | 1,010,701 |
| 60% | 59.9% | 867,746 | 866,974 |
| 50% | 50.0% | 723,122 | 723,736 |
| 40% | 40.1% | 578,498 | 579,900 |
| 30% | 30.0% | 433,873 | 434,347 |
| 20% | 20.0% | 289,249 | 288,645 |
| 10% | 10.0% | 144,624 | 144,142 |
| Active Idle | 0 | 0 | |
