Supermicro Computer, Inc. 1022G-NTF SPECpower_ssj2008 = 4,040 overall ssj_ops/watt
Test Sponsor: Advanced Micro Devices SPEC License #: 49 Test Method: Single Node
Tested By: Advanced Micro Devices Test Location: Austin, TX USA Test Date: Oct 11, 2012
Hardware Availability: Nov-2012 Software Availability: Apr-2012 Publication: Nov 7, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 303 22.3
Calibration 2 308 22.3
Calibration 3 309 22.3
100% 308 22.3
90% 293 22.3
80% 275 22.3
70% 256 22.3
60% 230 21.6
50% 205 21.5
40% 181 21.4
30% 158 21.6
20% 137 21.5
10% 115 21.6
Active Idle 77.9 21.5
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91M242010
Connectivity: GPIB
Input Connection: Default
Metrology Institute: NIST
Accredited by: Yokogawa Corporation of America
Calibration Label: 051412-91M242010
Date of Calibration: 14-May-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Unknown
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.30.2.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 208 300.0 1.50 2.0 0.970 303 0.4%
Calibration 2 208 300.0 1.53 2.0 0.971 308 0.4%
Calibration 3 209 300.0 1.52 2.0 0.971 309 0.4%
100% 209 300.0 1.52 2.0 0.971 308 0.4%
90% 210 300.0 1.44 2.0 0.970 293 0.4%
80% 210 300.0 1.35 2.0 0.969 275 0.4%
70% 210 300.0 1.26 2.0 0.966 256 0.4%
60% 210 300.0 1.15 2.0 0.957 230 0.5%
50% 210 300.0 1.03 2.0 0.952 205 0.5%
40% 210 300.0 0.911 2.0 0.946 181 0.6%
30% 210 300.0 0.799 2.0 0.941 158 0.6%
20% 210 300.0 0.698 2.0 0.932 137 0.7%
10% 210 300.0 0.597 1.0 0.919 115 0.5%
Active Idle 210 300.0 0.417 0.5 0.890 77.9 0.4%

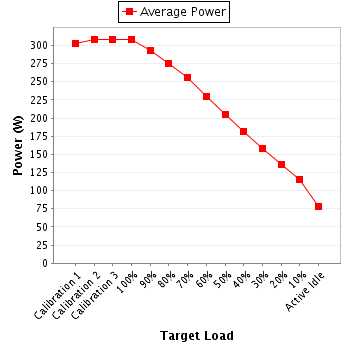

Power details for pwr1
