SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3650 M4 | SPECpower_ssj2008 = 5,054 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Taipei, Taiwan | Test Date: | Oct 9, 2012 |
| Hardware Availability: | Aug-2012 | Software Availability: | Dec-2012 | Publication: | Oct 31, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

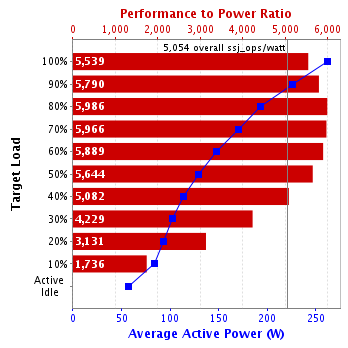

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 99.8% | 1,450,305 | 262 | 5,539 |
| 90% | 90.0% | 1,307,987 | 226 | 5,790 |
| 80% | 79.6% | 1,157,531 | 193 | 5,986 |
| 70% | 70.1% | 1,019,449 | 171 | 5,966 |
| 60% | 60.0% | 871,702 | 148 | 5,889 |
| 50% | 50.0% | 727,039 | 129 | 5,644 |
| 40% | 40.0% | 581,007 | 114 | 5,082 |
| 30% | 29.9% | 435,076 | 103 | 4,229 |
| 20% | 20.1% | 291,792 | 93.2 | 3,131 |
| 10% | 10.0% | 145,845 | 84.0 | 1,736 |
| Active Idle | 0 | 57.2 | 0 | |
| ∑ssj_ops / ∑power = | 5,054 | |||
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x3650 M4 |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon E5-2660 2.20 GHz (Intel Turbo Boost Technology up to 3.00 GHz) |
| CPU Characteristics: | 8-Core, 2.20 GHz, 20MB L3 Cache |
| CPU Frequency (MHz): | 2200 |
| CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
| Hardware Threads: | 32 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 24 |
| # and size of DIMM: | 6 x 4096 MB |
| Memory Details: | 4GB 2Rx8 PC3L-10600E; slots 1, 4, 12, 13, 16 and 24 populated |
| Power Supply Quantity and Rating (W): | 1 x 550 |
| Power Supply Details: | IBM 550w PSU(43X3311) |
| Disk Drive: | 1 x 200GB SSD(x3650 M4 High Power Efficiency Kit, Feature Code: A2X1) |
| Disk Controller: | Integrated SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 4 x Integrated Intel I350 Gigabit Ethernet Controller |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | IBM Power Profile |
| Operating System (OS): | Microsoft Windows Server 2008 Enterprise Edition x64 |
| OS Version: | R2 SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xmn1100m -Xms1500m -Xmx1500m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 |
| JVM Affinity: | start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000] |
| JVM Instances: | 8 |
| JVM Initial Heap (MB): | 1500 |
| JVM Maximum Heap (MB): | 1500 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | VVE123D |
| Management Firmware Version: | 1AOO31M |
| Workload Version: | SSJ 1.2.9 |
| Director Location: | Controller |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows x64 |
| Hardware | |
|---|---|
| Hardware Vendor: | IBM Corporation |
| Model: | IBM System x iDataPlex dx320 Server |
| CPU Description: | Intel Xeon CPU L5420 |
| Memory amount (GB): | 24 |
| Software | |
|---|---|
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise Edition |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build pwa6460sr5-20090529_04(SR5)) |
| CCS Version: | 1.2.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91JB14535 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 11-05-BAC-032-03 |
| Date of Calibration: | 05-May-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | none |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 262 | 22.0 |
| 90% | 226 | 22.0 |
| 80% | 193 | 22.0 |
| 70% | 171 | 22.0 |
| 60% | 148 | 22.0 |
| 50% | 129 | 22.1 |
| 40% | 114 | 22.1 |
| 30% | 103 | 22.0 |
| 20% | 93.2 | 22.0 |
| 10% | 84.0 | 22.1 |
| Active Idle | 57.2 | 22.1 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 208V / 60 Hz / 1 phase / 2 wires | 22.0 | 63 |

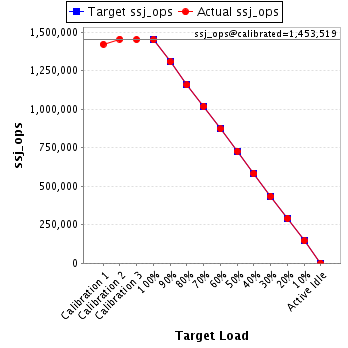

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,421,796 | ||
| Calibration 2 | 1,454,909 | ||
| Calibration 3 | 1,452,128 | ||
| ssj_ops@calibrated=1,453,519 | |||
| 100% | 99.8% | 1,453,519 | 1,450,305 |
| 90% | 90.0% | 1,308,167 | 1,307,987 |
| 80% | 79.6% | 1,162,815 | 1,157,531 |
| 70% | 70.1% | 1,017,463 | 1,019,449 |
| 60% | 60.0% | 872,111 | 871,702 |
| 50% | 50.0% | 726,759 | 727,039 |
| 40% | 40.0% | 581,407 | 581,007 |
| 30% | 29.9% | 436,056 | 435,076 |
| 20% | 20.1% | 290,704 | 291,792 |
| 10% | 10.0% | 145,352 | 145,845 |
| Active Idle | 0 | 0 | |
