IBM Corporation IBM System x3500 M4 SPECpower_ssj2008 = 5,108 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Taipei, Taiwan Test Date: Oct 16, 2012
Hardware Availability: Sep-2012 Software Availability: Dec-2012 Publication: Oct 31, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 254 23.8
Calibration 2 257 23.9
Calibration 3 256 23.9
100% 256 23.8
90% 220 23.7
80% 191 23.6
70% 169 23.5
60% 148 23.5
50% 130 23.4
40% 116 23.4
30% 104 23.4
20% 94.9 23.4
10% 85.0 23.6
Active Idle 57.3 23.7

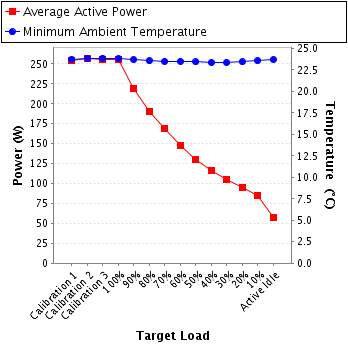

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91JB14535
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 11-05-BAC-032-03
Date of Calibration: 05-May-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 209 300.0 1.27 2.0 0.962 254 0.4%
Calibration 2 209 300.0 1.28 2.0 0.963 257 0.4%
Calibration 3 209 300.0 1.27 2.0 0.963 256 0.4%
100% 209 300.0 1.27 2.0 0.963 256 0.4%
90% 209 300.0 1.11 2.0 0.950 220 0.5%
80% 209 300.0 0.974 2.0 0.935 191 0.5%
70% 209 300.0 0.881 2.0 0.919 169 0.6%
60% 209 300.0 0.786 2.0 0.900 148 0.7%
50% 209 300.0 0.710 1.0 0.880 130 0.5%
40% 208 300.0 0.649 1.0 0.857 116 0.5%
30% 208 300.0 0.601 1.0 0.834 104 0.6%
20% 209 300.0 0.562 1.0 0.809 94.9 0.6%
10% 208 300.0 0.523 1.0 0.779 85.0 0.7%
Active Idle 209 300.0 0.419 0.5 0.655 57.3 0.6%
Power details for pwr1
