Supermicro Inc. System 7047GR-TRF SPECpower_ssj2008 = 2,696 overall ssj_ops/watt
Test Sponsor: Supermicro Inc. SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Inc. Test Location: San Jose, CA, USA Test Date: Jun 28, 2012
Hardware Availability: Jun-2012 Software Availability: Apr-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 407 32.8
Calibration 2 412 32.9
Calibration 3 412 33.0
100% 413 33.1
90% 391 33.1
80% 367 33.1
70% 337 33.1
60% 305 33.1
50% 272 33.2
40% 240 33.2
30% 209 33.2
20% 180 33.2
10% 147 33.2
Active Idle 101 33.2

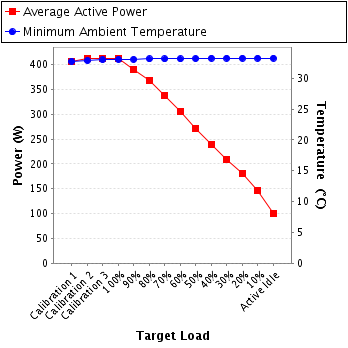

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91M516275
Connectivity: GPIB
Input Connection: Default
Metrology Institute: NIST
Accredited by: SE Laboratories
Calibration Label: C56-0082
Date of Calibration: 7-May-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H Host
Driver Version: 5.30
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main air intake
Notes
="SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version"
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 209 300.0 1.98 2.0 0.985 407 0.3%
Calibration 2 209 300.0 2.00 2.0 0.986 412 0.3%
Calibration 3 209 300.0 2.00 2.0 0.986 412 0.3%
100% 209 300.0 2.01 2.0 0.986 413 0.3%
90% 209 300.0 1.90 2.0 0.984 391 0.3%
80% 209 300.0 1.79 2.0 0.982 367 0.3%
70% 208 300.0 1.65 2.0 0.978 337 0.3%
60% 209 300.0 1.50 2.0 0.974 305 0.3%
50% 209 300.0 1.34 2.0 0.969 272 0.4%
40% 209 300.0 1.19 1.0 0.962 240 0.3%
30% 209 300.0 1.05 1.0 0.952 209 0.3%
20% 209 300.0 0.928 1.0 0.930 180 0.3%
10% 209 300.0 0.774 1.0 0.911 147 0.4%
Active Idle 209 300.0 0.548 1.0 0.878 101 0.5%

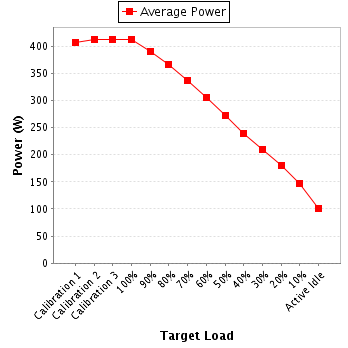

Power details for pwr1
