SPECpower_ssj2008 Host 'WIN-5OPS56GHP1T' Performance Report

SPECpower_ssj2008

Host 'WIN-5OPS56GHP1T' Performance Report

Supermicro Inc. System 7047GR-TRF			ssj_ops@100% = 1,448,093 ssj_ops@100% per JVM = 90,506
Test Sponsor:	Supermicro Inc.	SPEC License #:	1176	Test Method:	Single Node
Tested By:	Supermicro Inc.	Test Location:	San Jose, CA, USA	Test Date:	Jun 28, 2012
Hardware Availability:	Jun-2012	Software Availability:	Apr-2012	Publication:	Nov 14, 2012
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,448,908
Calibration 2			1,454,944
Calibration 3			1,450,250
ssj_ops@calibrated=1,452,597
100%	99.7%	1,452,597	1,448,093
90%	89.8%	1,307,337	1,305,066
80%	80.1%	1,162,078	1,163,071
70%	69.9%	1,016,818	1,014,821
60%	59.8%	871,558	868,874
50%	50.1%	726,299	727,150
40%	40.1%	581,039	583,035
30%	30.0%	435,779	435,377
20%	20.1%	290,519	291,626
10%	10.0%	145,260	145,861
Active Idle		0	0

System Under Test

Set: '7047GR'

Set Identifier:	7047GR
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Here is a comment for this set.

Hardware
Hardware Vendor:	Supermicro Inc.
Model:	System 7047GR-TRF
Form Factor:	4U
CPU Name:	Intel Xeon E5-2670 (2.30GHz)
CPU Characteristics:	8-Core, 2.3GHz (Intel Turbo boost mode up to 3.10GHz), 20MB L3 Cache
CPU Frequency (MHz):	2300
CPU(s) Enabled:	16 cores, 2 chips, 8 cores/chip
Hardware Threads:	32 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per chip
Tertiary Cache:	20 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	64
# and size of DIMM:	8 x 8192 MB
Memory Details:	8GB 2Rx8 PC3-10600E-9-10 slots 1-3-5-7-9-11-13-15 populated.
Power Supply Quantity and Rating (W):	1 x 1620
Power Supply Details:	Supermicro P/N: PWS-1K62P-1R
Disk Drive:	1 x 250GB SATA 3.0Gb/s 7200RPM Supermicro P/N:HDDT0250-WD2503ABYX
Disk Controller:	Onboard SATA Intel C602 Chipset
# and type of Network Interface Cards (NICs) Installed:	1 x Intel I350 Dual Port Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	KVM
Mouse:	KVM
Monitor:	KVM
Optical Drives:	Yes
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2008 Enterprise x64 Edition R2 SP1
OS Version:	6.1.7601 (64-bit)
Filesystem:	NTFS
JVM Vendor:	Oracle Corp.
JVM Version:	Java(TM) SE Runtime Environment (build 1.6.0_32-b05)
JVM Command-line Options:	-server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=4 -XX:BiasedLockingStartupDelay=200 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:-UseAdaptiveSizePolicy
JVM Affinity:	start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C000000, 30000000, C0000000]
JVM Instances:	16
JVM Initial Heap (MB):	1024
JVM Maximum Heap (MB):	1024
JVM Address Bits:	64
Boot Firmware Version:	4/20/2012 Ver1.0a
Management Firmware Version:	1.10.31
Workload Version:	SSJ 1.2.9
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

=

BIOS Settings
- Power Technology: Custom
- EIST: Enabled
- Turbo Mode: Enable
- C1E Support: Enabled
- CPU C3 Report: Disabled
- CPU C6 Report: Enabled
- CPU C7 Report: Enabled
- Package C State limit: No Limit
- Energy/Performance Bias: Energy Efficient
- QPI Link frequency: 6.4 GT/s
- Serial Port: Disabled

Management Firmware Settings

none

System Under Test Notes

Each JVM instance was affinitized two logical processors on a single socket.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Screen Saver: None
Power Option: Power Saver
Minimum Processor State: 0%
Maximum Processor State: 100%
Turn off hard disk after 1 minute

Notes

="SPECpower_ssj.props input.load_level.number_warehouses set to 32 due to a known inconsistency in processor reporting with this Java version"

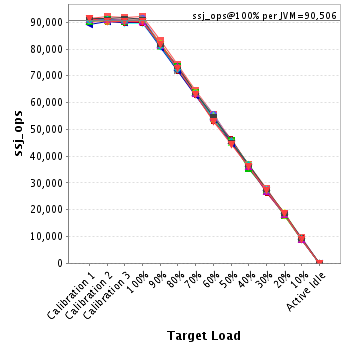

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-5OPS56GHP1T.001	91,979
WIN-5OPS56GHP1T.002	91,221
WIN-5OPS56GHP1T.003	90,469
WIN-5OPS56GHP1T.004	90,562
WIN-5OPS56GHP1T.005	89,349
WIN-5OPS56GHP1T.006	89,658
WIN-5OPS56GHP1T.007	90,706
WIN-5OPS56GHP1T.008	91,286
WIN-5OPS56GHP1T.009	89,923
WIN-5OPS56GHP1T.010	90,189
WIN-5OPS56GHP1T.011	90,354
WIN-5OPS56GHP1T.012	90,086
WIN-5OPS56GHP1T.013	90,090
WIN-5OPS56GHP1T.014	90,823
WIN-5OPS56GHP1T.015	91,101
WIN-5OPS56GHP1T.016	90,297
ssj_ops@100%	1,448,093
ssj_ops@100% per JVM	90,506

JVM 'WIN-5OPS56GHP1T.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			91,417
Calibration 2			92,196
Calibration 3			91,910
ssj_ops@calibrated=92,053
100%	99.9%	92,053	91,979
90%	90.3%	82,848	83,129
80%	80.8%	73,642	74,399
70%	69.9%	64,437	64,366
60%	60.4%	55,232	55,628
50%	49.9%	46,026	45,899
40%	40.1%	36,821	36,873
30%	30.2%	27,616	27,766
20%	19.9%	18,411	18,303
10%	10.4%	9,205	9,542
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-5OPS56GHP1T.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			90,387
Calibration 2			91,200
Calibration 3			90,844
ssj_ops@calibrated=91,022
100%	100.2%	91,022	91,221
90%	90.1%	81,920	82,021
80%	79.8%	72,818	72,600
70%	69.9%	63,715	63,635
60%	60.9%	54,613	55,471
50%	49.8%	45,511	45,370
40%	39.8%	36,409	36,242
30%	30.2%	27,307	27,518
20%	20.2%	18,204	18,350
10%	9.8%	9,102	8,896
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-5OPS56GHP1T.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			90,505
Calibration 2			91,135
Calibration 3			90,646
ssj_ops@calibrated=90,891
100%	99.5%	90,891	90,469
90%	89.2%	81,802	81,094
80%	80.0%	72,713	72,717
70%	70.4%	63,623	63,946
60%	60.7%	54,534	55,153
50%	49.7%	45,445	45,185
40%	40.3%	36,356	36,635
30%	30.3%	27,267	27,554
20%	20.2%	18,178	18,375
10%	10.3%	9,089	9,375
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-5OPS56GHP1T.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			89,940
Calibration 2			90,821
Calibration 3			91,031
ssj_ops@calibrated=90,926
100%	99.6%	90,926	90,562
90%	90.4%	81,834	82,232
80%	79.8%	72,741	72,557
70%	69.8%	63,648	63,442
60%	59.8%	54,556	54,345
50%	49.4%	45,463	44,902
40%	40.3%	36,370	36,646
30%	29.7%	27,278	27,021
20%	20.7%	18,185	18,829
10%	10.0%	9,093	9,100
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-5OPS56GHP1T.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			90,042
Calibration 2			90,554
Calibration 3			89,947
ssj_ops@calibrated=90,251
100%	99.0%	90,251	89,349
90%	90.2%	81,226	81,378
80%	79.9%	72,200	72,141
70%	69.7%	63,175	62,896
60%	59.8%	54,150	53,936
50%	50.7%	45,125	45,792
40%	40.0%	36,100	36,091
30%	29.9%	27,075	26,957
20%	19.8%	18,050	17,852
10%	10.5%	9,025	9,467
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-5OPS56GHP1T.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			90,697
Calibration 2			90,988
Calibration 3			89,468
ssj_ops@calibrated=90,228
100%	99.4%	90,228	89,658
90%	89.7%	81,205	80,908
80%	79.7%	72,182	71,898
70%	69.9%	63,160	63,042
60%	60.0%	54,137	54,117
50%	50.0%	45,114	45,083
40%	40.4%	36,091	36,450
30%	30.1%	27,068	27,125
20%	19.7%	18,046	17,746
10%	9.7%	9,023	8,774
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-5OPS56GHP1T.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			90,188
Calibration 2			91,761
Calibration 3			91,347
ssj_ops@calibrated=91,554
100%	99.1%	91,554	90,706
90%	89.5%	82,399	81,962
80%	79.7%	73,243	72,941
70%	70.1%	64,088	64,223
60%	59.7%	54,932	54,662
50%	50.4%	45,777	46,149
40%	39.9%	36,622	36,518
30%	30.1%	27,466	27,584
20%	19.6%	18,311	17,912
10%	10.2%	9,155	9,342
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-5OPS56GHP1T.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			90,512
Calibration 2			90,507
Calibration 3			91,186
ssj_ops@calibrated=90,847
100%	100.5%	90,847	91,286
90%	89.5%	81,762	81,336
80%	79.3%	72,677	72,057
70%	69.6%	63,593	63,207
60%	59.6%	54,508	54,182
50%	50.5%	45,423	45,845
40%	40.7%	36,339	36,987
30%	30.0%	27,254	27,262
20%	19.9%	18,169	18,095
10%	10.0%	9,085	9,096
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-5OPS56GHP1T.009' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			91,013
Calibration 2			90,216
Calibration 3			89,983
ssj_ops@calibrated=90,099
100%	99.8%	90,099	89,923
90%	90.2%	81,089	81,295
80%	79.9%	72,079	72,026
70%	69.8%	63,069	62,903
60%	59.2%	54,059	53,371
50%	51.1%	45,050	46,037
40%	40.6%	36,040	36,574
30%	29.4%	27,030	26,528
20%	20.0%	18,020	18,044
10%	10.1%	9,010	9,071
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

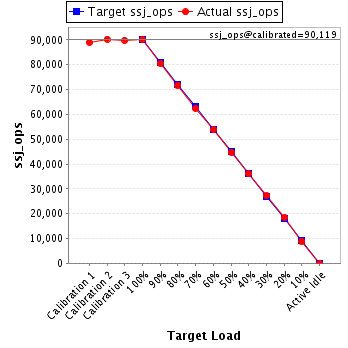

JVM 'WIN-5OPS56GHP1T.010' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			89,098
Calibration 2			90,325
Calibration 3			89,912
ssj_ops@calibrated=90,119
100%	100.1%	90,119	90,189
90%	89.4%	81,107	80,548
80%	79.7%	72,095	71,799
70%	69.3%	63,083	62,491
60%	59.7%	54,071	53,795
50%	49.7%	45,059	44,792
40%	40.0%	36,047	36,049
30%	30.2%	27,036	27,187
20%	20.5%	18,024	18,433
10%	9.9%	9,012	8,879
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-5OPS56GHP1T.011' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			90,415
Calibration 2			91,189
Calibration 3			90,323
ssj_ops@calibrated=90,756
100%	99.6%	90,756	90,354
90%	90.0%	81,681	81,709
80%	80.8%	72,605	73,294
70%	70.3%	63,529	63,766
60%	60.0%	54,454	54,432
50%	50.5%	45,378	45,837
40%	38.9%	36,303	35,350
30%	30.0%	27,227	27,212
20%	19.6%	18,151	17,800
10%	9.7%	9,076	8,837
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-5OPS56GHP1T.012' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			90,569
Calibration 2			90,181
Calibration 3			90,677
ssj_ops@calibrated=90,429
100%	99.6%	90,429	90,086
90%	90.6%	81,386	81,960
80%	80.7%	72,343	72,946
70%	70.5%	63,300	63,721
60%	59.2%	54,257	53,564
50%	50.2%	45,214	45,391
40%	40.7%	36,172	36,837
30%	29.9%	27,129	27,013
20%	19.9%	18,086	17,958
10%	10.0%	9,043	9,054
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-5OPS56GHP1T.013' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			90,997
Calibration 2			91,040
Calibration 3			90,543
ssj_ops@calibrated=90,791
100%	99.2%	90,791	90,090
90%	89.6%	81,712	81,316
80%	80.8%	72,633	73,320
70%	69.8%	63,554	63,372
60%	59.9%	54,475	54,399
50%	50.5%	45,396	45,837
40%	39.8%	36,317	36,149
30%	29.5%	27,237	26,782
20%	20.2%	18,158	18,383
10%	9.9%	9,079	8,987
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-5OPS56GHP1T.014' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			90,477
Calibration 2			91,048
Calibration 3			90,356
ssj_ops@calibrated=90,702
100%	100.1%	90,702	90,823
90%	89.3%	81,632	81,020
80%	79.8%	72,562	72,407
70%	69.7%	63,491	63,207
60%	59.5%	54,421	53,932
50%	50.3%	45,351	45,600
40%	40.7%	36,281	36,895
30%	30.1%	27,211	27,291
20%	20.4%	18,140	18,521
10%	10.2%	9,070	9,246
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-5OPS56GHP1T.015' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			91,366
Calibration 2			91,325
Calibration 3			91,676
ssj_ops@calibrated=91,501
100%	99.6%	91,501	91,101
90%	88.9%	82,351	81,342
80%	79.9%	73,201	73,100
70%	69.6%	64,051	63,726
60%	59.9%	54,901	54,812
50%	49.3%	45,750	45,154
40%	40.1%	36,600	36,695
30%	30.0%	27,450	27,425
20%	20.3%	18,300	18,571
10%	10.0%	9,150	9,170
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-5OPS56GHP1T.016' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			91,287
Calibration 2			90,457
Calibration 3			90,400
ssj_ops@calibrated=90,429
100%	99.9%	90,429	90,297
90%	90.5%	81,386	81,813
80%	80.6%	72,343	72,867
70%	69.5%	63,300	62,877
60%	58.7%	54,257	53,076
50%	49.0%	45,214	44,277
40%	39.9%	36,171	36,044
30%	30.0%	27,129	27,152
20%	20.4%	18,086	18,456
10%	10.0%	9,043	9,027
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.9, July 28, 2011]
