Dell Inc. PowerEdge R420 (Intel Xeon E5-2470, 2.30 GHz) SPECpower_ssj2008 = 5,420 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 22, 2012
Hardware Availability: Oct-2012 Software Availability: Jun-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 269 20.9
Calibration 2 272 21.1
Calibration 3 270 20.9
100% 263 21.1
90% 222 21.1
80% 192 21.1
70% 171 21.1
60% 146 21.2
50% 128 21.2
40% 114 21.2
30% 98.0 21.2
20% 84.7 21.1
10% 75.3 21.1
Active Idle 53.3 21.1

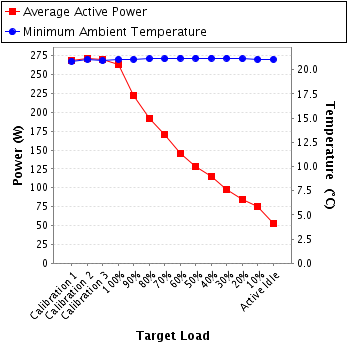

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91KA25149
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: SIMCO
Calibration Label: 5477872
Date of Calibration: 16-Dec-2011
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.30.2.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 210 300.0 1.34 2.0 0.957 269 0.4%
Calibration 2 210 300.0 1.35 2.0 0.958 272 0.4%
Calibration 3 210 300.0 1.34 2.0 0.958 270 0.4%
100% 210 300.0 1.31 2.0 0.954 263 0.4%
90% 210 300.0 1.13 2.0 0.933 222 0.5%
80% 210 300.0 0.992 2.0 0.921 192 0.5%
70% 210 300.0 0.891 1.0 0.914 171 0.4%
60% 210 300.0 0.788 1.0 0.884 146 0.5%
50% 210 300.0 0.713 1.0 0.855 128 0.5%
40% 210 300.0 0.666 1.0 0.822 114 0.6%
30% 210 300.0 0.580 1.0 0.805 98.0 0.6%
20% 210 300.0 0.521 1.0 0.774 84.7 0.7%
10% 210 300.0 0.488 1.0 0.735 75.3 0.7%
Active Idle 210 300.0 0.419 0.5 0.605 53.3 0.7%

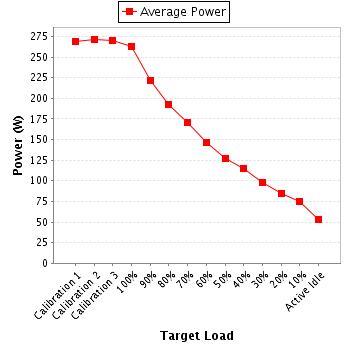

Power details for pwr1
