Dell Inc. PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz) ssj_ops@100% = 23,619,377
ssj_ops@100% per Host = 1,476,211
ssj_ops@100% per JVM = 92,263
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 25, 2012
Hardware Availability: Oct-2012 Software Availability: Jun-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,584,338
Calibration 2     23,747,651
Calibration 3     23,755,480
ssj_ops@calibrated=23,751,566
100% 99.4% 23,751,566 23,619,377
90% 89.9% 21,376,409 21,344,869
80% 80.0% 19,001,252 18,994,872
70% 70.0% 16,626,096 16,631,275
60% 59.9% 14,250,939 14,237,299
50% 50.0% 11,875,783 11,881,111
40% 40.0% 9,500,626 9,500,836
30% 30.0% 7,125,470 7,129,409
20% 20.0% 4,750,313 4,751,852
10% 10.0% 2,375,157 2,374,900
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
16 32 256 512 384 16 256
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Dell PowerEdge M1000e
Form Factor: 10U
Power Supply Quantity and Rating (W): 3 x 2700
Power Supply Details: Dell PN G803N
Network Switch: Dell PowerConnect 6248
Network Switch Details: 48 Port 1Gb Ethernet Switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: Dell M1000e Chassis Management Controller, Dell P/N: JV95D; Dell 16-Port Gigabit Ethernet Pass-Through Module, Dell P/N: WW060
Comment: Network switch not measured for power
Set: 'sut'
Set Identifier: sut
Set Description: M520
# of Identical Nodes: 16
Comment: None
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge M520 (Intel Xeon E5-2470 (2.30 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2470 (2.30 GHz)
CPU Characteristics: 8 Core, 2.30 GHz
CPU Frequency (MHz): 2300
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x Onboard dual-port Broadcom 5720 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.3.5
Management Firmware Version: iDRAC7 1.23.23 Build 1
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
M520-01 1,466,407
M520-02 1,482,870
M520-03 1,469,619
M520-04 1,481,212
M520-05 1,473,767
M520-06 1,482,771
M520-07 1,479,948
M520-08 1,470,023
M520-09 1,471,242
M520-10 1,484,807
M520-11 1,486,256
M520-12 1,487,103
M520-13 1,470,018
M520-14 1,471,187
M520-15 1,470,496
M620-16 1,471,650
ssj_ops@100% 23,619,377
ssj_ops@100% per Host 1,476,211
ssj_ops@100% per JVM 92,263
Graph of per-host results
Host 'M520-01' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,402,325
Calibration 2     1,477,937
Calibration 3     1,479,936
ssj_ops@calibrated=1,478,936
100% 99.2% 1,478,936 1,466,407
90% 90.0% 1,331,043 1,331,623
80% 80.1% 1,183,149 1,184,166
70% 69.9% 1,035,256 1,034,104
60% 60.0% 887,362 886,857
50% 49.9% 739,468 738,135
40% 39.9% 591,575 589,698
30% 29.9% 443,681 442,262
20% 20.0% 295,787 295,966
10% 10.0% 147,894 148,310
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-02' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,418,060
Calibration 2     1,491,298
Calibration 3     1,490,635
ssj_ops@calibrated=1,490,966
100% 99.5% 1,490,966 1,482,870
90% 90.0% 1,341,870 1,341,182
80% 80.3% 1,192,773 1,197,014
70% 69.9% 1,043,676 1,042,529
60% 60.0% 894,580 895,147
50% 49.8% 745,483 742,300
40% 40.0% 596,386 596,833
30% 30.1% 447,290 448,184
20% 20.0% 298,193 298,548
10% 10.0% 149,097 149,472
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-03' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,408,931
Calibration 2     1,476,243
Calibration 3     1,479,138
ssj_ops@calibrated=1,477,690
100% 99.5% 1,477,690 1,469,619
90% 90.0% 1,329,921 1,329,454
80% 79.9% 1,182,152 1,180,836
70% 70.1% 1,034,383 1,035,291
60% 60.0% 886,614 887,056
50% 49.9% 738,845 737,867
40% 40.2% 591,076 593,319
30% 30.2% 443,307 445,546
20% 20.0% 295,538 295,895
10% 10.0% 147,769 147,283
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-04' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,419,562
Calibration 2     1,490,123
Calibration 3     1,490,176
ssj_ops@calibrated=1,490,150
100% 99.4% 1,490,150 1,481,212
90% 89.9% 1,341,135 1,339,611
80% 80.0% 1,192,120 1,192,815
70% 70.1% 1,043,105 1,044,306
60% 59.8% 894,090 891,453
50% 50.0% 745,075 745,292
40% 40.0% 596,060 595,766
30% 30.0% 447,045 447,263
20% 20.1% 298,030 299,466
10% 9.9% 149,015 148,000
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-05' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,405,236
Calibration 2     1,478,875
Calibration 3     1,482,258
ssj_ops@calibrated=1,480,567
100% 99.5% 1,480,567 1,473,767
90% 89.9% 1,332,510 1,331,230
80% 79.8% 1,184,453 1,180,822
70% 69.8% 1,036,397 1,033,956
60% 60.0% 888,340 888,863
50% 50.0% 740,283 740,732
40% 39.9% 592,227 591,427
30% 30.0% 444,170 444,610
20% 20.1% 296,113 297,022
10% 9.9% 148,057 146,944
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

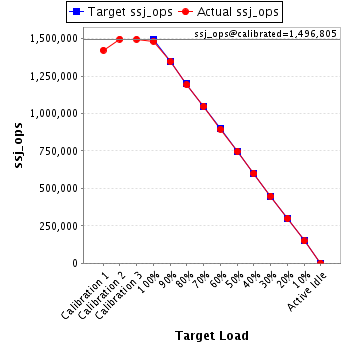

Host 'M520-06' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,423,074
Calibration 2     1,496,917
Calibration 3     1,496,693
ssj_ops@calibrated=1,496,805
100% 99.1% 1,496,805 1,482,771
90% 90.0% 1,347,124 1,347,304
80% 79.6% 1,197,444 1,192,123
70% 70.1% 1,047,763 1,048,744
60% 59.8% 898,083 895,785
50% 49.9% 748,402 746,740
40% 40.0% 598,722 598,626
30% 30.0% 449,041 449,011
20% 20.0% 299,361 299,362
10% 9.9% 149,680 148,917
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-07' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,416,137
Calibration 2     1,493,514
Calibration 3     1,491,625
ssj_ops@calibrated=1,492,570
100% 99.2% 1,492,570 1,479,948
90% 89.7% 1,343,313 1,338,403
80% 79.8% 1,194,056 1,190,896
70% 69.9% 1,044,799 1,043,919
60% 59.8% 895,542 892,290
50% 49.9% 746,285 745,420
40% 40.0% 597,028 597,119
30% 30.0% 447,771 447,429
20% 19.9% 298,514 296,960
10% 10.0% 149,257 148,563
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-08' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,399,593
Calibration 2     1,476,353
Calibration 3     1,475,673
ssj_ops@calibrated=1,476,013
100% 99.6% 1,476,013 1,470,023
90% 89.8% 1,328,412 1,325,637
80% 80.1% 1,180,811 1,181,951
70% 70.2% 1,033,209 1,035,720
60% 60.1% 885,608 886,881
50% 50.0% 738,007 738,507
40% 40.1% 590,405 591,334
30% 30.1% 442,804 443,980
20% 20.1% 295,203 296,452
10% 10.1% 147,601 148,343
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

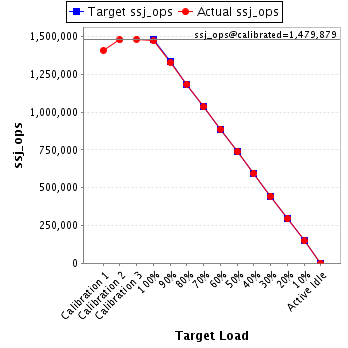

Host 'M520-09' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,407,067
Calibration 2     1,477,549
Calibration 3     1,482,209
ssj_ops@calibrated=1,479,879
100% 99.4% 1,479,879 1,471,242
90% 89.8% 1,331,891 1,328,262
80% 80.1% 1,183,903 1,185,126
70% 69.9% 1,035,915 1,034,455
60% 60.0% 887,927 887,481
50% 49.9% 739,939 738,166
40% 40.1% 591,952 593,679
30% 30.0% 443,964 444,049
20% 19.9% 295,976 294,446
10% 10.0% 147,988 148,104
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-10' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,411,694
Calibration 2     1,486,790
Calibration 3     1,487,285
ssj_ops@calibrated=1,487,038
100% 99.9% 1,487,038 1,484,807
90% 89.8% 1,338,334 1,335,279
80% 80.0% 1,189,630 1,189,237
70% 70.0% 1,040,926 1,040,450
60% 59.9% 892,223 891,204
50% 50.1% 743,519 745,126
40% 40.0% 594,815 595,391
30% 30.0% 446,111 446,116
20% 20.0% 297,408 296,749
10% 10.1% 148,704 149,582
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

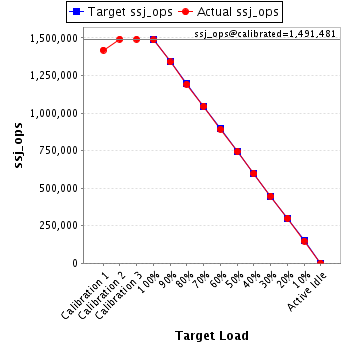

Host 'M520-11' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,419,201
Calibration 2     1,491,533
Calibration 3     1,491,429
ssj_ops@calibrated=1,491,481
100% 99.6% 1,491,481 1,486,256
90% 89.8% 1,342,333 1,339,616
80% 79.9% 1,193,185 1,191,821
70% 70.1% 1,044,037 1,045,624
60% 59.9% 894,889 892,658
50% 49.8% 745,741 743,440
40% 39.9% 596,593 595,750
30% 30.0% 447,444 447,656
20% 20.1% 298,296 299,536
10% 9.9% 149,148 148,061
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-12' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,419,401
Calibration 2     1,497,875
Calibration 3     1,497,392
ssj_ops@calibrated=1,497,634
100% 99.3% 1,497,634 1,487,103
90% 90.0% 1,347,870 1,347,913
80% 80.1% 1,198,107 1,199,078
70% 70.2% 1,048,344 1,050,754
60% 59.9% 898,580 896,393
50% 50.5% 748,817 756,560
40% 39.9% 599,054 596,985
30% 30.1% 449,290 450,464
20% 20.0% 299,527 299,954
10% 10.0% 149,763 149,580
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-13' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,403,815
Calibration 2     1,472,571
Calibration 3     1,472,965
ssj_ops@calibrated=1,472,768
100% 99.8% 1,472,768 1,470,018
90% 89.9% 1,325,491 1,323,773
80% 80.2% 1,178,214 1,180,803
70% 70.0% 1,030,938 1,030,704
60% 59.9% 883,661 881,850
50% 50.0% 736,384 736,052
40% 40.1% 589,107 590,119
30% 30.0% 441,830 442,560
20% 19.8% 294,554 291,909
10% 10.1% 147,277 148,067
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-14' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,412,118
Calibration 2     1,477,239
Calibration 3     1,475,437
ssj_ops@calibrated=1,476,338
100% 99.7% 1,476,338 1,471,187
90% 90.0% 1,328,704 1,329,063
80% 80.0% 1,181,070 1,181,566
70% 70.1% 1,033,436 1,035,308
60% 60.0% 885,803 885,254
50% 50.1% 738,169 739,500
40% 39.9% 590,535 588,856
30% 29.9% 442,901 440,976
20% 19.9% 295,268 294,166
10% 10.0% 147,634 148,119
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M520-15' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,407,415
Calibration 2     1,480,057
Calibration 3     1,481,263
ssj_ops@calibrated=1,480,660
100% 99.3% 1,480,660 1,470,496
90% 89.7% 1,332,594 1,328,366
80% 79.9% 1,184,528 1,182,655
70% 70.0% 1,036,462 1,036,548
60% 60.1% 888,396 889,530
50% 50.2% 740,330 743,184
40% 40.1% 592,264 593,475
30% 30.1% 444,198 445,265
20% 20.1% 296,132 297,575
10% 10.0% 148,066 148,596
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M620-16' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,410,710
Calibration 2     1,482,776
Calibration 3     1,481,365
ssj_ops@calibrated=1,482,071
100% 99.3% 1,482,071 1,471,650
90% 89.6% 1,333,864 1,328,152
80% 79.9% 1,185,657 1,183,963
70% 70.1% 1,037,450 1,038,862
60% 60.0% 889,243 888,599
50% 50.2% 741,035 744,093
40% 40.0% 592,828 592,456
30% 30.0% 444,621 444,037
20% 20.1% 296,414 297,845
10% 10.1% 148,207 148,958
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
