IBM Corporation IBM System x3530 M4 SPECpower_ssj2008 = 5,006 overall ssj_ops/watt
Test Sponsor: IBM Corporation SPEC License #: 11 Test Method: Single Node
Tested By: IBM Corporation Test Location: Taipei, Taiwan Test Date: Oct 26, 2012
Hardware Availability: Dec-2012 Software Availability: Dec-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 272 23.9
Calibration 2 273 24.0
Calibration 3 274 24.1
100% 274 24.1
90% 232 24.1
80% 199 24.2
70% 173 24.3
60% 149 24.4
50% 129 24.4
40% 114 24.4
30% 103 24.3
20% 93.4 24.3
10% 83.6 24.3
Active Idle 62.6 24.3

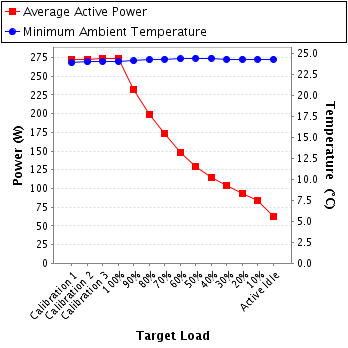

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91JB14535
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML/ROC
Accredited by: ETC, Taiwan
Calibration Label: 11-05-BAC-032-03
Date of Calibration: 05-May-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: none
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 4.20.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 1 cm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 209 300.0 1.35 2.0 0.963 272 0.4%
Calibration 2 210 300.0 1.35 2.0 0.964 273 0.4%
Calibration 3 209 300.0 1.36 2.0 0.962 274 0.4%
100% 209 300.0 1.36 2.0 0.962 274 0.4%
90% 210 300.0 1.17 2.0 0.949 232 0.4%
80% 209 300.0 1.02 2.0 0.932 199 0.5%
70% 210 300.0 0.908 2.0 0.911 173 0.5%
60% 210 300.0 0.799 1.0 0.887 149 0.4%
50% 210 300.0 0.714 1.0 0.861 129 0.5%
40% 210 300.0 0.653 1.0 0.834 114 0.5%
30% 210 300.0 0.608 1.0 0.809 103 0.5%
20% 210 300.0 0.569 1.0 0.782 93.4 0.6%
10% 210 300.0 0.530 1.0 0.750 83.6 0.6%
Active Idle 211 300.0 0.449 0.5 0.662 62.6 0.6%
Power details for pwr1
