SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3630 M4 | SPECpower_ssj2008 = 5,117 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Taipei, Taiwan | Test Date: | Oct 24, 2012 |
| Hardware Availability: | Dec-2012 | Software Availability: | Dec-2012 | Publication: | Nov 14, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

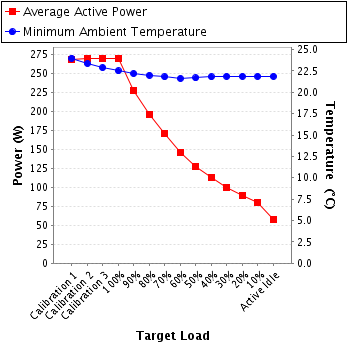

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 269 | 24.0 |
| Calibration 2 | 270 | 23.4 |
| Calibration 3 | 270 | 22.9 |
| 100% | 269 | 22.5 |
| 90% | 227 | 22.2 |
| 80% | 196 | 22.0 |
| 70% | 171 | 21.8 |
| 60% | 146 | 21.6 |
| 50% | 128 | 21.7 |
| 40% | 112 | 21.8 |
| 30% | 100 | 21.9 |
| 20% | 89.6 | 21.9 |
| 10% | 79.7 | 21.9 |
| Active Idle | 58.1 | 21.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91JB14535 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 11-05-BAC-032-03 |
| Date of Calibration: | 05-May-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | none |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main intake |

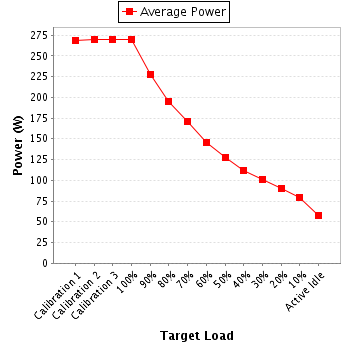

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 1.33 | 2.0 | 0.966 | 269 | 0.4% |
| Calibration 2 | 209 | 300.0 | 1.34 | 2.0 | 0.966 | 270 | 0.4% |
| Calibration 3 | 209 | 300.0 | 1.34 | 2.0 | 0.966 | 270 | 0.4% |
| 100% | 209 | 300.0 | 1.34 | 2.0 | 0.966 | 269 | 0.4% |
| 90% | 209 | 300.0 | 1.15 | 2.0 | 0.952 | 227 | 0.5% |
| 80% | 209 | 300.0 | 0.999 | 2.0 | 0.938 | 196 | 0.5% |
| 70% | 209 | 300.0 | 0.890 | 2.0 | 0.920 | 171 | 0.6% |
| 60% | 209 | 300.0 | 0.778 | 2.0 | 0.898 | 146 | 0.7% |
| 50% | 209 | 300.0 | 0.699 | 1.0 | 0.874 | 128 | 0.5% |
| 40% | 209 | 300.0 | 0.635 | 1.0 | 0.847 | 112 | 0.5% |
| 30% | 209 | 300.0 | 0.585 | 1.0 | 0.821 | 100 | 0.6% |
| 20% | 209 | 300.0 | 0.542 | 1.0 | 0.791 | 89.6 | 0.6% |
| 10% | 209 | 300.0 | 0.504 | 1.0 | 0.757 | 79.7 | 0.7% |
| Active Idle | 209 | 300.0 | 0.422 | 0.5 | 0.659 | 58.1 | 0.6% |
