SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge T620 (Intel Xeon E5-2660, 2.20 GHz) | SPECpower_ssj2008 = 5,425 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Nov 8, 2012 |
| Hardware Availability: | Oct-2012 | Software Availability: | Jun-2012 | Publication: | Nov 28, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

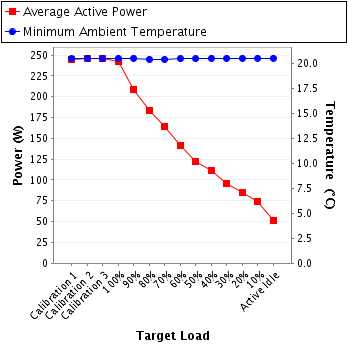

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 244 | 20.5 |
| Calibration 2 | 246 | 20.6 |
| Calibration 3 | 246 | 20.6 |
| 100% | 242 | 20.6 |
| 90% | 209 | 20.6 |
| 80% | 183 | 20.4 |
| 70% | 164 | 20.4 |
| 60% | 142 | 20.5 |
| 50% | 123 | 20.5 |
| 40% | 112 | 20.6 |
| 30% | 95.8 | 20.6 |
| 20% | 84.8 | 20.6 |
| 10% | 74.4 | 20.6 |
| Active Idle | 51.0 | 20.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91HB22770 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SIMCO |
| Calibration Label: | 5696169 |
| Date of Calibration: | 19-Jun-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 1.22 | 2.0 | 0.964 | 244 | 0.5% |
| Calibration 2 | 208 | 300.0 | 1.23 | 2.0 | 0.964 | 246 | 0.4% |
| Calibration 3 | 208 | 300.0 | 1.23 | 2.0 | 0.964 | 246 | 0.4% |
| 100% | 208 | 300.0 | 1.21 | 2.0 | 0.963 | 242 | 0.5% |
| 90% | 209 | 300.0 | 1.05 | 2.0 | 0.953 | 209 | 0.5% |
| 80% | 209 | 300.0 | 0.926 | 2.0 | 0.948 | 183 | 0.5% |
| 70% | 209 | 300.0 | 0.838 | 2.0 | 0.939 | 164 | 0.6% |
| 60% | 209 | 300.0 | 0.734 | 2.0 | 0.926 | 142 | 0.7% |
| 50% | 209 | 300.0 | 0.646 | 1.0 | 0.909 | 123 | 0.5% |
| 40% | 209 | 300.0 | 0.600 | 1.0 | 0.894 | 112 | 0.5% |
| 30% | 209 | 300.0 | 0.516 | 1.0 | 0.887 | 95.8 | 0.6% |
| 20% | 209 | 300.0 | 0.465 | 1.0 | 0.871 | 84.8 | 0.6% |
| 10% | 209 | 300.0 | 0.420 | 1.0 | 0.847 | 74.4 | 0.7% |
| Active Idle | 209 | 300.0 | 0.323 | 0.5 | 0.753 | 51.0 | 0.6% |
