Dell Inc. PowerEdge R620 (Intel Xeon E5-2660, 2.20 GHz) SPECpower_ssj2008 = 5,244 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Nov 7, 2012
Hardware Availability: Oct-2012 Software Availability: Jun-2012 Publication: Nov 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 252 20.8
Calibration 2 252 20.7
Calibration 3 252 20.7
100% 248 20.7
90% 214 20.7
80% 187 20.7
70% 168 20.7
60% 146 20.7
50% 127 20.7
40% 116 20.7
30% 99.7 20.8
20% 88.7 20.8
10% 78.1 20.8
Active Idle 54.9 20.8

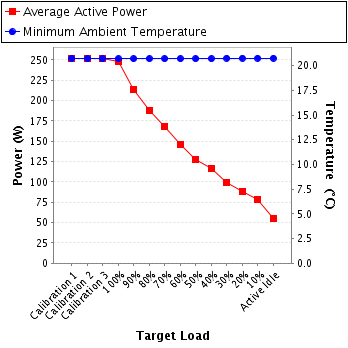

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91HB22770
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: SIMCO
Calibration Label: 5696169
Date of Calibration: 19-Jun-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: Connected to power supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 1.24 2.0 0.964 252 0.4%
Calibration 2 211 300.0 1.24 2.0 0.964 252 0.4%
Calibration 3 211 300.0 1.24 2.0 0.964 252 0.4%
100% 211 300.0 1.22 2.0 0.963 248 0.4%
90% 212 300.0 1.06 2.0 0.953 214 0.5%
80% 212 300.0 0.934 2.0 0.948 187 0.5%
70% 212 300.0 0.846 2.0 0.939 168 0.6%
60% 211 300.0 0.743 2.0 0.927 146 0.6%
50% 212 300.0 0.660 1.0 0.912 127 0.5%
40% 212 300.0 0.613 1.0 0.897 116 0.5%
30% 212 300.0 0.533 1.0 0.883 99.7 0.6%
20% 212 300.0 0.479 1.0 0.875 88.7 0.6%
10% 210 300.0 0.435 1.0 0.854 78.1 0.7%
Active Idle 211 300.0 0.339 0.5 0.767 54.9 0.6%
Power details for pwr1
