Tyan Computer Corporation B8228Y190X2-045V4H ssj_ops@100% = 843,336
ssj_ops@100% per JVM = 105,417
Test Sponsor: Advanced Micro Devices SPEC License #: 49 Test Method: Single Node
Tested By: AMD Performance Lab Test Location: Austin, TX, USA Test Date: Nov 6, 2012
Hardware Availability: Dec-2012 Software Availability: Jun-2012 Publication: Dec 4, 2012
System Source: Parts Built System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     799,151
Calibration 2     847,558
Calibration 3     847,364
ssj_ops@calibrated=847,461
100% 99.5% 847,461 843,336
90% 90.0% 762,715 762,728
80% 80.0% 677,969 678,268
70% 69.9% 593,223 592,598
60% 59.7% 508,476 506,069
50% 49.8% 423,730 422,222
40% 39.8% 338,984 337,368
30% 30.2% 254,238 256,268
20% 20.1% 169,492 170,120
10% 10.1% 84,746 85,183
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Tyan Computer Corporation
Model: B8228Y190X2-045V4H
Form Factor: 1 of 2 Blades in 1U Rackmount Frame
CPU Name: AMD Opteron 4376 HE
CPU Characteristics: 8 Core, 2.6GHz, 6MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 16 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 256 KB I + 128 KB D on chip per chip
Secondary Cache: 8 MB I+D on chip per chip
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 4 x 8 GB
Memory Details: 8GB 2Rx4 PC3L-12800R
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: 3Y Power Technology YM-2451C
Disk Drive: 1 x 128GB, SSD, 2.5" SATA, WD SSC-D0128SC-2100
Disk Controller: Integrated AMD SP5100 SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 GigaBit Dual Port
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Power profile
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209(JIT enabled, AOT enabled))
JVM Command-line Options: -Xms1875m -Xmn1400m -Xmx1875m -Xlp -Xaggressive -XlockReservation -Xcompressedrefs -Xnoloa -Xgcpolicy:gencon -Xthr:minimizeUserCPU -Xgcthreads2
JVM Affinity: start /affinity [03,0C,30,C0] /node [0|1]
JVM Instances: 8
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 0.25
Management Firmware Version: 1.00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
svrpwr-tyan.001 107,665
svrpwr-tyan.002 104,473
svrpwr-tyan.003 106,347
svrpwr-tyan.004 105,805
svrpwr-tyan.005 105,094
svrpwr-tyan.006 103,950
svrpwr-tyan.007 104,932
svrpwr-tyan.008 105,070
ssj_ops@100% 843,336
ssj_ops@100% per JVM 105,417

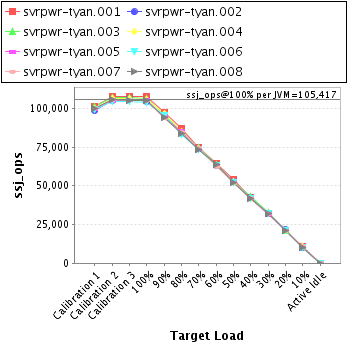

Graph of per-instance results
JVM 'svrpwr-tyan.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     101,396
Calibration 2     107,831
Calibration 3     107,727
ssj_ops@calibrated=107,779
100% 99.9% 107,779 107,665
90% 90.5% 97,001 97,500
80% 80.5% 86,223 86,769
70% 69.3% 75,445 74,741
60% 59.7% 64,667 64,390
50% 50.4% 53,890 54,282
40% 39.6% 43,112 42,687
30% 29.6% 32,334 31,924
20% 19.8% 21,556 21,329
10% 10.2% 10,778 11,001
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-tyan.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     98,542
Calibration 2     105,345
Calibration 3     106,199
ssj_ops@calibrated=105,772
100% 98.8% 105,772 104,473
90% 89.6% 95,195 94,815
80% 79.9% 84,618 84,501
70% 70.3% 74,040 74,342
60% 59.5% 63,463 62,912
50% 50.1% 52,886 52,962
40% 39.9% 42,309 42,170
30% 30.2% 31,732 31,936
20% 20.4% 21,154 21,595
10% 9.7% 10,577 10,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-tyan.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     100,956
Calibration 2     107,294
Calibration 3     107,075
ssj_ops@calibrated=107,184
100% 99.2% 107,184 106,347
90% 89.8% 96,466 96,246
80% 79.6% 85,747 85,356
70% 69.8% 75,029 74,838
60% 59.3% 64,311 63,605
50% 49.1% 53,592 52,618
40% 40.2% 42,874 43,077
30% 30.5% 32,155 32,671
20% 20.0% 21,437 21,423
10% 9.9% 10,718 10,620
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-tyan.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,629
Calibration 2     106,346
Calibration 3     106,254
ssj_ops@calibrated=106,300
100% 99.5% 106,300 105,805
90% 90.9% 95,670 96,600
80% 80.1% 85,040 85,158
70% 69.5% 74,410 73,888
60% 59.4% 63,780 63,151
50% 49.8% 53,150 52,920
40% 39.4% 42,520 41,883
30% 30.2% 31,890 32,107
20% 19.8% 21,260 21,077
10% 10.3% 10,630 10,979
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

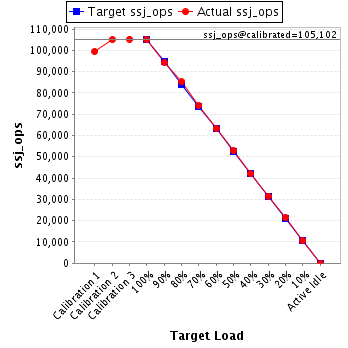

JVM 'svrpwr-tyan.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,423
Calibration 2     104,979
Calibration 3     105,226
ssj_ops@calibrated=105,102
100% 100.0% 105,102 105,094
90% 89.6% 94,592 94,197
80% 81.0% 84,082 85,147
70% 70.3% 73,572 73,891
60% 60.3% 63,061 63,341
50% 50.2% 52,551 52,791
40% 39.9% 42,041 41,986
30% 30.0% 31,531 31,556
20% 20.2% 21,020 21,278
10% 10.2% 10,510 10,678
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-tyan.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,327
Calibration 2     104,718
Calibration 3     104,726
ssj_ops@calibrated=104,722
100% 99.3% 104,722 103,950
90% 91.2% 94,250 95,514
80% 79.2% 83,777 82,964
70% 70.0% 73,305 73,289
60% 60.0% 62,833 62,803
50% 50.0% 52,361 52,346
40% 40.0% 41,889 41,924
30% 30.7% 31,417 32,178
20% 20.4% 20,944 21,395
10% 9.9% 10,472 10,333
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

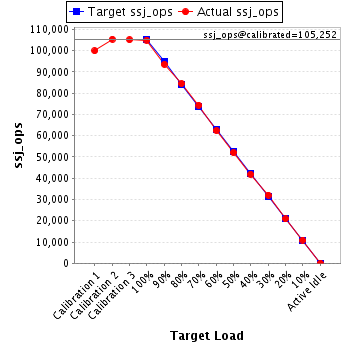

JVM 'svrpwr-tyan.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,921
Calibration 2     105,411
Calibration 3     105,092
ssj_ops@calibrated=105,252
100% 99.7% 105,252 104,932
90% 89.0% 94,727 93,634
80% 80.3% 84,201 84,478
70% 70.7% 73,676 74,410
60% 59.3% 63,151 62,416
50% 49.5% 52,626 52,068
40% 39.8% 42,101 41,857
30% 30.5% 31,576 32,090
20% 19.8% 21,050 20,847
10% 10.4% 10,525 10,927
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-tyan.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     99,957
Calibration 2     105,634
Calibration 3     105,065
ssj_ops@calibrated=105,350
100% 99.7% 105,350 105,070
90% 89.4% 94,815 94,221
80% 79.6% 84,280 83,895
70% 69.5% 73,745 73,199
60% 60.2% 63,210 63,451
50% 49.6% 52,675 52,234
40% 39.7% 42,140 41,784
30% 30.2% 31,605 31,807
20% 20.1% 21,070 21,176
10% 9.9% 10,535 10,433
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
