Tyan Computer Corporation B8228Y190X2-045V4H | SPECpower_ssj2008 = 3,052 overall ssj_ops/watt | ||||
Test Sponsor: | Advanced Micro Devices | SPEC License #: | 49 | Test Method: | Single Node |
Tested By: | AMD Performance Lab | Test Location: | Austin, TX, USA | Test Date: | Nov 8, 2012 |
Hardware Availability: | Dec-2012 | Software Availability: | Jun-2012 | Publication: | Dec 4, 2012 |
System Source: | Parts Built | System Designation: | Server | Power Provisioning: | Line-powered |

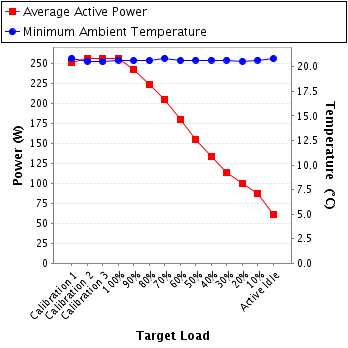

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 251 | 20.9 |
Calibration 2 | 256 | 20.6 |
Calibration 3 | 256 | 20.5 |
100% | 256 | 20.7 |
90% | 242 | 20.6 |
80% | 224 | 20.6 |
70% | 205 | 20.9 |
60% | 180 | 20.6 |
50% | 155 | 20.7 |
40% | 133 | 20.7 |
30% | 114 | 20.7 |
20% | 99.5 | 20.6 |
10% | 86.9 | 20.7 |
Active Idle | 60.9 | 20.8 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91M215719 |
Connectivity: | USB-to-Serial |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | Yokogawa Corporation of America |
Calibration Label: | 022412-91M215719 |
Date of Calibration: | 24-Feb-2012 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
Setup Description: | Unknown |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.10.26.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 211 | 300.0 | 1.26 | 2.0 | 0.946 | 251 | 0.5% |
Calibration 2 | 211 | 300.0 | 1.28 | 2.0 | 0.947 | 256 | 0.5% |
Calibration 3 | 211 | 300.0 | 1.28 | 2.0 | 0.947 | 256 | 0.5% |
100% | 211 | 300.0 | 1.28 | 2.0 | 0.947 | 256 | 0.5% |
90% | 211 | 300.0 | 1.22 | 2.0 | 0.944 | 242 | 0.5% |
80% | 211 | 300.0 | 1.13 | 2.0 | 0.938 | 224 | 0.5% |
70% | 211 | 300.0 | 1.04 | 2.0 | 0.929 | 205 | 0.5% |
60% | 211 | 300.0 | 0.933 | 1.0 | 0.913 | 180 | 0.4% |
50% | 211 | 300.0 | 0.822 | 1.0 | 0.892 | 155 | 0.4% |
40% | 211 | 300.0 | 0.723 | 1.0 | 0.871 | 133 | 0.5% |
30% | 212 | 300.0 | 0.633 | 1.0 | 0.847 | 114 | 0.5% |
20% | 211 | 300.0 | 0.571 | 1.0 | 0.825 | 99.5 | 0.6% |
10% | 211 | 300.0 | 0.520 | 0.5 | 0.790 | 86.9 | 0.5% |
Active Idle | 212 | 300.0 | 0.407 | 0.5 | 0.707 | 60.9 | 0.6% |
