Tyan Computer Corporation B8228Y190X2-045V4H | ssj_ops@100% = 971,064 ssj_ops@100% per JVM = 121,383 |
||||
Test Sponsor: | Advanced Micro Devices | SPEC License #: | 49 | Test Method: | Single Node |
Tested By: | AMD Performance Lab | Test Location: | Austin, TX, USA | Test Date: | Nov 8, 2012 |
Hardware Availability: | Dec-2012 | Software Availability: | Jun-2012 | Publication: | Dec 4, 2012 |
System Source: | Parts Built | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 935,537 | ||
Calibration 2 | 974,533 | ||
Calibration 3 | 976,386 | ||
ssj_ops@calibrated=975,459 | |||
100% | 99.5% | 975,459 | 971,064 |
90% | 90.1% | 877,913 | 879,218 |
80% | 79.7% | 780,368 | 777,335 |
70% | 70.1% | 682,822 | 684,076 |
60% | 60.0% | 585,276 | 584,877 |
50% | 49.9% | 487,730 | 486,671 |
40% | 40.1% | 390,184 | 391,022 |
30% | 29.8% | 292,638 | 290,508 |
20% | 19.9% | 195,092 | 193,837 |
10% | 10.0% | 97,546 | 97,613 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | None |
Hardware | |
---|---|
Hardware Vendor: | Tyan Computer Corporation |
Model: | B8228Y190X2-045V4H |
Form Factor: | 1 of 2 Blades in 1U Rackmount Frame |
CPU Name: | AMD Opteron 4386 |
CPU Characteristics: | 8 Core, 3.1GHz, 6MB L3 Cache |
CPU Frequency (MHz): | 3100 |
CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
Hardware Threads: | 16 (1 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 256 KB I + 128 KB D on chip per chip |
Secondary Cache: | 8 MB I+D on chip per chip |
Tertiary Cache: | 8 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 32 |
# and size of DIMM: | 4 x 8 GB |
Memory Details: | 8GB 2Rx4 PC3L-12800R |
Power Supply Quantity and Rating (W): | 1 x 450 |
Power Supply Details: | 3Y Power Technology YM-2451C |
Disk Drive: | 1 x 128GB, SSD, 2.5" SATA, WD SSC-D0128SC-2100 |
Disk Controller: | Integrated AMD SP5100 SATA Controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel 82576 GigaBit Dual Port |
NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Balanced Power profile |
Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise |
OS Version: | SP1(64-bit) |
Filesystem: | NTFS |
JVM Vendor: | IBM Corparation |
JVM Version: | IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209(JIT enabled, AOT enabled)) |
JVM Command-line Options: | -Xms1875m -Xmn1400m -Xmx1875m -Xlp -Xaggressive -XlockReservation -Xcompressedrefs -Xnoloa -Xgcpolicy:gencon -Xthr:minimizeUserCPU -Xgcthreads2 |
JVM Affinity: | start /affinity [03,0C,30,C0] /node [0|1] |
JVM Instances: | 8 |
JVM Initial Heap (MB): | 1875 |
JVM Maximum Heap (MB): | 1875 |
JVM Address Bits: | 64 |
Boot Firmware Version: | .25 |
Management Firmware Version: | 1.0 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows x64 |

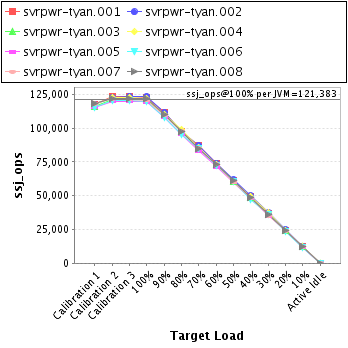

JVM Instance | ssj_ops@100% |
---|---|
svrpwr-tyan.001 | 122,427 |
svrpwr-tyan.002 | 123,605 |
svrpwr-tyan.003 | 121,127 |
svrpwr-tyan.004 | 121,959 |
svrpwr-tyan.005 | 119,729 |
svrpwr-tyan.006 | 119,768 |
svrpwr-tyan.007 | 120,784 |
svrpwr-tyan.008 | 121,664 |
ssj_ops@100% | 971,064 |
ssj_ops@100% per JVM | 121,383 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 117,482 | ||
Calibration 2 | 123,326 | ||
Calibration 3 | 123,561 | ||
ssj_ops@calibrated=123,444 | |||
100% | 99.2% | 123,444 | 122,427 |
90% | 90.6% | 111,099 | 111,779 |
80% | 79.2% | 98,755 | 97,821 |
70% | 70.9% | 86,411 | 87,492 |
60% | 59.8% | 74,066 | 73,774 |
50% | 49.9% | 61,722 | 61,620 |
40% | 39.9% | 49,378 | 49,246 |
30% | 29.9% | 37,033 | 36,892 |
20% | 19.6% | 24,689 | 24,166 |
10% | 9.9% | 12,344 | 12,262 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 117,514 | ||
Calibration 2 | 122,937 | ||
Calibration 3 | 123,730 | ||
ssj_ops@calibrated=123,333 | |||
100% | 100.2% | 123,333 | 123,605 |
90% | 90.5% | 111,000 | 111,648 |
80% | 79.1% | 98,667 | 97,564 |
70% | 70.7% | 86,333 | 87,227 |
60% | 60.1% | 74,000 | 74,102 |
50% | 50.1% | 61,667 | 61,829 |
40% | 40.5% | 49,333 | 49,918 |
30% | 30.3% | 37,000 | 37,310 |
20% | 20.2% | 24,667 | 24,969 |
10% | 9.9% | 12,333 | 12,229 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 115,936 | ||
Calibration 2 | 121,354 | ||
Calibration 3 | 121,775 | ||
ssj_ops@calibrated=121,565 | |||
100% | 99.6% | 121,565 | 121,127 |
90% | 90.7% | 109,408 | 110,304 |
80% | 80.1% | 97,252 | 97,414 |
70% | 70.1% | 85,095 | 85,266 |
60% | 60.1% | 72,939 | 73,053 |
50% | 50.0% | 60,782 | 60,837 |
40% | 40.2% | 48,626 | 48,883 |
30% | 29.9% | 36,469 | 36,329 |
20% | 19.8% | 24,313 | 24,060 |
10% | 10.1% | 12,156 | 12,299 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 117,253 | ||
Calibration 2 | 122,811 | ||
Calibration 3 | 123,015 | ||
ssj_ops@calibrated=122,913 | |||
100% | 99.2% | 122,913 | 121,959 |
90% | 89.5% | 110,621 | 109,948 |
80% | 80.4% | 98,330 | 98,796 |
70% | 70.1% | 86,039 | 86,104 |
60% | 59.6% | 73,748 | 73,275 |
50% | 49.2% | 61,456 | 60,528 |
40% | 40.5% | 49,165 | 49,718 |
30% | 30.4% | 36,874 | 37,319 |
20% | 19.6% | 24,583 | 24,113 |
10% | 10.1% | 12,291 | 12,370 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 115,674 | ||
Calibration 2 | 120,151 | ||
Calibration 3 | 120,105 | ||
ssj_ops@calibrated=120,128 | |||
100% | 99.7% | 120,128 | 119,729 |
90% | 89.9% | 108,115 | 107,964 |
80% | 79.6% | 96,102 | 95,629 |
70% | 69.4% | 84,089 | 83,324 |
60% | 59.5% | 72,077 | 71,527 |
50% | 49.9% | 60,064 | 59,932 |
40% | 40.2% | 48,051 | 48,237 |
30% | 29.4% | 36,038 | 35,354 |
20% | 20.4% | 24,026 | 24,448 |
10% | 10.0% | 12,013 | 11,954 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 115,212 | ||
Calibration 2 | 120,238 | ||
Calibration 3 | 120,581 | ||
ssj_ops@calibrated=120,410 | |||
100% | 99.5% | 120,410 | 119,768 |
90% | 89.8% | 108,369 | 108,125 |
80% | 79.0% | 96,328 | 95,149 |
70% | 70.3% | 84,287 | 84,679 |
60% | 60.0% | 72,246 | 72,272 |
50% | 50.3% | 60,205 | 60,622 |
40% | 39.5% | 48,164 | 47,591 |
30% | 29.9% | 36,123 | 35,983 |
20% | 19.6% | 24,082 | 23,590 |
10% | 9.9% | 12,041 | 11,975 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 118,020 | ||
Calibration 2 | 121,879 | ||
Calibration 3 | 121,618 | ||
ssj_ops@calibrated=121,749 | |||
100% | 99.2% | 121,749 | 120,784 |
90% | 89.9% | 109,574 | 109,480 |
80% | 80.2% | 97,399 | 97,679 |
70% | 70.1% | 85,224 | 85,338 |
60% | 60.3% | 73,049 | 73,466 |
50% | 49.3% | 60,874 | 59,968 |
40% | 39.9% | 48,700 | 48,550 |
30% | 29.0% | 36,525 | 35,303 |
20% | 19.7% | 24,350 | 24,024 |
10% | 10.1% | 12,175 | 12,276 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 118,446 | ||
Calibration 2 | 121,836 | ||
Calibration 3 | 122,001 | ||
ssj_ops@calibrated=121,919 | |||
100% | 99.8% | 121,919 | 121,664 |
90% | 90.2% | 109,727 | 109,971 |
80% | 79.8% | 97,535 | 97,283 |
70% | 69.4% | 85,343 | 84,647 |
60% | 60.2% | 73,151 | 73,406 |
50% | 50.3% | 60,959 | 61,335 |
40% | 40.1% | 48,768 | 48,879 |
30% | 29.5% | 36,576 | 36,018 |
20% | 20.1% | 24,384 | 24,466 |
10% | 10.0% | 12,192 | 12,249 |
Active Idle | 0 | 0 |
