Tyan Computer Corporation B8228Y190X2-045V4H ssj_ops@100% = 373,385
ssj_ops@100% per JVM = 93,346
Test Sponsor: Advanced Micro Devices SPEC License #: 49 Test Method: Single Node
Tested By: AMD Performance Lab Test Location: Austin, TX, USA Test Date: Nov 7, 2012
Hardware Availability: Dec-2012 Software Availability: Jun-2012 Publication: Dec 4, 2012
System Source: Parts Built System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     353,075
Calibration 2     374,740
Calibration 3     376,446
ssj_ops@calibrated=375,593
100% 99.4% 375,593 373,385
90% 90.1% 338,034 338,288
80% 80.2% 300,474 301,081
70% 70.0% 262,915 262,940
60% 60.2% 225,356 225,930
50% 50.0% 187,796 187,954
40% 39.8% 150,237 149,603
30% 29.8% 112,678 111,990
20% 19.8% 75,119 74,346
10% 9.9% 37,559 37,046
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Tyan Computer Corporation
Model: B8228Y190X2-045V4H
Form Factor: 1 of 2 Blades in 1U Rackmount Frame
CPU Name: AMD Opteron 4310 EE
CPU Characteristics: 4 Core, 2.2GHz, 6MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 256 KB I + 128 KB D on chip per chip
Secondary Cache: 8 MB I+D on chip per chip
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 4 x 8 GB
Memory Details: 8GB 2Rx4 PC3L-12800R
Power Supply Quantity and Rating (W): 1 x 450
Power Supply Details: 3Y Power Technology YM-2451C
Disk Drive: 1 x 128GB, SSD, 2.5" SATA, WD SSC-D0128SC-2100
Disk Controller: Integrated AMD SP5100 SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel 82576 GigaBit Dual Port
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Power profile
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: SP1(64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corparation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209(JIT enabled, AOT enabled))
JVM Command-line Options: -Xms1875m -Xmn1400m -Xmx1875m -Xlp -Xaggressive -XlockReservation -Xcompressedrefs -Xnoloa -Xgcpolicy:gencon -Xthr:minimizeUserCPU -Xgcthreads2
JVM Affinity: start /affinity [03,0C,30,C0] /node [0|1]
JVM Instances: 4
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: .25
Management Firmware Version: 1.0
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
svrpwr-tyan.001 94,707
svrpwr-tyan.002 94,108
svrpwr-tyan.003 90,885
svrpwr-tyan.004 93,684
ssj_ops@100% 373,385
ssj_ops@100% per JVM 93,346
Graph of per-instance results
JVM 'svrpwr-tyan.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,351
Calibration 2     94,680
Calibration 3     95,754
ssj_ops@calibrated=95,217
100% 99.5% 95,217 94,707
90% 90.0% 85,695 85,657
80% 80.3% 76,173 76,420
70% 70.3% 66,652 66,963
60% 60.1% 57,130 57,236
50% 50.0% 47,608 47,603
40% 40.0% 38,087 38,133
30% 30.2% 28,565 28,767
20% 19.6% 19,043 18,679
10% 10.2% 9,522 9,699
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

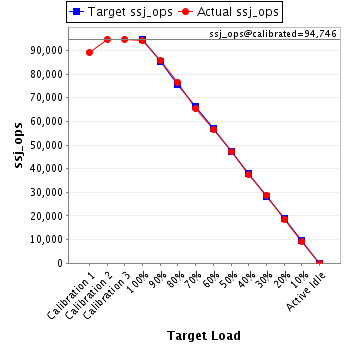

JVM 'svrpwr-tyan.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,139
Calibration 2     94,691
Calibration 3     94,800
ssj_ops@calibrated=94,746
100% 99.3% 94,746 94,108
90% 90.4% 85,271 85,605
80% 80.7% 75,796 76,489
70% 69.1% 66,322 65,491
60% 59.8% 56,847 56,617
50% 49.7% 47,373 47,095
40% 39.6% 37,898 37,539
30% 30.4% 28,424 28,804
20% 19.8% 18,949 18,723
10% 9.7% 9,475 9,191
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-tyan.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,060
Calibration 2     91,830
Calibration 3     91,999
ssj_ops@calibrated=91,915
100% 98.9% 91,915 90,885
90% 90.4% 82,723 83,101
80% 80.0% 73,532 73,500
70% 70.1% 64,340 64,429
60% 60.4% 55,149 55,493
50% 50.0% 45,957 45,995
40% 39.6% 36,766 36,433
30% 29.4% 27,574 27,064
20% 19.7% 18,383 18,095
10% 9.9% 9,191 9,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'svrpwr-tyan.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,525
Calibration 2     93,539
Calibration 3     93,893
ssj_ops@calibrated=93,716
100% 100.0% 93,716 93,684
90% 89.6% 84,344 83,925
80% 79.7% 74,973 74,671
70% 70.5% 65,601 66,057
60% 60.4% 56,229 56,584
50% 50.4% 46,858 47,261
40% 40.0% 37,486 37,499
30% 29.2% 28,115 27,354
20% 20.1% 18,743 18,849
10% 9.7% 9,372 9,069
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
