SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AW2000h-Aw170h F2 | SPECpower_ssj2008 = 3,400 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Multi Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Dec 12, 2012 |
| Hardware Availability: | Sep-2012 | Software Availability: | Mar-2012 | Publication: | Jan 4, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

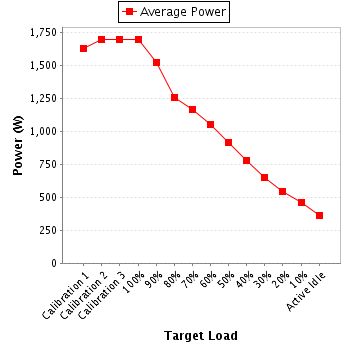

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,632 | 22.6 |
| Calibration 2 | 1,695 | 22.8 |
| Calibration 3 | 1,699 | 22.4 |
| 100% | 1,700 | 22.8 |
| 90% | 1,526 | 22.7 |
| 80% | 1,257 | 22.7 |
| 70% | 1,169 | 23.1 |
| 60% | 1,052 | 22.9 |
| 50% | 915 | 23.1 |
| 40% | 779 | 22.9 |
| 30% | 649 | 23.1 |
| 20% | 548 | 22.9 |
| 10% | 461 | 22.9 |
| Active Idle | 364 | 22.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 12-05-BAC-113-01 |
| Date of Calibration: | 10-May-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 211 | 300.0 | 7.78 | 10.0 | 0.994 | 1,632 | 0.4% |
| Calibration 2 | 211 | 300.0 | 8.08 | 10.0 | 0.994 | 1,695 | 0.3% |
| Calibration 3 | 211 | 300.0 | 8.09 | 10.0 | 0.994 | 1,699 | 0.3% |
| 100% | 211 | 300.0 | 8.10 | 10.0 | 0.994 | 1,700 | 0.3% |
| 90% | 212 | 300.0 | 7.25 | 10.0 | 0.994 | 1,526 | 0.4% |
| 80% | 213 | 300.0 | 5.95 | 10.0 | 0.992 | 1,257 | 0.4% |
| 70% | 213 | 300.0 | 5.54 | 10.0 | 0.992 | 1,169 | 0.4% |
| 60% | 214 | 300.0 | 4.98 | 5.0 | 0.990 | 1,052 | 0.3% |
| 50% | 214 | 300.0 | 4.32 | 5.0 | 0.989 | 915 | 0.3% |
| 40% | 215 | 300.0 | 3.67 | 5.0 | 0.987 | 779 | 0.4% |
| 30% | 215 | 300.0 | 3.06 | 5.0 | 0.987 | 649 | 0.4% |
| 20% | 215 | 300.0 | 2.58 | 5.0 | 0.986 | 548 | 0.5% |
| 10% | 215 | 300.0 | 2.18 | 2.0 | 0.984 | 461 | 0.3% |
| Active Idle | 215 | 300.0 | 1.73 | 2.0 | 0.979 | 364 | 0.4% |
