Dell Inc. PowerEdge C6105 (AMD Opteron 4376HE, 2.6 GHz) ssj_ops@100% = 794,440
ssj_ops@100% per JVM = 198,610
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Sep 14, 2012
Hardware Availability: Feb-2013 Software Availability: Jun-2012 Publication: Jan 9, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     784,649
Calibration 2     799,138
Calibration 3     799,631
ssj_ops@calibrated=799,384
100% 99.4% 799,384 794,440
90% 90.1% 719,446 720,246
80% 80.0% 639,508 639,213
70% 69.4% 559,569 554,970
60% 60.0% 479,631 479,672
50% 50.0% 399,692 399,321
40% 40.1% 319,754 320,891
30% 30.0% 239,815 239,879
20% 20.2% 159,877 161,484
10% 10.0% 79,938 80,152
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge C6105 (AMD Opteron 4376HE, 2.6 GHz)
Form Factor: Blade
CPU Name: AMD Opteron 4376HE
CPU Characteristics: 8-Core, 2.6GHz, 8MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 16 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 256 KB I + 128 KB D on chip per chip
Secondary Cache: 8 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC ; slots A0,A1,B0,B1 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 500GB 2.5" SATA 7200RPM (Dell PN: TH2NR)
Disk Controller: Onboard SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82576 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Plan in OS
Operating System (OS): Microsoft Windows 2008 Enterprise x64 Edition
OS Version: R2 SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 2.1.7
Management Firmware Version: 1.28
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-UEMOG929OQ1node4.001 199,688
WIN-UEMOG929OQ1node4.002 201,017
WIN-UEMOG929OQ1node4.003 199,172
WIN-UEMOG929OQ1node4.004 194,563
ssj_ops@100% 794,440
ssj_ops@100% per JVM 198,610

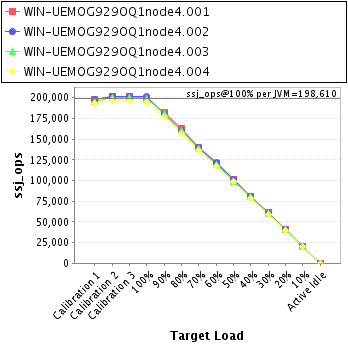

Graph of per-instance results
JVM 'WIN-UEMOG929OQ1node4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,167
Calibration 2     201,060
Calibration 3     201,542
ssj_ops@calibrated=201,301
100% 99.2% 201,301 199,688
90% 90.6% 181,171 182,327
80% 80.7% 161,041 162,447
70% 69.4% 140,911 139,726
60% 60.1% 120,781 120,897
50% 50.4% 100,651 101,396
40% 39.9% 80,520 80,366
30% 30.5% 60,390 61,435
20% 20.1% 40,260 40,381
10% 9.9% 20,130 19,976
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UEMOG929OQ1node4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,682
Calibration 2     201,890
Calibration 3     201,926
ssj_ops@calibrated=201,908
100% 99.6% 201,908 201,017
90% 89.3% 181,717 180,387
80% 79.2% 161,526 159,877
70% 69.0% 141,335 139,379
60% 60.2% 121,145 121,498
50% 50.0% 100,954 100,886
40% 40.2% 80,763 81,248
30% 29.7% 60,572 60,054
20% 20.1% 40,382 40,676
10% 9.9% 20,191 20,067
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UEMOG929OQ1node4.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,808
Calibration 2     199,993
Calibration 3     199,955
ssj_ops@calibrated=199,974
100% 99.6% 199,974 199,172
90% 90.3% 179,976 180,674
80% 80.2% 159,979 160,462
70% 69.6% 139,982 139,112
60% 59.9% 119,984 119,732
50% 49.4% 99,987 98,723
40% 40.2% 79,990 80,427
30% 29.9% 59,992 59,724
20% 20.3% 39,995 40,516
10% 10.2% 19,997 20,430
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UEMOG929OQ1node4.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     192,992
Calibration 2     196,195
Calibration 3     196,209
ssj_ops@calibrated=196,202
100% 99.2% 196,202 194,563
90% 90.1% 176,582 176,858
80% 79.7% 156,961 156,428
70% 69.7% 137,341 136,754
60% 59.9% 117,721 117,544
50% 50.1% 98,101 98,317
40% 40.2% 78,481 78,851
30% 29.9% 58,861 58,665
20% 20.3% 39,240 39,911
10% 10.0% 19,620 19,679
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
