Dell Inc. PowerEdge C6105 (AMD Opteron 4376HE, 2.6 GHz) ssj_ops@100% = 805,561
ssj_ops@100% per JVM = 201,390
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Sep 14, 2012
Hardware Availability: Feb-2013 Software Availability: Jun-2012 Publication: Jan 9, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     791,091
Calibration 2     807,157
Calibration 3     807,779
ssj_ops@calibrated=807,468
100% 99.8% 807,468 805,561
90% 89.9% 726,721 726,128
80% 79.6% 645,974 643,018
70% 70.4% 565,228 568,746
60% 59.8% 484,481 482,751
50% 49.6% 403,734 400,842
40% 39.9% 322,987 322,524
30% 29.9% 242,240 241,508
20% 20.1% 161,494 162,311
10% 9.9% 80,747 79,557
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge C6105 (AMD Opteron 4376HE, 2.6 GHz)
Form Factor: Blade
CPU Name: AMD Opteron 4376HE
CPU Characteristics: 8-Core, 2.6GHz, 8MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 16 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 256 KB I + 128 KB D on chip per chip
Secondary Cache: 8 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC ; slots A0,A1,B0,B1 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 500GB 2.5" SATA 7200RPM (Dell PN: TH2NR)
Disk Controller: Onboard SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82576 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Plan in OS
Operating System (OS): Microsoft Windows 2008 Enterprise x64 Edition
OS Version: R2 SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 2.1.7
Management Firmware Version: 1.28
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-UEMOG929Onode1.001 204,237
WIN-UEMOG929Onode1.002 198,984
WIN-UEMOG929Onode1.003 200,539
WIN-UEMOG929Onode1.004 201,800
ssj_ops@100% 805,561
ssj_ops@100% per JVM 201,390

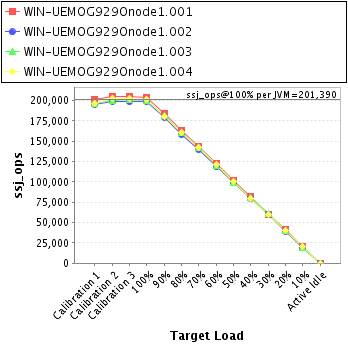

Graph of per-instance results
JVM 'WIN-UEMOG929Onode1.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     201,068
Calibration 2     204,554
Calibration 3     205,497
ssj_ops@calibrated=205,026
100% 99.6% 205,026 204,237
90% 90.0% 184,523 184,588
80% 79.7% 164,021 163,357
70% 70.2% 143,518 143,870
60% 60.1% 123,016 123,165
50% 49.5% 102,513 101,410
40% 40.1% 82,010 82,157
30% 29.4% 61,508 60,319
20% 20.4% 41,005 41,835
10% 9.8% 20,503 20,182
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UEMOG929Onode1.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     195,791
Calibration 2     199,337
Calibration 3     198,596
ssj_ops@calibrated=198,967
100% 100.0% 198,967 198,984
90% 90.2% 179,070 179,534
80% 79.4% 159,173 158,014
70% 70.3% 139,277 139,888
60% 59.7% 119,380 118,712
50% 49.9% 99,483 99,246
40% 40.1% 79,587 79,871
30% 30.4% 59,690 60,399
20% 19.9% 39,793 39,601
10% 9.8% 19,897 19,470
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UEMOG929Onode1.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,103
Calibration 2     200,540
Calibration 3     201,364
ssj_ops@calibrated=200,952
100% 99.8% 200,952 200,539
90% 90.2% 180,857 181,218
80% 79.9% 160,762 160,641
70% 70.7% 140,666 142,159
60% 59.6% 120,571 119,793
50% 49.6% 100,476 99,607
40% 40.1% 80,381 80,621
30% 30.3% 60,286 60,801
20% 20.2% 40,190 40,644
10% 9.8% 20,095 19,719
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UEMOG929Onode1.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,130
Calibration 2     202,726
Calibration 3     202,321
ssj_ops@calibrated=202,523
100% 99.6% 202,523 201,800
90% 89.3% 182,271 180,788
80% 79.5% 162,019 161,007
70% 70.5% 141,766 142,829
60% 59.8% 121,514 121,081
50% 49.7% 101,262 100,579
40% 39.4% 81,009 79,875
30% 29.6% 60,757 59,990
20% 19.9% 40,505 40,231
10% 10.0% 20,252 20,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
