Dell Inc. PowerEdge C6105 (AMD Opteron 4376HE, 2.6 GHz) ssj_ops@100% = 807,186
ssj_ops@100% per JVM = 201,796
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Sep 14, 2012
Hardware Availability: Feb-2013 Software Availability: Jun-2012 Publication: Jan 9, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     794,855
Calibration 2     808,833
Calibration 3     808,497
ssj_ops@calibrated=808,665
100% 99.8% 808,665 807,186
90% 90.0% 727,799 727,775
80% 79.7% 646,932 644,226
70% 70.3% 566,066 568,311
60% 60.0% 485,199 485,065
50% 49.9% 404,333 403,695
40% 39.7% 323,466 321,013
30% 29.9% 242,600 242,064
20% 20.1% 161,733 162,672
10% 10.0% 80,867 80,933
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge C6105 (AMD Opteron 4376HE, 2.6 GHz)
Form Factor: Blade
CPU Name: AMD Opteron 4376HE
CPU Characteristics: 8-Core, 2.6GHz, 8MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 16 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 256 KB I + 128 KB D on chip per chip
Secondary Cache: 8 MB I+D on chip per chip, 2 MB shared / 2 cores
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 4 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC ; slots A0,A1,B0,B1 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 500GB 2.5" SATA 7200RPM (Dell PN: TH2NR)
Disk Controller: Onboard SATA
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82576 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Plan in OS
Operating System (OS): Microsoft Windows 2008 Enterprise x64 Edition
OS Version: R2 SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn1400m -Xms1875m -Xmx1875m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: 2.1.7
Management Firmware Version: 1.28
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-UEMOG929Onode3.001 204,512
WIN-UEMOG929Onode3.002 201,323
WIN-UEMOG929Onode3.003 199,220
WIN-UEMOG929Onode3.004 202,131
ssj_ops@100% 807,186
ssj_ops@100% per JVM 201,796

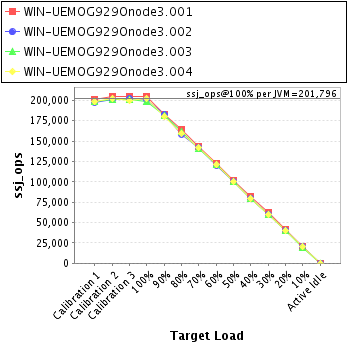

Graph of per-instance results
JVM 'WIN-UEMOG929Onode3.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     200,875
Calibration 2     204,811
Calibration 3     205,121
ssj_ops@calibrated=204,966
100% 99.8% 204,966 204,512
90% 89.3% 184,470 183,027
80% 80.2% 163,973 164,455
70% 70.1% 143,476 143,608
60% 59.5% 122,980 122,036
50% 49.7% 102,483 101,771
40% 39.9% 81,986 81,707
30% 30.1% 61,490 61,772
20% 20.4% 40,993 41,810
10% 10.2% 20,497 20,833
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UEMOG929Onode3.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     197,649
Calibration 2     200,932
Calibration 3     201,963
ssj_ops@calibrated=201,448
100% 99.9% 201,448 201,323
90% 90.6% 181,303 182,544
80% 78.6% 161,158 158,425
70% 70.3% 141,013 141,716
60% 59.8% 120,869 120,528
50% 50.0% 100,724 100,640
40% 39.7% 80,579 79,960
30% 30.0% 60,434 60,401
20% 20.0% 40,290 40,360
10% 10.0% 20,145 20,227
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UEMOG929Onode3.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,104
Calibration 2     201,079
Calibration 3     201,509
ssj_ops@calibrated=201,294
100% 99.0% 201,294 199,220
90% 90.2% 181,164 181,480
80% 80.2% 161,035 161,438
70% 70.2% 140,906 141,212
60% 60.3% 120,776 121,447
50% 50.2% 100,647 100,973
40% 39.5% 80,518 79,458
30% 29.9% 60,388 60,112
20% 20.1% 40,259 40,508
10% 9.9% 20,129 19,875
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-UEMOG929Onode3.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     198,227
Calibration 2     202,011
Calibration 3     199,904
ssj_ops@calibrated=200,958
100% 100.6% 200,958 202,131
90% 89.9% 180,862 180,725
80% 79.6% 160,766 159,908
70% 70.5% 140,670 141,775
60% 60.2% 120,575 121,054
50% 49.9% 100,479 100,311
40% 39.8% 80,383 79,887
30% 29.7% 60,287 59,779
20% 19.9% 40,192 39,994
10% 10.0% 20,096 19,997
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
