SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2013 Standard Performance Evaluation Corporation
| Acer Incorporated Acer AR580 F2 | SPECpower_ssj2008 = 4,134 overall ssj_ops/watt | ||||
| Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
| Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Dec 13, 2012 |
| Hardware Availability: | Jan-2013 | Software Availability: | Oct-2012 | Publication: | Jan 9, 2013 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

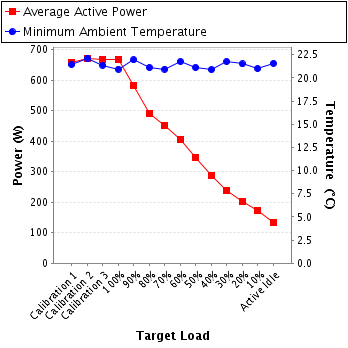

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 660 | 21.4 |
| Calibration 2 | 672 | 22.1 |
| Calibration 3 | 669 | 21.4 |
| 100% | 667 | 20.9 |
| 90% | 582 | 21.9 |
| 80% | 490 | 21.1 |
| 70% | 452 | 20.9 |
| 60% | 405 | 21.8 |
| 50% | 346 | 21.1 |
| 40% | 286 | 20.9 |
| 30% | 239 | 21.8 |
| 20% | 202 | 21.5 |
| 10% | 172 | 21.0 |
| Active Idle | 134 | 21.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H534921 |
| Connectivity: | RS232 |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 12-05-BAC-113-01 |
| Date of Calibration: | 10-May-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | None |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.0.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 214 | 300.0 | 3.12 | 5.0 | 0.993 | 660 | 0.4% |
| Calibration 2 | 213 | 300.0 | 3.17 | 5.0 | 0.993 | 672 | 0.4% |
| Calibration 3 | 213 | 300.0 | 3.16 | 5.0 | 0.993 | 669 | 0.4% |
| 100% | 213 | 300.0 | 3.15 | 5.0 | 0.993 | 667 | 0.4% |
| 90% | 214 | 300.0 | 2.75 | 5.0 | 0.992 | 582 | 0.4% |
| 80% | 214 | 300.0 | 2.32 | 5.0 | 0.991 | 490 | 0.5% |
| 70% | 214 | 300.0 | 2.13 | 5.0 | 0.989 | 452 | 0.5% |
| 60% | 214 | 300.0 | 1.91 | 5.0 | 0.986 | 405 | 0.6% |
| 50% | 214 | 300.0 | 1.65 | 5.0 | 0.980 | 346 | 0.6% |
| 40% | 215 | 300.0 | 1.37 | 5.0 | 0.972 | 286 | 0.7% |
| 30% | 215 | 300.0 | 1.15 | 2.0 | 0.966 | 239 | 0.5% |
| 20% | 215 | 300.0 | 0.981 | 2.0 | 0.958 | 202 | 0.5% |
| 10% | 215 | 300.0 | 0.843 | 1.0 | 0.948 | 172 | 0.4% |
| Active Idle | 215 | 300.0 | 0.672 | 1.0 | 0.928 | 134 | 0.5% |
