Acer Incorporated Acer AR585 F1 | SPECpower_ssj2008 = 4,096 overall ssj_ops/watt | ||||
Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Dec 21, 2012 |
Hardware Availability: | Nov-2012 | Software Availability: | Mar-2012 | Publication: | Jan 9, 2013 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

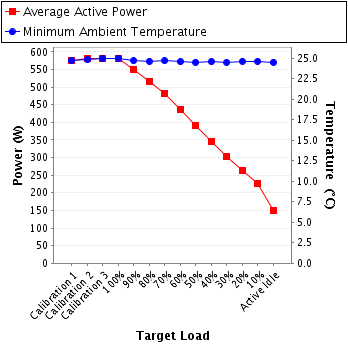

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 576 | 24.7 |
Calibration 2 | 582 | 24.8 |
Calibration 3 | 582 | 24.9 |
100% | 581 | 25.0 |
90% | 549 | 24.7 |
80% | 515 | 24.6 |
70% | 481 | 24.7 |
60% | 437 | 24.6 |
50% | 392 | 24.5 |
40% | 347 | 24.6 |
30% | 304 | 24.5 |
20% | 264 | 24.6 |
10% | 225 | 24.6 |
Active Idle | 149 | 24.5 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91H534921 |
Connectivity: | RS232 |
Input Connection: | Default |
Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
Accredited by: | ETC, Taiwan |
Calibration Label: | 12-05-BAC-113-01 |
Date of Calibration: | 10-May-2012 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
Setup Description: | None |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.0.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT airflow intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 216 | 300.0 | 2.74 | 5.0 | 0.970 | 576 | 0.5% |
Calibration 2 | 216 | 300.0 | 2.77 | 5.0 | 0.971 | 582 | 0.5% |
Calibration 3 | 217 | 300.0 | 2.77 | 5.0 | 0.971 | 582 | 0.5% |
100% | 217 | 300.0 | 2.76 | 5.0 | 0.971 | 581 | 0.5% |
90% | 217 | 300.0 | 2.62 | 5.0 | 0.968 | 549 | 0.5% |
80% | 217 | 300.0 | 2.46 | 5.0 | 0.965 | 515 | 0.5% |
70% | 217 | 300.0 | 2.30 | 5.0 | 0.962 | 481 | 0.5% |
60% | 218 | 300.0 | 2.09 | 5.0 | 0.959 | 437 | 0.6% |
50% | 218 | 300.0 | 1.89 | 2.0 | 0.951 | 392 | 0.4% |
40% | 218 | 300.0 | 1.70 | 2.0 | 0.939 | 347 | 0.4% |
30% | 218 | 300.0 | 1.51 | 2.0 | 0.924 | 304 | 0.4% |
20% | 219 | 300.0 | 1.33 | 2.0 | 0.908 | 264 | 0.5% |
10% | 219 | 300.0 | 1.17 | 1.0 | 0.883 | 225 | 0.5% |
Active Idle | 219 | 300.0 | 0.854 | 1.0 | 0.798 | 149 | 0.5% |
