Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.60 GHz) ssj_ops@100% = 1,419,561
ssj_ops@100% per JVM = 88,723
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Jan 11, 2013
Hardware Availability: Dec-2012 Software Availability: Jun-2012 Publication: Feb 20, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,340,911
Calibration 2     1,421,775
Calibration 3     1,422,865
ssj_ops@calibrated=1,422,320
100% 99.8% 1,422,320 1,419,561
90% 89.8% 1,280,088 1,276,720
80% 79.9% 1,137,856 1,136,250
70% 70.2% 995,624 997,866
60% 59.8% 853,392 850,767
50% 50.2% 711,160 713,919
40% 39.9% 568,928 566,951
30% 29.8% 426,696 424,427
20% 19.9% 284,464 283,298
10% 9.9% 142,232 141,206
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.60 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-3, B1-3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N: DYW42
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Dual-Port Intel X520-k Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -Xlp -Xconcurrentlevel0 -XtlhPrefetch -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.4.9
Management Firmware Version: iDRAC7 1.30.30 (Build 39)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M620-06.001 88,764
M620-06.002 88,231
M620-06.003 88,639
M620-06.004 87,523
M620-06.005 89,102
M620-06.006 88,478
M620-06.007 89,300
M620-06.008 89,067
M620-06.009 89,467
M620-06.010 88,271
M620-06.011 87,939
M620-06.012 88,821
M620-06.013 89,000
M620-06.014 89,799
M620-06.015 88,003
M620-06.016 89,157
ssj_ops@100% 1,419,561
ssj_ops@100% per JVM 88,723

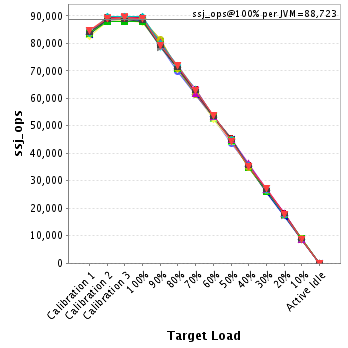

Graph of per-instance results
JVM 'M620-06.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,826
Calibration 2     89,415
Calibration 3     89,655
ssj_ops@calibrated=89,535
100% 99.1% 89,535 88,764
90% 89.6% 80,582 80,223
80% 79.2% 71,628 70,906
70% 70.7% 62,675 63,266
60% 59.5% 53,721 53,278
50% 50.1% 44,768 44,855
40% 39.5% 35,814 35,328
30% 29.7% 26,861 26,580
20% 20.0% 17,907 17,884
10% 9.7% 8,954 8,666
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-06.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,927
Calibration 2     88,462
Calibration 3     88,014
ssj_ops@calibrated=88,238
100% 100.0% 88,238 88,231
90% 89.4% 79,414 78,917
80% 79.1% 70,590 69,812
70% 69.6% 61,766 61,440
60% 59.8% 52,943 52,766
50% 49.5% 44,119 43,684
40% 40.4% 35,295 35,655
30% 30.3% 26,471 26,701
20% 20.1% 17,648 17,774
10% 10.2% 8,824 9,026
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-06.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,191
Calibration 2     88,865
Calibration 3     88,805
ssj_ops@calibrated=88,835
100% 99.8% 88,835 88,639
90% 90.7% 79,951 80,551
80% 79.9% 71,068 70,992
70% 71.1% 62,184 63,163
60% 59.2% 53,301 52,575
50% 50.0% 44,417 44,427
40% 40.1% 35,534 35,622
30% 29.6% 26,650 26,294
20% 20.0% 17,767 17,804
10% 9.9% 8,883 8,787
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-06.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     82,654
Calibration 2     88,027
Calibration 3     88,304
ssj_ops@calibrated=88,165
100% 99.3% 88,165 87,523
90% 89.9% 79,349 79,298
80% 80.1% 70,532 70,642
70% 70.6% 61,716 62,259
60% 59.4% 52,899 52,370
50% 50.2% 44,083 44,302
40% 40.3% 35,266 35,574
30% 30.4% 26,450 26,841
20% 19.6% 17,633 17,261
10% 9.8% 8,817 8,674
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-06.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,941
Calibration 2     89,518
Calibration 3     89,415
ssj_ops@calibrated=89,467
100% 99.6% 89,467 89,102
90% 89.7% 80,520 80,262
80% 79.3% 71,574 70,982
70% 71.2% 62,627 63,694
60% 59.7% 53,680 53,395
50% 49.6% 44,733 44,366
40% 39.8% 35,787 35,573
30% 30.3% 26,840 27,121
20% 20.4% 17,893 18,283
10% 10.0% 8,947 8,991
Active Idle   0 0

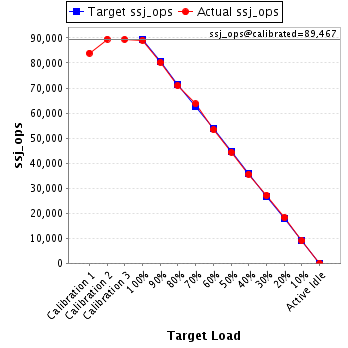

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-06.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,138
Calibration 2     88,627
Calibration 3     88,588
ssj_ops@calibrated=88,608
100% 99.9% 88,608 88,478
90% 88.6% 79,747 78,543
80% 80.4% 70,886 71,264
70% 69.9% 62,025 61,964
60% 60.3% 53,165 53,466
50% 49.9% 44,304 44,177
40% 39.6% 35,443 35,069
30% 29.7% 26,582 26,354
20% 19.9% 17,722 17,591
10% 10.1% 8,861 8,967
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-06.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,396
Calibration 2     88,365
Calibration 3     88,942
ssj_ops@calibrated=88,654
100% 100.7% 88,654 89,300
90% 90.2% 79,788 79,992
80% 80.1% 70,923 71,042
70% 69.7% 62,057 61,750
60% 59.7% 53,192 52,893
50% 49.7% 44,327 44,062
40% 40.3% 35,461 35,692
30% 29.0% 26,596 25,746
20% 20.4% 17,731 18,062
10% 9.8% 8,865 8,711
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-06.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,105
Calibration 2     88,939
Calibration 3     88,623
ssj_ops@calibrated=88,781
100% 100.3% 88,781 89,067
90% 88.4% 79,903 78,467
80% 80.1% 71,025 71,074
70% 70.4% 62,147 62,530
60% 59.8% 53,269 53,118
50% 50.6% 44,390 44,884
40% 39.7% 35,512 35,268
30% 29.9% 26,634 26,588
20% 19.4% 17,756 17,203
10% 9.7% 8,878 8,633
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-06.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,940
Calibration 2     89,506
Calibration 3     89,526
ssj_ops@calibrated=89,516
100% 99.9% 89,516 89,467
90% 89.4% 80,565 79,993
80% 79.3% 71,613 70,994
70% 70.5% 62,662 63,070
60% 59.5% 53,710 53,251
50% 50.6% 44,758 45,315
40% 39.9% 35,807 35,688
30% 30.1% 26,855 26,912
20% 20.4% 17,903 18,249
10% 10.0% 8,952 8,991
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-06.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,347
Calibration 2     88,588
Calibration 3     89,002
ssj_ops@calibrated=88,795
100% 99.4% 88,795 88,271
90% 89.9% 79,915 79,867
80% 79.9% 71,036 70,925
70% 69.1% 62,156 61,326
60% 60.0% 53,277 53,245
50% 50.7% 44,397 45,001
40% 39.7% 35,518 35,285
30% 29.1% 26,638 25,823
20% 19.1% 17,759 16,991
10% 9.7% 8,879 8,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-06.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,421
Calibration 2     88,088
Calibration 3     88,035
ssj_ops@calibrated=88,061
100% 99.9% 88,061 87,939
90% 91.7% 79,255 80,711
80% 80.4% 70,449 70,763
70% 70.0% 61,643 61,645
60% 60.6% 52,837 53,353
50% 50.5% 44,031 44,478
40% 39.7% 35,225 34,920
30% 29.5% 26,418 25,944
20% 20.0% 17,612 17,587
10% 10.4% 8,806 9,146
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-06.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,626
Calibration 2     89,077
Calibration 3     88,921
ssj_ops@calibrated=88,999
100% 99.8% 88,999 88,821
90% 91.3% 80,099 81,238
80% 79.5% 71,199 70,712
70% 68.9% 62,299 61,344
60% 59.9% 53,399 53,347
50% 50.4% 44,499 44,879
40% 39.2% 35,599 34,920
30% 29.8% 26,700 26,518
20% 19.7% 17,800 17,573
10% 10.0% 8,900 8,924
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-06.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,353
Calibration 2     89,011
Calibration 3     89,386
ssj_ops@calibrated=89,199
100% 99.8% 89,199 89,000
90% 90.2% 80,279 80,418
80% 80.3% 71,359 71,627
70% 69.4% 62,439 61,863
60% 60.0% 53,519 53,557
50% 50.5% 44,599 45,043
40% 40.6% 35,679 36,230
30% 30.0% 26,760 26,721
20% 20.2% 17,840 18,024
10% 9.9% 8,920 8,816
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-06.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,657
Calibration 2     89,812
Calibration 3     89,815
ssj_ops@calibrated=89,813
100% 100.0% 89,813 89,799
90% 89.2% 80,832 80,108
80% 80.0% 71,851 71,867
70% 70.2% 62,869 63,093
60% 59.5% 53,888 53,444
50% 50.2% 44,907 45,081
40% 39.8% 35,925 35,741
30% 29.5% 26,944 26,483
20% 19.4% 17,963 17,436
10% 9.8% 8,981 8,775
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-06.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     83,869
Calibration 2     88,540
Calibration 3     88,526
ssj_ops@calibrated=88,533
100% 99.4% 88,533 88,003
90% 89.2% 79,680 78,960
80% 80.1% 70,826 70,886
70% 70.6% 61,973 62,527
60% 60.0% 53,120 53,123
50% 50.8% 44,266 44,979
40% 39.9% 35,413 35,356
30% 30.0% 26,560 26,592
20% 20.1% 17,707 17,781
10% 9.8% 8,853 8,667
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M620-06.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     84,520
Calibration 2     88,936
Calibration 3     89,308
ssj_ops@calibrated=89,122
100% 100.0% 89,122 89,157
90% 88.8% 80,210 79,173
80% 80.5% 71,298 71,763
70% 70.6% 62,385 62,931
60% 60.1% 53,473 53,585
50% 49.8% 44,561 44,386
40% 39.3% 35,649 35,031
30% 30.5% 26,737 27,208
20% 20.0% 17,824 17,796
10% 9.9% 8,912 8,795
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
