Hitachi, Ltd. HA8000/RS110 (DL2) SPECpower_ssj2008 = 3,744 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jan 17, 2013
Hardware Availability: Nov-2012 Software Availability: Jun-2012 Publication: Mar 6, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 94.3 23.1
Calibration 2 94.3 23.5
Calibration 3 94.2 24.2
100% 94.0 24.4
90% 89.5 24.6
80% 83.4 24.5
70% 74.3 24.4
60% 66.8 24.1
50% 61.5 23.9
40% 57.5 23.8
30% 54.4 23.6
20% 51.4 23.5
10% 48.6 23.4
Active Idle 45.8 23.2

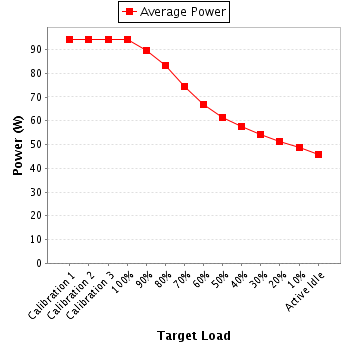

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric International Pte. Ltd.
Model: WT210
Serial Number: 91K717967
Connectivity: RS-232C
Input Connection: Default
Metrology Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: S2012-06-50931
Date of Calibration: 12-Jun-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.5.0-ac37e4a9-20121210
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 40 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 102 150.0 0.936 2.0 0.992 94.3 0.5%
Calibration 2 102 150.0 0.933 2.0 0.992 94.3 0.5%
Calibration 3 102 150.0 0.931 2.0 0.992 94.2 0.5%
100% 102 150.0 0.930 2.0 0.992 94.0 0.5%
90% 102 150.0 0.887 2.0 0.990 89.5 0.5%
80% 102 150.0 0.828 1.0 0.985 83.4 0.4%
70% 102 150.0 0.740 1.0 0.982 74.3 0.4%
60% 102 150.0 0.666 1.0 0.981 66.8 0.4%
50% 102 150.0 0.614 1.0 0.980 61.5 0.4%
40% 102 150.0 0.574 1.0 0.978 57.5 0.5%
30% 102 150.0 0.544 1.0 0.976 54.4 0.5%
20% 102 150.0 0.517 1.0 0.973 51.4 0.5%
10% 102 150.0 0.489 1.0 0.971 48.6 0.5%
Active Idle 103 150.0 0.457 0.5 0.969 45.8 0.4%
Power details for pwr1
