Hitachi, Ltd. HA8000/TS10 (DL2) ssj_ops@100% = 495,083
ssj_ops@100% per JVM = 247,541
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Feb 22, 2013
Hardware Availability: Nov-2012 Software Availability: Jun-2012 Publication: Mar 20, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     492,605
Calibration 2     497,494
Calibration 3     497,739
ssj_ops@calibrated=497,616
100% 99.5% 497,616 495,083
90% 90.3% 447,855 449,443
80% 80.0% 398,093 398,092
70% 70.1% 348,332 349,043
60% 59.9% 298,570 298,045
50% 50.2% 248,808 249,581
40% 39.9% 199,047 198,471
30% 29.9% 149,285 148,805
20% 20.0% 99,523 99,763
10% 10.1% 49,762 50,184
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/TS10 (DL2)
Form Factor: 4U
CPU Name: Intel Xeon E3-1280v2
CPU Characteristics: Quad Core, 3.60GHz, 8MB L3 Cache
CPU Frequency (MHz): 3600
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 GB
Memory Details: 4GB 2Rx8 PC3L-12800E ECC CL11; slots DIMM_#2 and DIMM_#4 populated
Power Supply Quantity and Rating (W): 1 x 400
Power Supply Details: DELTA DPS-400AB-14A
Disk Drive: 1 x 500GB SATA (Hitachi P/N:GQ-UH72506B)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-Port Broadcom BCM5718 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise SP1
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xms1950m -Xmx1950m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start/affinity [F,F0]
JVM Instances: 2
JVM Initial Heap (MB): 1950
JVM Maximum Heap (MB): 1950
JVM Address Bits: 64
Boot Firmware Version: LU.1.00.01
Management Firmware Version: 06.33
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-O7O6EHP5IVF.001 250,986
WIN-O7O6EHP5IVF.002 244,097
ssj_ops@100% 495,083
ssj_ops@100% per JVM 247,541

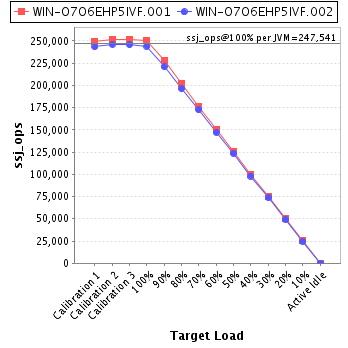

Graph of per-instance results
JVM 'WIN-O7O6EHP5IVF.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     249,330
Calibration 2     251,178
Calibration 3     251,988
ssj_ops@calibrated=251,583
100% 99.8% 251,583 250,986
90% 90.8% 226,424 228,469
80% 80.2% 201,266 201,819
70% 70.2% 176,108 176,498
60% 60.0% 150,950 150,890
50% 50.0% 125,791 125,903
40% 39.9% 100,633 100,366
30% 29.8% 75,475 75,019
20% 20.1% 50,317 50,484
10% 10.1% 25,158 25,326
Active Idle   0 0
Graph of results
JVM 'WIN-O7O6EHP5IVF.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     243,274
Calibration 2     246,317
Calibration 3     245,751
ssj_ops@calibrated=246,034
100% 99.2% 246,034 244,097
90% 89.8% 221,430 220,974
80% 79.8% 196,827 196,273
70% 70.1% 172,224 172,546
60% 59.8% 147,620 147,155
50% 50.3% 123,017 123,678
40% 39.9% 98,413 98,105
30% 30.0% 73,810 73,785
20% 20.0% 49,207 49,279
10% 10.1% 24,603 24,858
Active Idle   0 0
Graph of results
