Dell Inc. PowerEdge C5220 (Intel Xeon E3-1265LV2) SPECpower_ssj2008 = 6,000 overall ssj_ops/watt
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 15, 2013
Hardware Availability: Jan-2013 Software Availability: Jun-2012 Publication: Apr 19, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 99.7% 5,258,070 672 7,829
90% 90.0% 4,747,282 635 7,479
80% 80.1% 4,222,757 597 7,077
70% 70.0% 3,694,317 539 6,858
60% 60.0% 3,164,924 481 6,578
50% 49.8% 2,627,505 427 6,160
40% 40.1% 2,114,034 386 5,481
30% 30.0% 1,582,847 345 4,582
20% 20.0% 1,054,616 303 3,476
10% 10.0% 527,234 254 2,075
Active Idle 0 194 0
∑ssj_ops / ∑power = 6,000

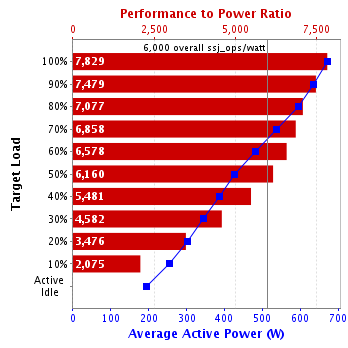

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
12 12 48 96 96.0 12 48
System Under Test
Shared Hardware
Shared Hardware
Enclosure: PowerEdge C5220
Form Factor: 3U
Power Supply Quantity and Rating (W): 2 x 1400
Power Supply Details: Dell P/N J8HPV
Network Switch: 24 Port 1Gb Ethernet Switch
Network Switch Details: 1000Mb
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network hardware not measured for power
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 12
Comment: None
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge C5220 (Intel Xeon E3-1265LV2)
Form Factor: Blade
CPU Name: Intel Xeon E3-1265LV2
CPU Characteristics: Quad-Core, 2.50GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PCL3-12800E ECC CL11; slots 1,3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 100GB SSD, 2.5" SATA, Dell P/N DYW42
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82580 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Mode in OS (see SUT Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled))
JVM Command-line Options: -Xms1228m -Xmx1228m -Xmn1024m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xthr:minimizeusercpu -Xgcthreads2
JVM Affinity: start /affinity [3,C,30,C0]
JVM Instances: 4
JVM Initial Heap (MB): 1228
JVM Maximum Heap (MB): 1228
JVM Address Bits: 64
Boot Firmware Version: 2.0.5
Management Firmware Version: 1.15
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge 1950
CPU Description: Intel 3.0GHz Woodcrest
Memory amount (GB): 8
Software
Operating System (OS): Windows Server 2008 Enterprise x64 Edition R2
JVM Vendor: Oracle Corporation
JVM Version: 1.7.0_09-b05
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91HB227700
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NIST
Accredited by: Simco Electronics
Calibration Label: 5696169
Date of Calibration: 19-Jun-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: SUT Power Supply 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International, Inc.
Model: Watchport/H
Driver Version: 5.3.20.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 50 mm in front of SUT main airflow intake
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 672 21.0
90% 635 21.1
80% 597 21.1
70% 539 21.0
60% 481 21.2
50% 427 21.4
40% 386 21.5
30% 345 21.4
20% 303 21.2
10% 254 21.0
Active Idle 194 20.8
Line Standard Minimum Temperature (°C) Elevation (m)
208V / 60 Hz / 1 phase / 2 wires 20.8 255
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,097,184
Calibration 2     5,267,377
Calibration 3     5,281,240
ssj_ops@calibrated=5,274,308
100% 99.7% 5,274,308 5,258,070
90% 90.0% 4,746,878 4,747,282
80% 80.1% 4,219,447 4,222,757
70% 70.0% 3,692,016 3,694,317
60% 60.0% 3,164,585 3,164,924
50% 49.8% 2,637,154 2,627,505
40% 40.1% 2,109,723 2,114,034
30% 30.0% 1,582,293 1,582,847
20% 20.0% 1,054,862 1,054,616
10% 10.0% 527,431 527,234
Active Idle   0 0
Graph of results
See the Aggregate Performance Report for additional details.
