Dell Inc. PowerEdge C5220 (Intel Xeon E3-1265LV2) ssj_ops@100% = 436,293
ssj_ops@100% per JVM = 109,073
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 15, 2013
Hardware Availability: Jan-2013 Software Availability: Jun-2012 Publication: Apr 19, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     424,390
Calibration 2     437,380
Calibration 3     438,776
ssj_ops@calibrated=438,078
100% 99.6% 438,078 436,293
90% 90.1% 394,270 394,904
80% 80.3% 350,463 351,683
70% 70.4% 306,655 308,411
60% 59.9% 262,847 262,416
50% 49.9% 219,039 218,441
40% 39.8% 175,231 174,425
30% 29.9% 131,423 130,797
20% 20.0% 87,616 87,686
10% 10.1% 43,808 44,221
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 12
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge C5220 (Intel Xeon E3-1265LV2)
Form Factor: Blade
CPU Name: Intel Xeon E3-1265LV2
CPU Characteristics: Quad-Core, 2.50GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PCL3-12800E ECC CL11; slots 1,3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 100GB SSD, 2.5" SATA, Dell P/N DYW42
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82580 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (see SUT Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled))
JVM Command-line Options: -Xms1228m -Xmx1228m -Xmn1024m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xthr:minimizeusercpu -Xgcthreads2
JVM Affinity: start /affinity [3,C,30,C0]
JVM Instances: 4
JVM Initial Heap (MB): 1228
JVM Maximum Heap (MB): 1228
JVM Address Bits: 64
Boot Firmware Version: 2.0.5
Management Firmware Version: 1.15
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
C5220-01.001 109,444
C5220-01.002 109,162
C5220-01.003 110,364
C5220-01.004 107,322
ssj_ops@100% 436,293
ssj_ops@100% per JVM 109,073

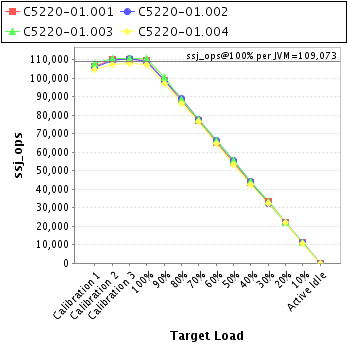

Graph of per-instance results
JVM 'C5220-01.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,253
Calibration 2     109,938
Calibration 3     109,879
ssj_ops@calibrated=109,909
100% 99.6% 109,909 109,444
90% 89.8% 98,918 98,709
80% 79.9% 87,927 87,763
70% 70.3% 76,936 77,245
60% 59.5% 65,945 65,368
50% 49.5% 54,954 54,406
40% 39.6% 43,964 43,578
30% 30.1% 32,973 33,123
20% 19.9% 21,982 21,839
10% 10.2% 10,991 11,158
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-01.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,597
Calibration 2     109,253
Calibration 3     110,375
ssj_ops@calibrated=109,814
100% 99.4% 109,814 109,162
90% 90.0% 98,832 98,804
80% 81.0% 87,851 88,995
70% 70.5% 76,870 77,409
60% 60.5% 65,888 66,423
50% 50.3% 54,907 55,284
40% 40.4% 43,926 44,312
30% 29.2% 32,944 32,017
20% 19.9% 21,963 21,853
10% 10.2% 10,981 11,218
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-01.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,822
Calibration 2     110,597
Calibration 3     110,772
ssj_ops@calibrated=110,685
100% 99.7% 110,685 110,364
90% 90.6% 99,616 100,312
80% 79.9% 88,548 88,469
70% 69.9% 77,479 77,408
60% 59.8% 66,411 66,201
50% 50.2% 55,342 55,513
40% 39.9% 44,274 44,199
30% 30.0% 33,205 33,152
20% 20.1% 22,137 22,245
10% 10.2% 11,068 11,274
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-01.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,717
Calibration 2     107,592
Calibration 3     107,750
ssj_ops@calibrated=107,671
100% 99.7% 107,671 107,322
90% 90.2% 96,904 97,079
80% 80.3% 86,137 86,455
70% 70.9% 75,369 76,349
60% 59.8% 64,602 64,424
50% 49.4% 53,835 53,237
40% 39.3% 43,068 42,336
30% 30.2% 32,301 32,504
20% 20.2% 21,534 21,749
10% 9.8% 10,767 10,570
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
