Dell Inc. PowerEdge C5220 (Intel Xeon E3-1265LV2) ssj_ops@100% = 439,251
ssj_ops@100% per JVM = 109,813
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 15, 2013
Hardware Availability: Jan-2013 Software Availability: Jun-2012 Publication: Apr 19, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     423,634
Calibration 2     440,308
Calibration 3     441,243
ssj_ops@calibrated=440,775
100% 99.7% 440,775 439,251
90% 89.8% 396,698 395,961
80% 80.2% 352,620 353,551
70% 70.5% 308,543 310,598
60% 59.9% 264,465 264,160
50% 49.8% 220,388 219,576
40% 40.0% 176,310 176,433
30% 30.0% 132,233 132,200
20% 20.2% 88,155 88,947
10% 9.9% 44,078 43,795
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 12
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge C5220 (Intel Xeon E3-1265LV2)
Form Factor: Blade
CPU Name: Intel Xeon E3-1265LV2
CPU Characteristics: Quad-Core, 2.50GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PCL3-12800E ECC CL11; slots 1,3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 100GB SSD, 2.5" SATA, Dell P/N DYW42
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82580 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (see SUT Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled))
JVM Command-line Options: -Xms1228m -Xmx1228m -Xmn1024m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xthr:minimizeusercpu -Xgcthreads2
JVM Affinity: start /affinity [3,C,30,C0]
JVM Instances: 4
JVM Initial Heap (MB): 1228
JVM Maximum Heap (MB): 1228
JVM Address Bits: 64
Boot Firmware Version: 2.0.5
Management Firmware Version: 1.15
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
C5220-04.001 108,424
C5220-04.002 110,708
C5220-04.003 111,978
C5220-04.004 108,141
ssj_ops@100% 439,251
ssj_ops@100% per JVM 109,813

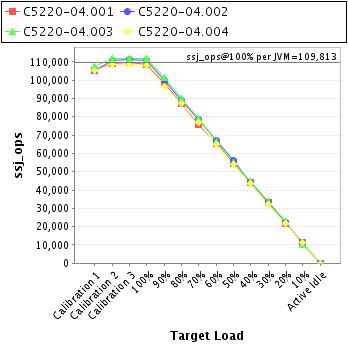

Graph of per-instance results
JVM 'C5220-04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,369
Calibration 2     109,014
Calibration 3     109,514
ssj_ops@calibrated=109,264
100% 99.2% 109,264 108,424
90% 90.0% 98,337 98,391
80% 80.0% 87,411 87,383
70% 69.4% 76,485 75,883
60% 60.0% 65,558 65,556
50% 49.9% 54,632 54,536
40% 40.4% 43,706 44,133
30% 30.3% 32,779 33,082
20% 20.0% 21,853 21,903
10% 10.2% 10,926 11,157
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,548
Calibration 2     110,637
Calibration 3     111,058
ssj_ops@calibrated=110,847
100% 99.9% 110,847 110,708
90% 90.1% 99,763 99,852
80% 80.4% 88,678 89,128
70% 71.0% 77,593 78,649
60% 60.3% 66,508 66,869
50% 50.4% 55,424 55,908
40% 39.9% 44,339 44,274
30% 29.9% 33,254 33,111
20% 20.2% 22,169 22,429
10% 10.0% 11,085 11,093
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,698
Calibration 2     111,971
Calibration 3     112,008
ssj_ops@calibrated=111,990
100% 100.0% 111,990 111,978
90% 90.5% 100,791 101,296
80% 80.1% 89,592 89,745
70% 70.8% 78,393 79,326
60% 59.6% 67,194 66,703
50% 49.1% 55,995 55,038
40% 39.9% 44,796 44,677
30% 30.1% 33,597 33,663
20% 20.4% 22,398 22,820
10% 9.3% 11,199 10,436
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,019
Calibration 2     108,686
Calibration 3     108,664
ssj_ops@calibrated=108,675
100% 99.5% 108,675 108,141
90% 88.7% 97,807 96,422
80% 80.3% 86,940 87,294
70% 70.6% 76,072 76,740
60% 59.8% 65,205 65,031
50% 49.8% 54,337 54,093
40% 39.9% 43,470 43,349
30% 29.8% 32,602 32,344
20% 20.1% 21,735 21,795
10% 10.2% 10,867 11,108
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
