Dell Inc. PowerEdge C5220 (Intel Xeon E3-1265LV2) ssj_ops@100% = 435,136
ssj_ops@100% per JVM = 108,784
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 15, 2013
Hardware Availability: Jan-2013 Software Availability: Jun-2012 Publication: Apr 19, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     422,826
Calibration 2     436,989
Calibration 3     437,489
ssj_ops@calibrated=437,239
100% 99.5% 437,239 435,136
90% 89.8% 393,515 392,621
80% 79.9% 349,791 349,298
70% 70.3% 306,067 307,573
60% 60.1% 262,344 262,590
50% 49.9% 218,620 218,212
40% 39.9% 174,896 174,548
30% 30.0% 131,172 131,172
20% 20.1% 87,448 87,939
10% 10.0% 43,724 43,778
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 12
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge C5220 (Intel Xeon E3-1265LV2)
Form Factor: Blade
CPU Name: Intel Xeon E3-1265LV2
CPU Characteristics: Quad-Core, 2.50GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PCL3-12800E ECC CL11; slots 1,3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 100GB SSD, 2.5" SATA, Dell P/N DYW42
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82580 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (see SUT Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled))
JVM Command-line Options: -Xms1228m -Xmx1228m -Xmn1024m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xthr:minimizeusercpu -Xgcthreads2
JVM Affinity: start /affinity [3,C,30,C0]
JVM Instances: 4
JVM Initial Heap (MB): 1228
JVM Maximum Heap (MB): 1228
JVM Address Bits: 64
Boot Firmware Version: 2.0.5
Management Firmware Version: 1.15
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
C5220-07.001 108,779
C5220-07.002 108,531
C5220-07.003 108,749
C5220-07.004 109,076
ssj_ops@100% 435,136
ssj_ops@100% per JVM 108,784

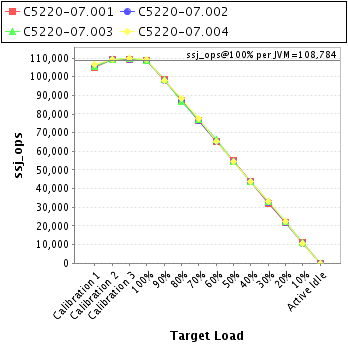

Graph of per-instance results
JVM 'C5220-07.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,178
Calibration 2     109,087
Calibration 3     109,034
ssj_ops@calibrated=109,060
100% 99.7% 109,060 108,779
90% 90.1% 98,154 98,293
80% 79.8% 87,248 87,048
70% 70.4% 76,342 76,747
60% 60.1% 65,436 65,498
50% 50.5% 54,530 55,044
40% 40.0% 43,624 43,577
30% 29.4% 32,718 32,078
20% 19.8% 21,812 21,582
10% 10.1% 10,906 11,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-07.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,661
Calibration 2     109,198
Calibration 3     109,044
ssj_ops@calibrated=109,121
100% 99.5% 109,121 108,531
90% 89.7% 98,209 97,893
80% 79.7% 87,297 86,983
70% 69.9% 76,385 76,300
60% 60.0% 65,473 65,494
50% 49.8% 54,560 54,386
40% 40.0% 43,648 43,627
30% 29.9% 32,736 32,675
20% 19.9% 21,824 21,724
10% 9.9% 10,912 10,836
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-07.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,620
Calibration 2     109,319
Calibration 3     109,494
ssj_ops@calibrated=109,406
100% 99.4% 109,406 108,749
90% 90.0% 98,466 98,485
80% 79.3% 87,525 86,812
70% 70.6% 76,584 77,205
60% 60.4% 65,644 66,114
50% 49.7% 54,703 54,329
40% 39.8% 43,762 43,586
30% 30.3% 32,822 33,178
20% 20.3% 21,881 22,231
10% 10.1% 10,941 11,036
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-07.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,366
Calibration 2     109,386
Calibration 3     109,918
ssj_ops@calibrated=109,652
100% 99.5% 109,652 109,076
90% 89.3% 98,687 97,950
80% 80.7% 87,721 88,456
70% 70.5% 76,756 77,321
60% 59.7% 65,791 65,484
50% 49.7% 54,826 54,453
40% 39.9% 43,861 43,758
30% 30.3% 32,896 33,241
20% 20.4% 21,930 22,402
10% 9.9% 10,965 10,840
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
