Dell Inc. PowerEdge C5220 (Intel Xeon E3-1265LV2) ssj_ops@100% = 438,165
ssj_ops@100% per JVM = 109,541
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 15, 2013
Hardware Availability: Jan-2013 Software Availability: Jun-2012 Publication: Apr 19, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     425,599
Calibration 2     439,970
Calibration 3     440,386
ssj_ops@calibrated=440,178
100% 99.5% 440,178 438,165
90% 90.0% 396,160 396,054
80% 79.9% 352,142 351,525
70% 69.9% 308,124 307,517
60% 59.8% 264,107 263,140
50% 49.7% 220,089 218,811
40% 40.0% 176,071 176,216
30% 30.1% 132,053 132,381
20% 20.0% 88,036 88,155
10% 10.1% 44,018 44,478
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 12
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge C5220 (Intel Xeon E3-1265LV2)
Form Factor: Blade
CPU Name: Intel Xeon E3-1265LV2
CPU Characteristics: Quad-Core, 2.50GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PCL3-12800E ECC CL11; slots 1,3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 100GB SSD, 2.5" SATA, Dell P/N DYW42
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82580 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (see SUT Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled))
JVM Command-line Options: -Xms1228m -Xmx1228m -Xmn1024m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xthr:minimizeusercpu -Xgcthreads2
JVM Affinity: start /affinity [3,C,30,C0]
JVM Instances: 4
JVM Initial Heap (MB): 1228
JVM Maximum Heap (MB): 1228
JVM Address Bits: 64
Boot Firmware Version: 2.0.5
Management Firmware Version: 1.15
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
C5220-09.001 109,053
C5220-09.002 111,334
C5220-09.003 110,128
C5220-09.004 107,649
ssj_ops@100% 438,165
ssj_ops@100% per JVM 109,541

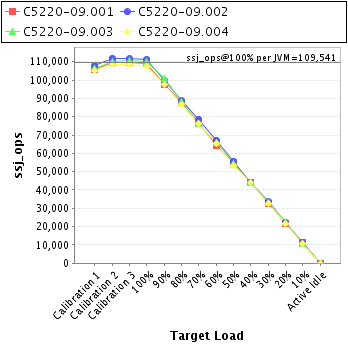

Graph of per-instance results
JVM 'C5220-09.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,889
Calibration 2     109,366
Calibration 3     109,500
ssj_ops@calibrated=109,433
100% 99.7% 109,433 109,053
90% 89.3% 98,490 97,757
80% 80.3% 87,547 87,878
70% 70.1% 76,603 76,746
60% 59.0% 65,660 64,513
50% 50.4% 54,717 55,115
40% 40.3% 43,773 44,065
30% 29.9% 32,830 32,669
20% 20.1% 21,887 21,953
10% 10.3% 10,943 11,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-09.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,102
Calibration 2     111,940
Calibration 3     111,700
ssj_ops@calibrated=111,820
100% 99.6% 111,820 111,334
90% 89.3% 100,638 99,837
80% 79.5% 89,456 88,851
70% 70.3% 78,274 78,640
60% 60.2% 67,092 67,272
50% 49.9% 55,910 55,817
40% 39.6% 44,728 44,228
30% 30.2% 33,546 33,728
20% 20.0% 22,364 22,340
10% 10.3% 11,182 11,525
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-09.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,517
Calibration 2     110,029
Calibration 3     110,533
ssj_ops@calibrated=110,281
100% 99.9% 110,281 110,128
90% 91.3% 99,253 100,722
80% 79.9% 88,225 88,075
70% 69.0% 77,197 76,113
60% 59.9% 66,168 66,075
50% 49.4% 55,140 54,448
40% 39.9% 44,112 44,031
30% 30.3% 33,084 33,390
20% 20.3% 22,056 22,358
10% 9.9% 11,028 10,887
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-09.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,091
Calibration 2     108,635
Calibration 3     108,652
ssj_ops@calibrated=108,643
100% 99.1% 108,643 107,649
90% 90.0% 97,779 97,738
80% 79.8% 86,915 86,721
70% 70.0% 76,050 76,019
60% 60.1% 65,186 65,280
50% 49.2% 54,322 53,431
40% 40.4% 43,457 43,892
30% 30.0% 32,593 32,595
20% 19.8% 21,729 21,503
10% 9.9% 10,864 10,804
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
