Dell Inc. PowerEdge C5220 (Intel Xeon E3-1265LV2) ssj_ops@100% = 439,760
ssj_ops@100% per JVM = 109,940
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 15, 2013
Hardware Availability: Jan-2013 Software Availability: Jun-2012 Publication: Apr 19, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     425,272
Calibration 2     439,014
Calibration 3     440,701
ssj_ops@calibrated=439,857
100% 100.0% 439,857 439,760
90% 89.8% 395,872 394,871
80% 80.3% 351,886 353,277
70% 70.0% 307,900 307,994
60% 60.1% 263,914 264,276
50% 49.9% 219,929 219,404
40% 40.1% 175,943 176,196
30% 30.2% 131,957 132,936
20% 19.8% 87,971 87,012
10% 9.9% 43,986 43,697
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 12
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge C5220 (Intel Xeon E3-1265LV2)
Form Factor: Blade
CPU Name: Intel Xeon E3-1265LV2
CPU Characteristics: Quad-Core, 2.50GHz, 8MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 4 cores, 1 chip, 4 cores/chip
Hardware Threads: 8 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 2 x 4096 MB
Memory Details: 4GB 2Rx8 PCL3-12800E ECC CL11; slots 1,3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x 100GB SSD, 2.5" SATA, Dell P/N DYW42
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel(R) 82580 Gigabit Dual Port Network Connection
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (see SUT Notes)
Operating System (OS): Microsoft Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled))
JVM Command-line Options: -Xms1228m -Xmx1228m -Xmn1024m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xthr:minimizeusercpu -Xgcthreads2
JVM Affinity: start /affinity [3,C,30,C0]
JVM Instances: 4
JVM Initial Heap (MB): 1228
JVM Maximum Heap (MB): 1228
JVM Address Bits: 64
Boot Firmware Version: 2.0.5
Management Firmware Version: 1.15
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
C5220-11.001 109,455
C5220-11.002 111,397
C5220-11.003 110,506
C5220-11.004 108,403
ssj_ops@100% 439,760
ssj_ops@100% per JVM 109,940
Graph of per-instance results
JVM 'C5220-11.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,956
Calibration 2     109,729
Calibration 3     109,207
ssj_ops@calibrated=109,468
100% 100.0% 109,468 109,455
90% 89.8% 98,521 98,331
80% 79.7% 87,574 87,266
70% 69.2% 76,628 75,772
60% 59.8% 65,681 65,420
50% 50.3% 54,734 55,009
40% 40.0% 43,787 43,828
30% 30.5% 32,840 33,428
20% 20.1% 21,894 21,999
10% 9.8% 10,947 10,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-11.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,075
Calibration 2     110,658
Calibration 3     111,718
ssj_ops@calibrated=111,188
100% 100.2% 111,188 111,397
90% 89.0% 100,069 98,943
80% 80.0% 88,950 89,003
70% 70.1% 77,832 77,919
60% 60.0% 66,713 66,737
50% 49.4% 55,594 54,934
40% 40.0% 44,475 44,460
30% 30.0% 33,356 33,315
20% 19.8% 22,238 22,032
10% 9.7% 11,119 10,821
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-11.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     107,111
Calibration 2     110,536
Calibration 3     110,693
ssj_ops@calibrated=110,615
100% 99.9% 110,615 110,506
90% 90.4% 99,553 100,044
80% 80.8% 88,492 89,337
70% 69.7% 77,430 77,118
60% 60.2% 66,369 66,544
50% 49.7% 55,307 54,934
40% 39.6% 44,246 43,819
30% 29.9% 33,184 33,024
20% 19.4% 22,123 21,461
10% 10.2% 11,061 11,331
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'C5220-11.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,129
Calibration 2     108,091
Calibration 3     109,083
ssj_ops@calibrated=108,587
100% 99.8% 108,587 108,403
90% 89.8% 97,728 97,552
80% 80.7% 86,869 87,670
70% 71.1% 76,011 77,184
60% 60.4% 65,152 65,576
50% 50.2% 54,293 54,527
40% 40.6% 43,435 44,089
30% 30.5% 32,576 33,169
20% 19.8% 21,717 21,520
10% 9.9% 10,859 10,767
Active Idle   0 0

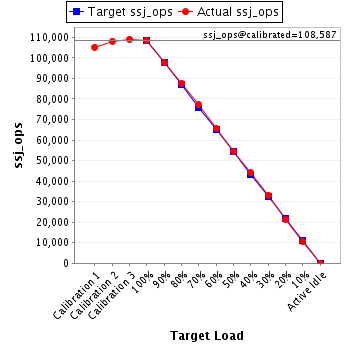

Graph of results
See the JVM Instance Performance Report for additional details.
