Acer Incorporated Altos R380 F2 ssj_ops@100% = 1,436,606
ssj_ops@100% per JVM = 179,576
Test Sponsor: Acer Incorporated SPEC License #: 97 Test Method: Single Node
Tested By: Acer Incorporated Test Location: Taipei, R.O.C. Test Date: Apr 3, 2013
Hardware Availability: May-2013 Software Availability: Oct-2012 Publication: May 8, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,408,419
Calibration 2     1,440,655
Calibration 3     1,443,279
ssj_ops@calibrated=1,441,967
100% 99.6% 1,441,967 1,436,606
90% 90.1% 1,297,770 1,299,002
80% 80.0% 1,153,574 1,153,490
70% 70.2% 1,009,377 1,011,953
60% 59.8% 865,180 861,813
50% 50.1% 720,984 721,989
40% 40.1% 576,787 577,911
30% 29.9% 432,590 431,534
20% 20.0% 288,393 287,687
10% 10.0% 144,197 144,314
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Acer Incorporated
Model: Altos R380 F2
Form Factor: 2U
CPU Name: Intel Xeon E5-2660 2.2 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Characteristics: 8 core, 2.20 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per chip
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx4 PC3-12800R; slots A1, B1, C1, E1, F1, and G1 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Acer P/N SC.75017.002
Disk Drive: 1 x 1TB 7.2K RPM SATA 2.5" HDD, Acer part #KH.01K01.035
Disk Controller: onboard SCU controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I350 dual-port Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver enabled in OS
Operating System (OS): Windows Server 2008, Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1500m -Xms1500m -Xmn1100m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [0F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 01.06.0002
Management Firmware Version: 1.17.4010
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
altosr380f2.001 177,680
altosr380f2.002 178,737
altosr380f2.003 178,579
altosr380f2.004 181,191
altosr380f2.005 180,707
altosr380f2.006 181,474
altosr380f2.007 178,273
altosr380f2.008 179,965
ssj_ops@100% 1,436,606
ssj_ops@100% per JVM 179,576

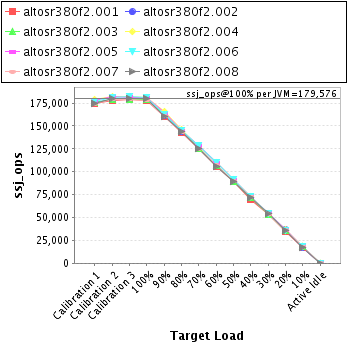

Graph of per-instance results
JVM 'altosr380f2.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,979
Calibration 2     177,741
Calibration 3     178,457
ssj_ops@calibrated=178,099
100% 99.8% 178,099 177,680
90% 90.2% 160,289 160,687
80% 79.9% 142,479 142,350
70% 70.3% 124,669 125,117
60% 59.3% 106,859 105,581
50% 50.0% 89,050 88,999
40% 39.4% 71,240 70,163
30% 30.1% 53,430 53,599
20% 19.5% 35,620 34,775
10% 9.8% 17,810 17,492
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'altosr380f2.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,193
Calibration 2     179,457
Calibration 3     179,954
ssj_ops@calibrated=179,706
100% 99.5% 179,706 178,737
90% 89.5% 161,735 160,893
80% 80.1% 143,765 143,972
70% 70.2% 125,794 126,186
60% 59.6% 107,824 107,140
50% 49.8% 89,853 89,569
40% 40.3% 71,882 72,387
30% 30.1% 53,912 54,013
20% 20.3% 35,941 36,391
10% 9.8% 17,971 17,612
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'altosr380f2.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,202
Calibration 2     178,779
Calibration 3     179,403
ssj_ops@calibrated=179,091
100% 99.7% 179,091 178,579
90% 90.7% 161,182 162,434
80% 80.7% 143,273 144,501
70% 70.0% 125,364 125,409
60% 59.8% 107,455 107,035
50% 50.1% 89,545 89,766
40% 40.0% 71,636 71,644
30% 29.9% 53,727 53,593
20% 19.7% 35,818 35,321
10% 10.0% 17,909 17,890
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'altosr380f2.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     179,016
Calibration 2     181,763
Calibration 3     182,514
ssj_ops@calibrated=182,138
100% 99.5% 182,138 181,191
90% 91.0% 163,925 165,742
80% 80.2% 145,711 146,050
70% 70.3% 127,497 127,995
60% 60.3% 109,283 109,768
50% 50.1% 91,069 91,260
40% 40.1% 72,855 72,965
30% 29.9% 54,642 54,524
20% 20.1% 36,428 36,552
10% 10.1% 18,214 18,437
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'altosr380f2.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     178,000
Calibration 2     181,759
Calibration 3     181,645
ssj_ops@calibrated=181,702
100% 99.5% 181,702 180,707
90% 90.6% 163,532 164,665
80% 79.7% 145,362 144,758
70% 70.6% 127,191 128,275
60% 60.3% 109,021 109,557
50% 50.3% 90,851 91,390
40% 40.3% 72,681 73,174
30% 30.0% 54,511 54,513
20% 20.1% 36,340 36,446
10% 10.2% 18,170 18,539
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'altosr380f2.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,014
Calibration 2     181,552
Calibration 3     181,993
ssj_ops@calibrated=181,772
100% 99.8% 181,772 181,474
90% 89.7% 163,595 163,038
80% 79.9% 145,418 145,167
70% 70.5% 127,241 128,200
60% 60.3% 109,063 109,574
50% 50.4% 90,886 91,544
40% 40.0% 72,709 72,676
30% 29.6% 54,532 53,837
20% 19.8% 36,354 36,008
10% 10.2% 18,177 18,580
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'altosr380f2.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,100
Calibration 2     179,459
Calibration 3     179,116
ssj_ops@calibrated=179,288
100% 99.4% 179,288 178,273
90% 89.7% 161,359 160,758
80% 79.7% 143,430 142,882
70% 69.9% 125,501 125,365
60% 59.6% 107,573 106,938
50% 50.1% 89,644 89,851
40% 40.6% 71,715 72,871
30% 29.8% 53,786 53,507
20% 20.2% 35,858 36,172
10% 10.1% 17,929 18,025
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'altosr380f2.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,914
Calibration 2     180,145
Calibration 3     180,196
ssj_ops@calibrated=180,171
100% 99.9% 180,171 179,965
90% 89.2% 162,154 160,784
80% 79.8% 144,137 143,810
70% 69.6% 126,119 125,406
60% 59.0% 108,102 106,221
50% 49.7% 90,085 89,609
40% 40.0% 72,068 72,031
30% 29.9% 54,051 53,948
20% 20.0% 36,034 36,022
10% 9.8% 18,017 17,740
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
