Acer Incorporated Altos R380 F2 | SPECpower_ssj2008 = 5,268 overall ssj_ops/watt | ||||
Test Sponsor: | Acer Incorporated | SPEC License #: | 97 | Test Method: | Single Node |
Tested By: | Acer Incorporated | Test Location: | Taipei, R.O.C. | Test Date: | Jun 6, 2013 |
Hardware Availability: | Apr-2013 | Software Availability: | Mar-2013 | Publication: | Jun 26, 2013 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

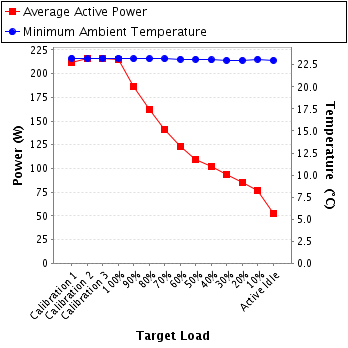

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 212 | 23.2 |
Calibration 2 | 216 | 23.2 |
Calibration 3 | 216 | 23.2 |
100% | 215 | 23.2 |
90% | 186 | 23.2 |
80% | 162 | 23.2 |
70% | 141 | 23.2 |
60% | 124 | 23.1 |
50% | 110 | 23.1 |
40% | 102 | 23.1 |
30% | 94.0 | 23.0 |
20% | 85.4 | 23.0 |
10% | 77.1 | 23.1 |
Active Idle | 52.9 | 23.0 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
Model: | WT210 |
Serial Number: | 91H534921 |
Connectivity: | RS232 |
Input Connection: | Default |
Metrology Institute: | NML (National Measurement Laboratory, R.O.C.) |
Accredited by: | ETC, Taiwan |
Calibration Label: | 13-04-BAC-380-01 |
Date of Calibration: | 9-May-2013 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.6.0-7f9b1b00-20130314 |
Setup Description: | None |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.0.0.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT airflow intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 221 | 300.0 | 0.972 | 2.0 | 0.985 | 212 | 0.5% |
Calibration 2 | 222 | 300.0 | 0.989 | 2.0 | 0.985 | 216 | 0.5% |
Calibration 3 | 222 | 300.0 | 0.985 | 2.0 | 0.985 | 216 | 0.5% |
100% | 223 | 300.0 | 0.979 | 2.0 | 0.985 | 215 | 0.5% |
90% | 223 | 300.0 | 0.853 | 2.0 | 0.981 | 186 | 0.5% |
80% | 223 | 300.0 | 0.748 | 2.0 | 0.977 | 162 | 0.6% |
70% | 223 | 300.0 | 0.654 | 2.0 | 0.971 | 141 | 0.6% |
60% | 223 | 300.0 | 0.576 | 2.0 | 0.963 | 124 | 0.7% |
50% | 222 | 300.0 | 0.517 | 1.0 | 0.957 | 110 | 0.5% |
40% | 220 | 300.0 | 0.488 | 1.0 | 0.952 | 102 | 0.5% |
30% | 220 | 300.0 | 0.452 | 1.0 | 0.945 | 94.0 | 0.5% |
20% | 220 | 300.0 | 0.415 | 1.0 | 0.936 | 85.4 | 0.6% |
10% | 221 | 300.0 | 0.378 | 1.0 | 0.924 | 77.1 | 0.6% |
Active Idle | 221 | 300.0 | 0.274 | 1.0 | 0.870 | 52.9 | 0.8% |
