Huawei Technologies Co., Ltd RH2485 V2 ssj_ops@100% = 1,693,493
ssj_ops@100% per JVM = 141,124
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Jun 16, 2013
Hardware Availability: Dec-2012 Software Availability: Jun-2012 Publication: Jul 10, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,460,549
Calibration 2     1,684,249
Calibration 3     1,695,716
ssj_ops@calibrated=1,689,983
100% 100.2% 1,689,983 1,693,493
90% 90.0% 1,520,984 1,521,078
80% 80.0% 1,351,986 1,352,579
70% 69.9% 1,182,988 1,181,771
60% 60.0% 1,013,990 1,013,723
50% 50.1% 844,991 846,908
40% 40.0% 675,993 675,461
30% 29.9% 506,995 505,821
20% 20.0% 337,997 338,065
10% 10.0% 168,998 168,882
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2485 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-4607
CPU Characteristics: 6-Core, 2.20GHz, 12MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 24 cores, 4 chips, 6 cores/chip
Hardware Threads: 48 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 60
# and size of DIMM: 15 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots 1A1, 1B1, 1C1, 1D1, 2A1, 2B1, 2C1, 2D1, 3B1, 3C1, 3D1, 4A1, 4B1, 4C1, 4D1 populated
Power Supply Quantity and Rating (W): 1 x 1200
Power Supply Details: Huawei P/N PW02130985
Disk Drive: 1 x 160GB SSD 2.5" SATA Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Quad-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver mode enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1500m -Xms1500m -Xmn1100m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,0xF000000,0xF0000000,0xF00000000,0xF000000000,0xF0000000000,0xF00000000000]
JVM Instances: 12
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: V036
Management Firmware Version: V357
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-H9PR0Q7Q529.001 140,133
WIN-H9PR0Q7Q529.002 139,327
WIN-H9PR0Q7Q529.003 141,126
WIN-H9PR0Q7Q529.004 144,206
WIN-H9PR0Q7Q529.005 139,558
WIN-H9PR0Q7Q529.006 141,140
WIN-H9PR0Q7Q529.007 141,547
WIN-H9PR0Q7Q529.008 139,910
WIN-H9PR0Q7Q529.009 142,868
WIN-H9PR0Q7Q529.010 141,854
WIN-H9PR0Q7Q529.011 140,651
WIN-H9PR0Q7Q529.012 141,173
ssj_ops@100% 1,693,493
ssj_ops@100% per JVM 141,124

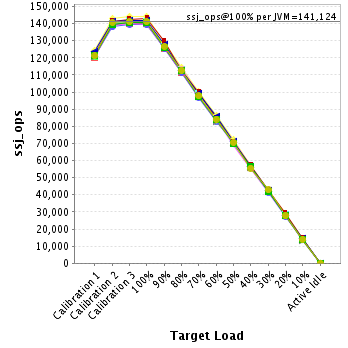

Graph of per-instance results
JVM 'WIN-H9PR0Q7Q529.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,415
Calibration 2     139,711
Calibration 3     140,298
ssj_ops@calibrated=140,004
100% 100.1% 140,004 140,133
90% 89.7% 126,004 125,538
80% 79.7% 112,003 111,629
70% 69.8% 98,003 97,693
60% 60.7% 84,003 84,937
50% 50.4% 70,002 70,549
40% 40.1% 56,002 56,206
30% 30.0% 42,001 41,973
20% 20.1% 28,001 28,177
10% 9.8% 14,000 13,767
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H9PR0Q7Q529.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,515
Calibration 2     138,137
Calibration 3     139,697
ssj_ops@calibrated=138,917
100% 100.3% 138,917 139,327
90% 90.4% 125,025 125,603
80% 80.3% 111,134 111,494
70% 69.8% 97,242 96,963
60% 59.7% 83,350 82,876
50% 50.7% 69,458 70,467
40% 40.2% 55,567 55,845
30% 29.8% 41,675 41,399
20% 19.8% 27,783 27,439
10% 9.8% 13,892 13,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H9PR0Q7Q529.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,922
Calibration 2     140,720
Calibration 3     141,211
ssj_ops@calibrated=140,965
100% 100.1% 140,965 141,126
90% 90.4% 126,869 127,387
80% 79.9% 112,772 112,613
70% 70.3% 98,676 99,145
60% 60.9% 84,579 85,868
50% 50.1% 70,483 70,642
40% 40.0% 56,386 56,445
30% 30.3% 42,290 42,651
20% 19.8% 28,193 27,965
10% 10.0% 14,097 14,095
Active Idle   0 0

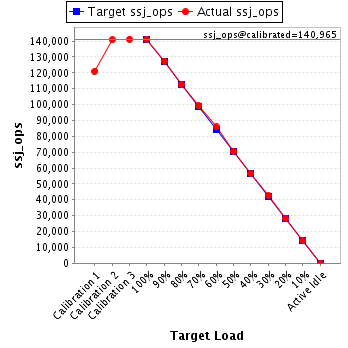

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H9PR0Q7Q529.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     124,164
Calibration 2     142,856
Calibration 3     144,247
ssj_ops@calibrated=143,551
100% 100.5% 143,551 144,206
90% 89.7% 129,196 128,707
80% 79.7% 114,841 114,387
70% 69.8% 100,486 100,213
60% 60.3% 86,131 86,509
50% 50.4% 71,776 72,355
40% 39.7% 57,420 56,929
30% 29.5% 43,065 42,281
20% 20.1% 28,710 28,891
10% 10.1% 14,355 14,499
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H9PR0Q7Q529.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,654
Calibration 2     138,877
Calibration 3     139,903
ssj_ops@calibrated=139,390
100% 100.1% 139,390 139,558
90% 90.3% 125,451 125,886
80% 80.5% 111,512 112,274
70% 70.2% 97,573 97,858
60% 60.4% 83,634 84,149
50% 49.5% 69,695 69,051
40% 39.7% 55,756 55,370
30% 29.8% 41,817 41,476
20% 20.1% 27,878 27,986
10% 10.0% 13,939 13,999
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H9PR0Q7Q529.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,380
Calibration 2     140,284
Calibration 3     141,628
ssj_ops@calibrated=140,956
100% 100.1% 140,956 141,140
90% 89.7% 126,860 126,473
80% 80.4% 112,765 113,325
70% 70.2% 98,669 98,959
60% 59.4% 84,574 83,674
50% 49.7% 70,478 70,080
40% 39.8% 56,382 56,166
30% 29.9% 42,287 42,158
20% 20.2% 28,191 28,430
10% 10.0% 14,096 14,086
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H9PR0Q7Q529.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     122,675
Calibration 2     141,178
Calibration 3     141,883
ssj_ops@calibrated=141,531
100% 100.0% 141,531 141,547
90% 88.9% 127,378 125,792
80% 80.6% 113,225 114,135
70% 69.9% 99,072 98,994
60% 59.7% 84,918 84,447
50% 50.6% 70,765 71,576
40% 40.3% 56,612 57,006
30% 30.2% 42,459 42,706
20% 20.3% 28,306 28,667
10% 10.3% 14,153 14,597
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H9PR0Q7Q529.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     120,806
Calibration 2     139,687
Calibration 3     140,407
ssj_ops@calibrated=140,047
100% 99.9% 140,047 139,910
90% 90.0% 126,043 126,044
80% 79.9% 112,038 111,859
70% 69.5% 98,033 97,266
60% 59.2% 84,028 82,970
50% 50.2% 70,024 70,306
40% 40.0% 56,019 56,031
30% 29.8% 42,014 41,784
20% 20.0% 28,009 28,036
10% 9.7% 14,005 13,560
Active Idle   0 0

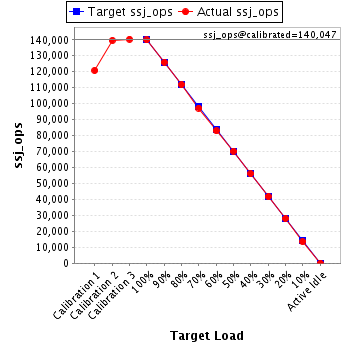

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H9PR0Q7Q529.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,555
Calibration 2     141,202
Calibration 3     142,541
ssj_ops@calibrated=141,872
100% 100.7% 141,872 142,868
90% 91.1% 127,684 129,285
80% 79.4% 113,497 112,692
70% 70.5% 99,310 99,954
60% 59.4% 85,123 84,310
50% 49.6% 70,936 70,386
40% 40.2% 56,749 56,999
30% 29.8% 42,561 42,312
20% 20.3% 28,374 28,821
10% 10.4% 14,187 14,687
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H9PR0Q7Q529.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     123,731
Calibration 2     141,463
Calibration 3     141,913
ssj_ops@calibrated=141,688
100% 100.1% 141,688 141,854
90% 90.1% 127,519 127,686
80% 79.6% 113,350 112,791
70% 70.1% 99,182 99,379
60% 60.5% 85,013 85,665
50% 50.0% 70,844 70,896
40% 39.9% 56,675 56,538
30% 29.9% 42,506 42,339
20% 19.8% 28,338 27,992
10% 10.1% 14,169 14,301
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H9PR0Q7Q529.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,541
Calibration 2     139,501
Calibration 3     140,799
ssj_ops@calibrated=140,150
100% 100.4% 140,150 140,651
90% 89.8% 126,135 125,888
80% 80.3% 112,120 112,600
70% 69.6% 98,105 97,579
60% 60.1% 84,090 84,207
50% 49.9% 70,075 69,907
40% 40.2% 56,060 56,347
30% 29.9% 42,045 41,880
20% 19.9% 28,030 27,917
10% 9.8% 14,015 13,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-H9PR0Q7Q529.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     121,191
Calibration 2     140,634
Calibration 3     141,188
ssj_ops@calibrated=140,911
100% 100.2% 140,911 141,173
90% 90.0% 126,820 126,790
80% 80.0% 112,729 112,781
70% 69.4% 98,638 97,766
60% 59.7% 84,547 84,112
50% 50.2% 70,456 70,694
40% 39.4% 56,364 55,579
30% 30.4% 42,273 42,860
20% 19.7% 28,182 27,744
10% 9.8% 14,091 13,870
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
