Huawei Technologies Co., Ltd Tecal CH121 ssj_ops@100% = 1,725,424
ssj_ops@100% per JVM = 172,542
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Multi Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Sep 2, 2013
Hardware Availability: Sep-2013 Software Availability: Jan-2012 Publication: Oct 21, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,700,848
Calibration 2     1,732,425
Calibration 3     1,736,104
ssj_ops@calibrated=1,734,265
100% 99.5% 1,734,265 1,725,424
90% 89.9% 1,560,838 1,559,772
80% 79.8% 1,387,412 1,383,633
70% 70.0% 1,213,985 1,213,706
60% 59.9% 1,040,559 1,039,628
50% 49.9% 867,132 866,243
40% 40.2% 693,706 696,442
30% 30.2% 520,279 522,940
20% 20.0% 346,853 347,010
10% 10.0% 173,426 174,086
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 6
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Tecal CH121
Form Factor: Blade
CPU Name: Intel Xeon E5-2660 v2
CPU Characteristics: 10-Core, 2.2GHz, 25MB L3 Cache (Intel Turbo Boost Technology up to 3.0GHz)
CPU Frequency (MHz): 2200
CPU(s) Enabled: 20 cores, 2 chips, 10 cores/chip
Hardware Threads: 40 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 25 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM,Slots 1A1 1B1, 1C1,2A1,2B1,2C1 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 240GB SSD 2.5" SATA Huawei P/N 02310MMT
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1875m -Xms1875m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000,F00000000,F000000000]
JVM Instances: 10
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: V063
Management Firmware Version: 3.35
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-6CL781RHVI7.001 171,020
WIN-6CL781RHVI7.002 174,551
WIN-6CL781RHVI7.003 175,974
WIN-6CL781RHVI7.004 173,339
WIN-6CL781RHVI7.005 168,271
WIN-6CL781RHVI7.006 173,359
WIN-6CL781RHVI7.007 169,202
WIN-6CL781RHVI7.008 173,253
WIN-6CL781RHVI7.009 174,199
WIN-6CL781RHVI7.010 172,254
ssj_ops@100% 1,725,424
ssj_ops@100% per JVM 172,542

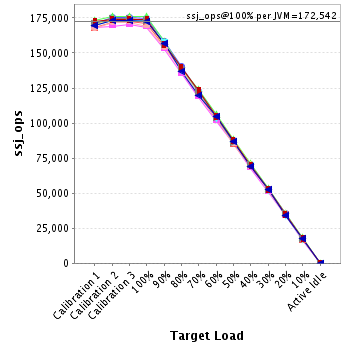

Graph of per-instance results
JVM 'WIN-6CL781RHVI7.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,300
Calibration 2     171,996
Calibration 3     172,633
ssj_ops@calibrated=172,315
100% 99.2% 172,315 171,020
90% 89.6% 155,083 154,326
80% 80.3% 137,852 138,427
70% 69.9% 120,620 120,480
60% 59.7% 103,389 102,819
50% 49.6% 86,157 85,426
40% 40.1% 68,926 69,108
30% 30.4% 51,694 52,321
20% 20.0% 34,463 34,496
10% 10.0% 17,231 17,221
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6CL781RHVI7.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     171,163
Calibration 2     175,106
Calibration 3     175,256
ssj_ops@calibrated=175,181
100% 99.6% 175,181 174,551
90% 90.4% 157,663 158,335
80% 80.1% 140,145 140,377
70% 69.9% 122,626 122,493
60% 59.7% 105,108 104,531
50% 50.0% 87,590 87,578
40% 40.1% 70,072 70,261
30% 30.1% 52,554 52,734
20% 20.2% 35,036 35,391
10% 10.0% 17,518 17,562
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6CL781RHVI7.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,871
Calibration 2     175,692
Calibration 3     176,130
ssj_ops@calibrated=175,911
100% 100.0% 175,911 175,974
90% 89.9% 158,320 158,148
80% 79.1% 140,729 139,069
70% 70.5% 123,138 124,043
60% 60.5% 105,547 106,427
50% 50.2% 87,956 88,290
40% 40.4% 70,364 71,007
30% 30.3% 52,773 53,224
20% 20.0% 35,182 35,246
10% 10.3% 17,591 18,032
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6CL781RHVI7.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,324
Calibration 2     173,534
Calibration 3     174,868
ssj_ops@calibrated=174,201
100% 99.5% 174,201 173,339
90% 89.4% 156,781 155,688
80% 79.6% 139,361 138,646
70% 69.3% 121,941 120,799
60% 60.1% 104,521 104,683
50% 50.4% 87,101 87,717
40% 40.5% 69,681 70,628
30% 29.9% 52,260 52,029
20% 20.2% 34,840 35,205
10% 10.0% 17,420 17,452
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6CL781RHVI7.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     168,292
Calibration 2     169,108
Calibration 3     170,036
ssj_ops@calibrated=169,572
100% 99.2% 169,572 168,271
90% 90.0% 152,615 152,613
80% 79.7% 135,658 135,108
70% 69.8% 118,701 118,409
60% 59.8% 101,743 101,387
50% 50.3% 84,786 85,319
40% 40.1% 67,829 67,944
30% 29.8% 50,872 50,616
20% 20.0% 33,914 33,935
10% 9.7% 16,957 16,414
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6CL781RHVI7.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,730
Calibration 2     173,356
Calibration 3     173,271
ssj_ops@calibrated=173,314
100% 100.0% 173,314 173,359
90% 91.0% 155,982 157,676
80% 79.5% 138,651 137,769
70% 69.8% 121,320 120,983
60% 59.5% 103,988 103,192
50% 49.7% 86,657 86,170
40% 40.3% 69,326 69,760
30% 29.8% 51,994 51,719
20% 19.8% 34,663 34,329
10% 10.0% 17,331 17,306
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6CL781RHVI7.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     167,345
Calibration 2     171,578
Calibration 3     171,967
ssj_ops@calibrated=171,773
100% 98.5% 171,773 169,202
90% 89.5% 154,596 153,804
80% 80.0% 137,418 137,434
70% 70.3% 120,241 120,730
60% 60.2% 103,064 103,342
50% 49.4% 85,886 84,782
40% 40.1% 68,709 68,850
30% 30.3% 51,532 52,099
20% 19.8% 34,355 34,021
10% 10.2% 17,177 17,488
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6CL781RHVI7.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,792
Calibration 2     174,603
Calibration 3     174,507
ssj_ops@calibrated=174,555
100% 99.3% 174,555 173,253
90% 89.5% 157,100 156,227
80% 80.1% 139,644 139,853
70% 70.1% 122,189 122,398
60% 59.5% 104,733 103,891
50% 49.5% 87,278 86,414
40% 40.2% 69,822 70,130
30% 30.3% 52,367 52,884
20% 20.4% 34,911 35,566
10% 10.1% 17,456 17,646
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6CL781RHVI7.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,737
Calibration 2     174,170
Calibration 3     174,123
ssj_ops@calibrated=174,147
100% 100.0% 174,147 174,199
90% 89.7% 156,732 156,188
80% 80.3% 139,317 139,842
70% 70.9% 121,903 123,500
60% 60.1% 104,488 104,661
50% 50.3% 87,073 87,568
40% 39.9% 69,659 69,467
30% 30.4% 52,244 52,901
20% 19.9% 34,829 34,604
10% 10.1% 17,415 17,586
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-6CL781RHVI7.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     169,294
Calibration 2     173,281
Calibration 3     173,312
ssj_ops@calibrated=173,296
100% 99.4% 173,296 172,254
90% 90.5% 155,967 156,766
80% 79.1% 138,637 137,107
70% 69.2% 121,307 119,871
60% 60.4% 103,978 104,695
50% 50.2% 86,648 86,978
40% 40.0% 69,319 69,287
30% 30.2% 51,989 52,412
20% 19.7% 34,659 34,216
10% 10.0% 17,330 17,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
