Huawei Technologies Co., Ltd RH2288H V2 SPECpower_ssj2008 = 2,716 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 8, 2014
Hardware Availability: Sep-2013 Software Availability: Jun-2013 Publication: May 7, 2014
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 98.6% 543,919 137 3,957
90% 89.6% 494,156 131 3,786
80% 80.4% 443,307 121 3,651
70% 69.9% 385,578 111 3,459
60% 60.2% 332,290 104 3,192
50% 50.1% 276,202 97.3 2,840
40% 39.8% 219,623 92.5 2,374
30% 29.8% 164,479 88.4 1,862
20% 20.1% 110,882 84.0 1,320
10% 9.9% 54,808 78.3 700
Active Idle 0 68.7 0
∑ssj_ops / ∑power = 2,716

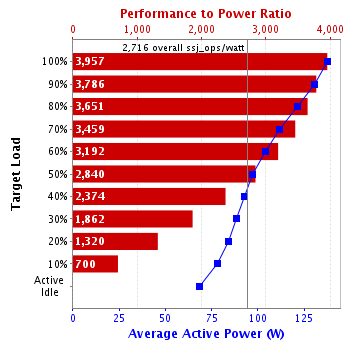

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2288H V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2609
CPU Characteristics: 4-Core, 2.4GHz, 10MB L3 Cache
CPU Frequency (MHz): 2400
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 8 (1 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 10 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 48
# and size of DIMM: 6 x 8 GB
Memory Details: 8GB 2Rx4 PC3L-10600R ECC RDIMM
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Huawei P/N PW98080438
Disk Drive: 1 x 300GB SSD 2.5" SATA Intel SA:G12224-603
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1 (64-bit)
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1875m -Xms1875m -Xmn1400m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0
JVM Affinity: start /affinity [F,F0]
JVM Instances: 2
JVM Initial Heap (MB): 1875
JVM Maximum Heap (MB): 1875
JVM Address Bits: 64
Boot Firmware Version: V372
Management Firmware Version: 5.88
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Tecal RH2288H
CPU Description: Intel Xeon E5-2670 v2
Memory amount (GB): 16
Software
Operating System (OS): Microsoft Windows Server 2008 Enterprise R2 SP1 x64
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE1.7.0)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91M412343
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: "2GB13002877-0010"
Date of Calibration: 23-Apr-2013
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.6.2-1746a8d2-20131204
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Temperature@lert
Model: TM-STD30
Driver Version: 3.1.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Use a 2 meters USB extension cable to connect to the controller. And placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Aggregate Electrical and Environmental Data
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
100% 137 24.0
90% 131 24.0
80% 121 23.9
70% 111 23.9
60% 104 23.9
50% 97.3 23.9
40% 92.5 23.9
30% 88.4 23.9
20% 84.0 23.9
10% 78.3 23.9
Active Idle 68.7 23.8
Line Standard Minimum Temperature (°C) Elevation (m)
220V / 50 Hz / 1 phase / 2 wires 23.8 101
See the Power/Temperature Details Report for additional details.
Aggregate Performance Data
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     543,301
Calibration 2     550,143
Calibration 3     553,024
ssj_ops@calibrated=551,584
100% 98.6% 551,584 543,919
90% 89.6% 496,425 494,156
80% 80.4% 441,267 443,307
70% 69.9% 386,109 385,578
60% 60.2% 330,950 332,290
50% 50.1% 275,792 276,202
40% 39.8% 220,633 219,623
30% 29.8% 165,475 164,479
20% 20.1% 110,317 110,882
10% 9.9% 55,158 54,808
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
