DEPO Computers DEPO Storm 3350V2 SPECpower_ssj2008 = 5,244 overall ssj_ops/watt
Test Sponsor: DEPO Computers SPEC License #: 4430 Test Method: Single Node
Tested By: DEPO Computers Test Location: Moscow, Russian Federation Test Date: Jul 14, 2014
Hardware Availability: Mar-2014 Software Availability: Jun-2013 Publication: Oct 7, 2014
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 232 23.5
Calibration 2 233 23.2
Calibration 3 233 23.0
100% 232 22.9
90% 217 22.8
80% 189 22.8
70% 176 22.8
60% 163 22.8
50% 151 22.7
40% 138 22.6
30% 128 22.5
20% 118 22.5
10% 107 22.4
Active Idle 97.1 22.4
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA
Model: WT310 Digital Power Meter
Serial Number: C2PH22077V
Connectivity: USB
Input Connection: Default
Metrology Institute: FBU "ROSTEST - MOSKVA"
Accredited by: FBU "ROSTEST - MOSKVA", Laboratory 551
Calibration Label: CK 0035201
Date of Calibration: 12-May-2014
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.6.3-83e231b9-20140326
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 25 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 219 300.0 1.15 2.0 0.921 232 0.4%
Calibration 2 218 300.0 1.16 2.0 0.922 233 0.4%
Calibration 3 217 300.0 1.16 2.0 0.921 233 0.4%
100% 218 300.0 1.16 2.0 0.922 232 0.4%
90% 218 300.0 1.09 2.0 0.913 217 0.4%
80% 218 300.0 0.970 2.0 0.895 189 0.5%
70% 217 300.0 0.917 2.0 0.884 176 0.5%
60% 218 300.0 0.862 2.0 0.870 163 0.5%
50% 218 300.0 0.809 2.0 0.854 151 0.6%
40% 218 300.0 0.758 2.0 0.836 138 0.6%
30% 217 300.0 0.724 2.0 0.815 128 0.6%
20% 218 300.0 0.683 2.0 0.793 118 0.7%
10% 218 300.0 0.641 2.0 0.768 107 0.7%
Active Idle 217 300.0 0.602 2.0 0.743 97.1 0.7%

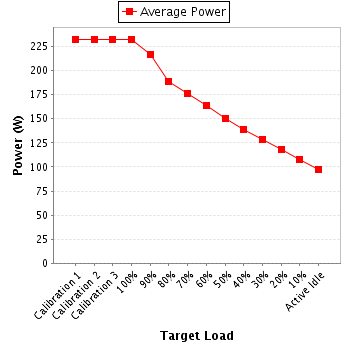

Power details for pwr1
